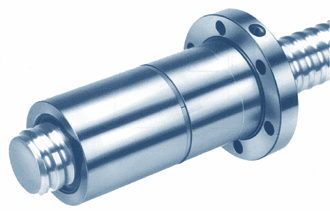

▶ STAR Ball Screw : Double Nut with Flange FDM-E-S |
With standard seals
With preload 7% or 10% C
For precision-rolled screws SN-R of
tolerance grade T5, T7, T9 and groundthread
screws SN-F of tolerance grade P1, P3, P5, (T7) |
|
|
d0 : nominal diameter P : lead(R=right-hand, L=left-hend) Dw : ball diameter i = number of ball track turns |
|
Size |
Part number |
Load ratings |
|
d0 x P x Dw- i |
dyn. |
stat. |
|
C(N) |
C0(N) |
|
16 x 5 R x 3-4 |
1502-0-1033 |
12300 |
16100 |
|
20 x 5 R x 3-4 |
1502-1-1023 |
14300 |
21500 |
|
25 x 5 R x 3-4 |
1502-2-1023 |
15900 |
27200 |
|
25 x 10 R x 3-4 |
1502-2-4023 |
15700 |
27000 |
|
32 x 5 R x 3.5-4 |
1502-3-1023 |
21600 |
40000 |
|
32 x 10 R x 3.969-5 |
1502-3-4033 |
31700 |
58300 |
|
40 x 5 R x 3.5-5 |
1502-4-1023 |
29100 |
64100 |
|
40 x 10 R x 6-4 |
1502-4-4033 |
50000 |
86400 |
|
40 x 10 R x 6-6 |
1502-4-4034 |
72100 |
132200 |
|
40 x 20 R x 6-3 |
1502-4-7033 |
37900 |
62800 |
|
50 x 5 R x 3.5-5 |
1502-5-1023 |
32000 |
81300 |
|
50 x 10 R x 6-4 |
1502-5-4033 |
55400 |
109000 |
|
50 x 10 R x 6-6 |
1502-5-4034 |
79700 |
166500 |
|
50 x 20 R x 6.5-5 |
1502-5-7034 |
32100 |
55800 |
|
63 x 10 R x 6-4 |
1502-6-4033 |
61800 |
140500 |
|
63 x 10 R x 6.6 |
1502-6-4034 |
88800 |
214300 |
|
63 x 20 R x 6.5-2 |
1502-6-7034 |
83900 |
190300 |
|
80 x 10 R x 6.5-6 |
1502-7-4024 |
108400 |
291700 |
|
80 x 20 R x 9-6 |
1502-7-7034 |
170900 |
403900 |
|
80 x 20 R x 12.7-6 |
1502-7-7024 |
262700 |
534200 |
|
100 x 10 R x 6.5-6 |
1502-8-4024 |
119500 |
371900 |
|
100 x 20 R x 12.7-6 |
1502-8-7024 |
295100 |
686400 |
|
125 x 10 R x 6.5-6 |
1502-9-4024 |
130600 |
468700 |
|
125 x 20 R x 12.7-6 |
1502-9-7024 |
326500 |
870400 | |
|
|
|
|
|
|
|
|
Size
d0 x P x Dw-i |
Dimensions (mm) |
Weight
m
(Kg) |
|
d1 |
d2 |
D1
f9 |
D5 |
Hole
pattern |
D6 |
D7 |
L |
L3 |
L4 |
L10 |
S |
|
16 x 5 R x 3-4 |
15.0 |
12.9 |
28 |
5.3 |
BB3 |
40 |
7 |
72 |
12 |
10 |
60 |
M6 |
0.33 |
|
20 x 5 R x 3-4 |
19.0 |
16.9 |
33 |
58 |
BB4 |
45 |
7 |
82 |
12 |
10 |
70 |
M6 |
0.45 |
|
25 x 5 R x 3-4 |
24.0 |
21.9 |
38 |
63 |
BB4 |
50 |
7 |
82 |
12 |
10 |
70 |
M6 |
0.53 |
|
25 x 10 R x 3-4 |
24.0 |
21.9 |
38 |
63 |
BB4 |
50 |
7 |
120 |
12 |
16 |
108 |
M6 |
0.70 |
|
32 x 5 R x 3.5-4 |
31.0 |
28.4 |
48 |
73 |
BB4 |
60 |
7 |
88 |
13 |
10 |
75 |
M6 |
0.84 |
|
32 x 10 R x 3.969-5 |
31.0 |
27.9 |
48 |
73 |
BB4 |
60 |
7 |
146 |
13 |
16 |
133 |
M6 |
1.22 |
|
40 x 5 R x 3.5-5 |
39.0 |
36.4 |
56 |
80 |
BB4 |
68 |
7 |
100 |
15 |
10 |
85 |
M8x1 |
1.13 |
|
40 x 10 R x 6-4 |
38.0 |
33.8 |
63 |
95 |
BB4 |
78 |
9 |
140 |
15 |
16 |
125 |
M8x1 |
2.25 |
|
40 x 10 R x 6-6 |
38.0 |
33.8 |
63 |
95 |
BB4 |
78 |
9 |
180 |
15 |
16 |
164 |
M8x1 |
2.83 |
|
40 x 20 R x 6-3 |
38.0 |
33.8 |
63 |
95 |
BB4 |
78 |
9 |
175 |
15 |
25 |
160 |
M8x1 |
2.66 |
|
50 x 5 R x 3.5-5 |
49.0 |
46.4 |
68 |
98 |
BB4 |
82 |
9 |
100 |
15 |
10 |
85 |
M8x1 |
1.60 |
|
50 x 10 R x 6-4 |
48.0 |
43.8 |
72 |
110 |
BB4 |
90 |
11 |
140 |
18 |
16 |
122 |
M8x1 |
2.74 |
|
50 x 10 R x 6.6 |
48.0 |
43.8 |
72 |
110 |
BB4 |
90 |
11 |
180 |
18 |
16 |
162 |
M8x1 |
3.39 |
|
50 x 20 R x 6.5-5 |
48.0 |
43.4 |
85 |
125 |
BB4 |
105 |
11 |
255 |
22 |
25 |
233 |
M8x1 |
6.71 |
|
63 x 10 R x 6-4 |
61.0 |
56.8 |
85 |
125 |
BB4 |
105 |
11 |
140 |
22 |
16 |
118 |
M8x1 |
3.53 |
|
63 x 10 R x 6-6 |
61.0 |
56.8 |
85 |
125 |
BB4 |
105 |
11 |
180 |
22 |
16 |
158 |
M8x1 |
4.32 |
|
63 x 20 R x 6.5-5 |
61.0 |
56.4 |
95 |
140 |
BB4 |
118 |
14 |
255 |
22 |
25 |
233 |
M8x1 |
8.65 |
|
80 x 10 R x 6.5-6 |
78.0 |
73.3 |
105 |
150 |
BB4 |
125 |
14 |
190 |
22 |
16 |
168 |
M8x1 |
6.35 |
|
80 x 20 R x 9-6 |
77.0 |
70.8 |
125 |
180 |
BB5 |
152 |
|
