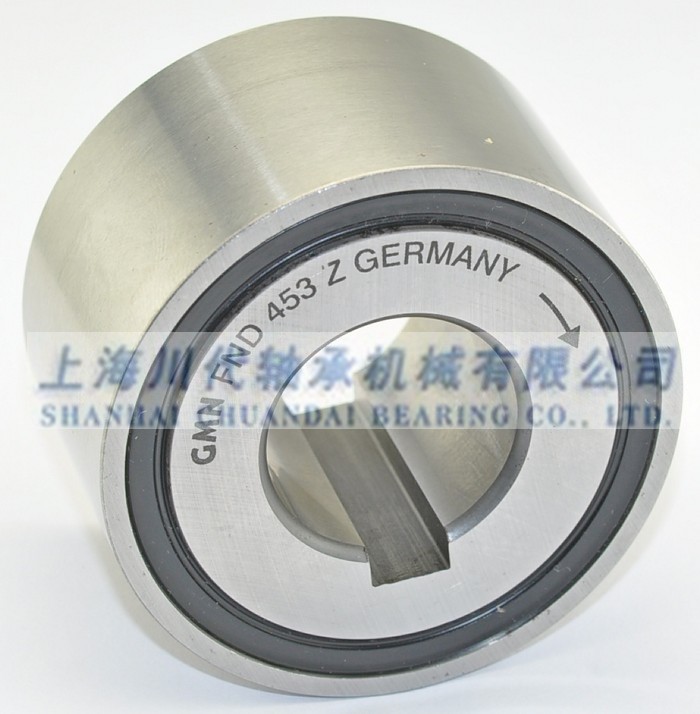

| 超精密单向承FND453 FND442 FND459 FND437 FND470 FS8073 |
|
上海川代轴承机械有限公司 新闻动态 2025-12-13
|
|
part no.: 300751
Dimensions
|
d |
= 25 mm (0.9843 inch) |
|
D |
= 58 mm (2.2835 inch) |
|
B |
= 34 mm (1.3386 inch) |
|
Keyway |
: nach DIN 6885 Blatt 1 |
|
b |
= 8 mm (0.3150 inch) |
|
t |
= 3.3 mm (0.1299 inch) |
Tolerances
| Hub |
D = H6 |
|
| Shaft |
d = js6 (k5) |
|
Data
| nominal torque M |
|
= 333 Nm (245.421 lbft) |
| max. Idling Speed n |
|
= 1200 rpm |
| Sprags nK |
|
= 51 |
| Ball Load Capacities |
Cdyn |
= 8690 N (1,955.250 lbs) |
|
Cstat |
= 5640 N (1,269.000 lbs) |
| Roller Load Capacities |
Cdyn |
= 9460 N (2,128.500 lbs) |
|
Cstat |
= 10860 N (2,443.500 lbs) |
| weight |
|
: 0.461 kg (1.015 lb) |
| Springsystem |
|
: Mäanderfeder |
| Nr. |
Bestellbezeichnung |
Wellend. d [mm] |
Aussend. D [mm] |
Breite b [mm] |
Drehmoment M [Nm] |
| 300737 |
FND437
|
15 |
41 |
34 |
158 |
| 300741 |
FND437
gefettete Dichtungen |
15 |
41 |
34 |
158 |
| 300738 |
FND437 Z
|
15 |
41 |
34 |
137 |
| 300742 |
FND437 Z
gefettete Dichtungen |
15 |
41 |
34 |
137 |
| 305870 |
FNDS437 Z
mit NBR Ummantelung |
15 |
51 |
34 |
137 |
| 300739 |
FNDS437 Z
Abweichende Bohrung 16 mm |
16 |
41 |
34 |
137 |
| 300743 |
FND442
|
20 |
46 |
34 |
207 |
| 300749 |
FND442
gefettete Dichtungen |
20 |
46 |
34 |
207 |
| 300744 |
FND442Z
|
20 |
46 |
34 |
178 |
| 300746 |
FNDS442
Für Möbelindustrie, d = 22 mm |
22 |
46 |
34 |
207 |
| 300751 |
FND453
|
25 |
58 |
34 |
333 |
| 300754 |
FND453gefettete Dichtungen |
25 |
58 |
34 |
333 |
| 300757 |
FND453 Z
gefettet |
25 |
58 |
34 |
281 |
| 300755 |
FND453 Z
MIT SILIKONOEL |
25 |
58 |
34 |
281 |
| 300752 |
FND453 Z
|
25 |
58 |
34 |
281 |
| 300762 |
FND459
gefettete Dichtungen |
30 |
64 |
34 |
414 |
| 300758 |
FND459
|
30 |
64 |
34 |
414 |
| 300760 |
FND459 Z
|
30 |
64 |
34 |
357 |
| 300765 |
FND470
|
40 |
75 |
34 |
583 |
| 306043 |
FND470
gefettet Klübersynth HB 72-102 |
40 |
75 |
34 |
583 |
| Nr. |
Bestellbezeichnung |
Wellend. d [mm] |
Aussend. D [mm] |
Breite b [mm] |
Drehmoment M [Nm] |
| 300771 |
FND 470
gefettete Dichtungen |
40 |
75 |
34 |
583 |
| 300770 |
FND470 Z
gefettete Dichtungen |
40 |
75 |
34 |
502 |
| 300766 |
FND470 Z
|
40 |
75 |
34 |
502 |
| 300768 |
FND470 Z L
|
40 |
75 |
34 |
502 |
| 306098 |
FS8073 Z 19
|
40 |
125 |
80 |
2300 | |
超精密单向承FND453 FND442 FND459 FND437 FND470 FS8073现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
