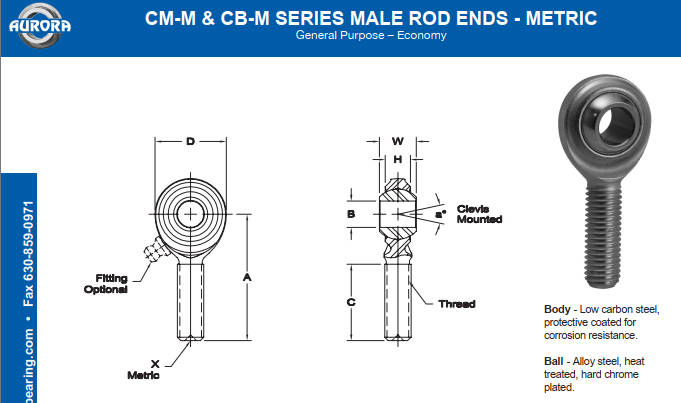

CM-M3、CM-M5、CM-M6、CM-M8、CM-M10、CM-M12、CM-M14、CM-M16、CM-M18关节

ROD END NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign. Angle

Ultimate

Radial

Static

Load

Capacity

Newtons

Approx.

 Brg. Wt

. Grams

Right

Hand

Left

Hand

B

+ .065

- .013

W

± .13

H

Ref.

A

± .40

D

Ref.

Ball Dia.

 Ref.

C

± 1.00

Thread

a1

a3

a4

CM-M3

CB-M3

3

6

4.25

27

12.50

7.93

15

M3 X 0.5

23

34

71

1,775

7

CM-M5

CB-M5

5

8

5.75

33

16.00

11.10

20

M5 X 0.8

22

30

64

5,168

12

CM-M6

CB-M6

6

9

6.25

36

19.00

12.70

22

M6 X 1.0

23

31

65

7,296

18

CM-M8

CB-M8

8

12

8.00

42

22.25

15.88

25

M8 X 1.25

28

38

59

13,591

31

CM-M10

CB-M10

10

14

9.50

48

27.00

19.05

29

M10 X 1.5

26

35

57

21,024

68

CM-M12

CB-M12

12

16

10.75

54

30.00

22.23

33

M12 X 1.75

27

34

57

25,819

78

CM-M14

CB-M14

14

19

12.25

60

34.75

25.40

36

M14 X 2.0

30

39

55

35,214

118

CM-M16

CB-M16

16

21

12.75

66

38.00

28.58

40

M16 X 2.0

33

42

59

37,391

173

CM-M18

CB-M18

18

23

14.75

72

42.00

31.75

44

M18 X 1.5

30

37

56

47,903

260

CM-M20

CB-M20

20

25

16.25

78

46.00

34.93

47

M20 X 1.5

29

36

55

57,101

290
