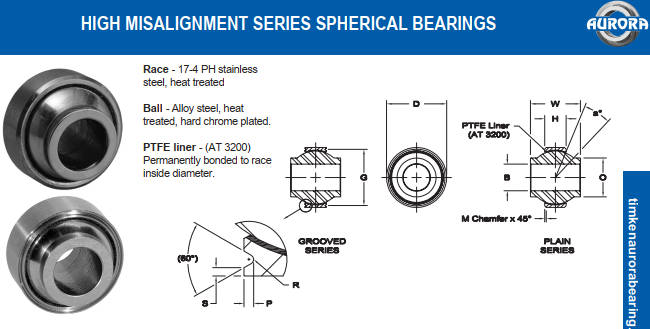

HAB-3TG、HAB-4TG、HAB-5TG、HAB-6TG、HAB-7TG、HAB-8TG、HAB-10TG、HAB-12TG关节

BEARING NO.

DIMENSIONS IN INCHES

a°

Radial

Static

Limit

Load

Capacity

Lbs.

Approx.

B

D

W

H

M

O

P

S

G

R

Ball

Misalign.

Brg. Wt.

Grooved

Plain

+ .0000

+ .0000

+ .000

± .005

Ref.

Ref.

+ .000

Min.

+ .000

+ .002

Dia.

Angle

Lbs.

- .0005

- .0005

- .005

- .010

- .008

- .005

Ref.

HAB-3TG

HAB-3T

.1900

.5625

.500

.210

.020

.317

.025

.010

.494

.010

.437

17

6,334

.02

HAB-4TG

HAB-4T

.2500

.7400

.593

.255

.020

.390

.025

.010

.674

.010

.593

24

7,560

.04

HAB-5TG-3

HAB-5T-3

.3125

.6875

.625

.255

.020

.418

.025

.010

.629

.010

.593

20

15,033

.03

HAB-5TG

HAB-5T

.3125

.9060

.813

.345

.030

.512

.025

.010

.840

.010

.781

23

16,975

.08

HAB-6TG

HAB-6T

.3750

.9060

.813

.345

.030

.512

.025

.010

.840

.010

.781

23

16,975

.07

HAB-7TG

HAB-7T

.4375

1.0000

.875

.345

.030

.618

.025

.010

.934

.010

.875

22

19,018

.09

HAB-8TG

HAB-8T

.5000

1.1250

.937

.401

.030

.730

.025

.010

1.059

.010

1.000

20

25,263

.13

HAB-10TG

HAB-10T

.6250

1.3750

1.200

.567

.030

.856

.035

.020

1.279

.015

1.250

20

44,651

.25

HAB-12TG

HAB-12T

.7500

1.5625

1.280

.620

.035

.970

.035

.020

1.467

.015

1.375

18

53,707

.33

HAB-14TG

HAB-14T

.8750

1.7500

1.400

.630

.039

1.140

.035

.020

1.654

.015

1.531

18

72,424

.44
