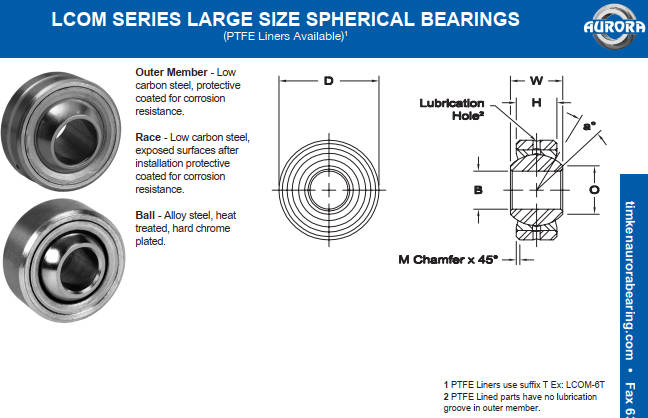

LCOM-3、LCOM-4、LCOM-5、LCOM-6、LCOM-7、LCOM-8、LCOM-10、LCOM-12、LCOM-16关节

BEARING

NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Radial

Static

Limit

Load

Capacity

Lbs.

Approx.

Brg.

Wt.

Lbs.

B

+ .0015

- .0005

D

+ .0000

- .0007

H

± .005

W

± .005

O

Flat Dia Ref.

M

Chamfer

 Ref.

Ball Dia

Ref.

LCOM-3

.1900

.6250

.187

.281

.293

.016

.406

16

3,037

.02

LCOM-4

.2500

.7500

.281

.375

.331

.016

.500

14

5,620

.04

LCOM-5

.3125

.8750

.313

.437

.448

.016

.625

14

7,825

.05

LCOM-6

.3750

1.0000

.375

.500

.516

.016

.719

12

10,785

.08

LCOM-7

.4375

1.1875

.437

.562

.586

.032

.812

11

14,194

.12

LCOM-8

.5000

1.3125

.531

.687

.637

.044

.937

12

19,902

.18

LCOM-10

.6250

1.5625

.687

.875

.802

.044

1.187

12

32,619

.33

LCOM-12

.7500

2.2500

.937

1.250

1.038

.044

1.625

15

60,905

.97

LCOM-12-1

.7500

1.8750

.687

.875

.978

.044

1.312

10

36,054

.52

LCOM-16

1.0000

2.3750

.875

1.125

1.345

.062

1.750

10

61,250

.94

LCOM-19

1.1875

2.6250

1.000

1.250

1.562

.085

2.000

8.5

80,000

1.27

LCOM-24

1.5000

3.2500

1.250

1.500

2.000

.085

2.500

7

125,000

2.38

LCOM-30

1.8750

4.0000

1.313

1.625

2.521

.125

3.000

7

157,560

3.75

BEARING

NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

 Angle

Radial

Static

Limit

Load

Capacity

Newtons

Approx.

 Brg.

Wt.

Grams

B

+ .038

- .013

D

+ .000

- .018

H

± .13

W

± .13

O

Flat Dia

Ref.

M

Chamfer

Ref.

Ball Dia

Ref.

LCOM-3

4.826

15.88

4.75

7.14

7.44

.41

10.31

16

13,509

9

LCOM-4

6.350

19.05

7.14

9.53

8.41

.41

12.70

14

24,998

18

LCOM-5

7.938

22.23

7.95

11.10

11.38

.41

15.88

14

34,806

22

LCOM-6

9.525

25.40

9.53

12.70

13.11

.41

18.26

12

47,972

36

LCOM-7

11.113

30.16

11.10

14.27

14.88

.81

20.62

11

63,135

54

LCOM-8

12.700

33.34

13.49

17.45

16.18

1.12

23.80

12

88,524

82

LCOM-10

15.875

39.69

17.45

22.23

20.37

1.12

30.15

12

145,089

150

LCOM-12

19.050

57.15

23.80

31.75

26.37

1.12

41.28

15

270,905

440

LCOM-12-1

19.050

47.63

17.45

22.23

24.84

1.12

33.32

10

160,368

236

LCOM-16

25.400

60.33

22.23

28.56

34.16

1.57

44.45

10

272,440

426

LCOM-19

30.163

66.68

25.40

31.75

39.67

2.16

50.80

8.5

355,840

576

LCOM-24

38.100

82.55

31.75

38.10

50.80

2.16

63.50

7

556,000

1,080

LCOM-30

47.625

101.60

33.35

41.28

64.03

3.18

76.20

7

700,826

1,701
