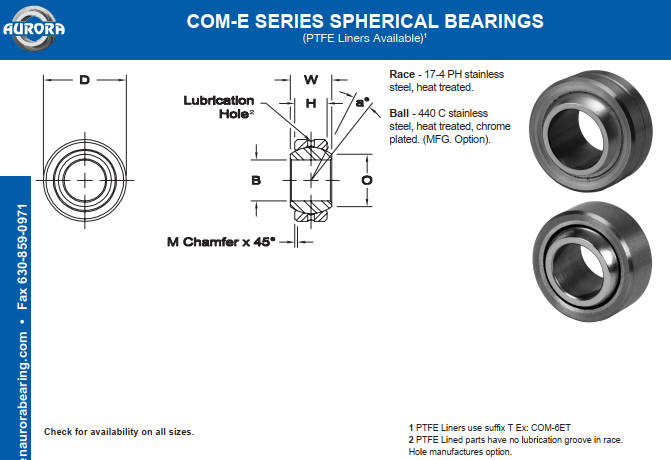

COM-3E、COM-4E、COM-5E、COM-6E、COM-7E、COM-8E、COM-9E、COM-10E关节

BEARING

NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Radial

Static

Limit

Load

Capacity

Lbs.

Approx.

 Brg.

Wt.

Lbs.

B

+ .0015

- .0005

D

+ .0000

- .0007

H

± .005

W

± .005

O

Flat Dia

Ref.

M

Chamfer

 Ref.

Ball Dia

Ref.

COM-3E

.1900

.5625

.218

.281

.293

.015

.406

11

4,875

.01

COM-4E

.2500

.6562

.250

.343

.364

.022

.500

13.5

7,425

.02

COM-5E

.3125

.7500

.281

.375

.419

.032

.562

12

9,713

.03

COM-6E

.3750

.8125

.312

.406

.475

.032

.625

10

12,600

.04

COM-7E

.4375

.9062

.343

.437

.530

.032

.687

8

14,180

.05

COM-8E

.5000

1.0000

.390

.500

.600

.032

.781

9.5

19,875

.07

COM-9E

.5625

1.0937

.437

.562

.670

.032

.875

9.5

24,945

.09

COM-10E

.6250

1.1875

.500

.625

.739

.032

1.000

8.5

28,438

.11

COM-12E

.7500

1.4375

.593

.750

.920

.044

1.187

9

47,880

.20

COM-14E

.8750

1.5625

.703

.875

.980

.044

1.312

9.5

62,940

.26

COM-16E

1.0000

1.7500

.797

1.000

1.118

.044

1.500

10

82,800

.39

BEARING

NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

 Angle

Radial

Static

Limit

Load

Capacity

Newtons

Approx.

 Brg.

 Wt.

 Grams

B

+ .038

- .013

D

+ .000

- .018

H

± .13

W

± .13

O

Flat Dia

Ref.

M

Chamfer

 Ref.

Ball Dia

 Ref.

COM-3E

4.826

14.29

5.54

7.14

7.44

.38

10.31

11

21,701

6

COM-4E

6.350

16.67

6.35

8.71

9.25

.56

12.70

13.5

33,027

10

COM-5E

7.938

19.05

7.14

9.53

10.64

.81

14.27

12

43,206

14

COM-6E

9.525

20.64

7.92

10.31

12.06

.81

15.88

10

56,042

17

COM-7E

11.113

23.02

8.71

11.10

13.46

.81

17.45

8

63,073

21

COM-8E

12.700

25.40

9.91

12.70

15.24

.81

19.84

9.5

88,402

29

COM-9E

14.288

27.78

11.10

14.27

17.02

.81

22.23

9.5

110,956

39

COM-10E

15.875

30.16

12.70

15.88

18.77

.81

25.40

8.5

126,492

50

COM-12E

19.050

36.51

15.06

19.05

23.37

1.12

30.15

9

212,988

93

COM-14E

22.225

39.69

17.86

22.23

24.89

1.12

33.32

9.5

279,963

119

COM-16E

25.400

44.45

20.24

25.40

28.40

1.12

38.10

10

368,306

175
