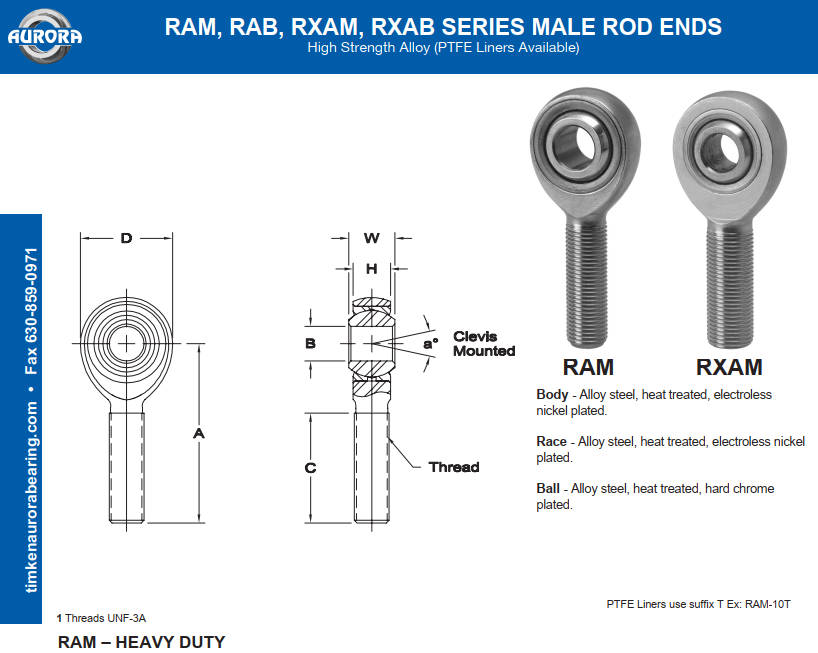

RAM-6、RAM-7、RAM-8、RAM-10、RAM-12关节轴承

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

Brg.

Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

- .0005

W

+ .000

- .005

H

± .005

A

± .010

D

+ .000

- .020

Ball Dia

. Ref.

C

+ .062

- .031

Thread

UNJF-3A

RAM-3

RAB-3

.1900

.312

.250

1.250

.625

.437

.750

10-321

13

2,851

.03

RAM-4

RAB-4

.2500

.375

.281

1.562

.750

.500

1.000

1/4-28

16

5,260

.04

RAM-5

RAB-5

.3125

.437

.344

1.875

.875

.625

1.187

5/16-24

14

7,125

.07

RAM-6

RAB-6

.3750

.500

.406

1.938

1.000

.719

1.187

3/8-24

12

8,939

.11

RAM-7

RAB-7

.4375

.562

.437

2.125

1.125

.812

1.312

7/16-20

14

9,653

.16

RAM-8

RAB-8

.5000

.625

.500

2.438

1.312

.937

1.437

1/2-20

12

15,500

.25

RAM-10

RAB-10

.6250

.750

.562

2.625

1.500

1.125

1.562

5/8-18

16

17,148

.38

RAM-10-12

RAB-10-12

.6250

.875

.687

2.875

1.750

1.312

1.687

3/4-16

14

27,021

.60

RAM-12

RAB-12

.7500

.875

.687

2.875

1.750

1.312

1.687

3/4-16

14

27,021

.60

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

 Brg.

Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

- .0005

W

+ .000

- .005

H

± .005

A

± .010

D

+ .000

- .020

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNJF-3A

RXAM-3

RXAB-3

.1900

.312

.250

1.562

.750

.437

1.000

1/4-28

10

5,260

.04

RXAM-4

RXAB-4

.2500

.375

.281

1.875

.875

.500

1.187

5/16-24

13

8,452

.07

RXAM-5

RXAB-5

.3125

.437

.344

1.938

1.000

.625

1.187

3/8-24

12

12,978

.11

RXAM-6

RXAB-6

.3750

.500

.406

2.125

1.125

.719

1.312

7/16-20

10

17,508

.16

RXAM-7

RXAB-7

.4375

.562

.437

2.438

1.312

.812

1.437

1/2-20

12

22,760

.25

RXAM-8

RXAB-8

.5000

.625

.500

2.625

1.500

.937

1.562

5/8-18

10

30,579

.38

RXAM-10

RXAB-10

.6250

.750

.562

2.875

1.750

1.125

1.687

3/4-16

13

39,674

.60
