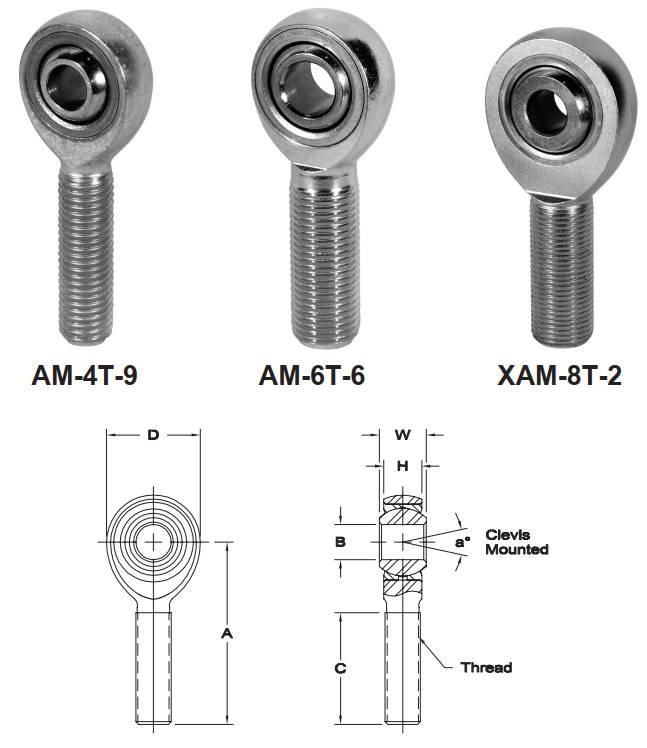

AM-6T-15、AM-6T-7、XAM-8T-11、AM-12T-22 关节

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

Brg.

Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

- .0005

W

+ .000

- .005

H

± .005

A

± .015

D

± .010

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-3A

AM-4T-9

AB-4T-9

.2500

.375

.281

1.562

.740

.500

1.000

5/16-24

16

6,158

.06

AM-6T-6

AB-6T-6

.3750

.500

.406

1.938

1.000

.719

1.219

1/2-20

12

9,544

.15

AM-6T-7

AB-6T-7

.3750

.625

.500

2.438

1.312

.937

1.500

5/8-18

12

16,238

.32

AM-6T-15

AB-6T-15

.3750

.625

.500

2.438

1.312

.937

1.500

1/2-20

12

16,238

.28

XAM-8T-2

XAB-8T-2

.5000

.750

.562

2.875

1.750

1.125

1.750

3/4-16

13

40,572

.60

XAM-8T-10

XAB-8T-10

.5000

.750

.562

2.625

1.750

1.125

1.375

5/8-18

13

38,635

.52

XAM-8T-11

XAB-8T-11

.5000

.750

.562

2.625

1.500

1.125

1.625

5/8-18

16

17,955

.42

AM-12T-22

AB-12T-22

.7500

.875

.687

2.875

1.750

1.312

1.750

7/8-14

14

28,081

.72
