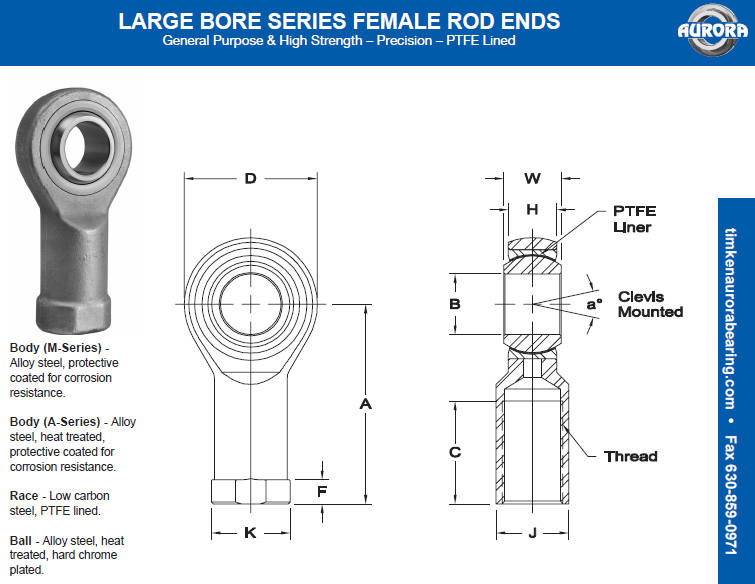

MW-20T、MW-24T、MW-32T、AW-20T、AW-24T、AW-32T关节轴承

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

 Brg.

Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

-.0005

W

± .005

H

± .020

A

± .040

D

± .030

K

± .045

J

± .030

F

± .030

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-2B

MW-20T

MG-20T

1.2500

1.187

1.000

4.125

2.750

1.625

1.500

.500

2.000

2.125

1 1/4-12

9.0

31,480

2.13

MW-24T

MG-24T

1.5000

1.375

1.125

5.375

3.500

2.250

2.000

.875

2.312

2.625

1 1/2-12

8.75

66,264

6.50

MW-32T

MG-32T

2.0000

1.750

1.437

8.000

5.010

3.155

2.750

2.062

2.937

4.000

2-121

7.5

163,634

15.00

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign

. Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

 Brg.

Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0015

-.0005

W

± .005

H

± .020

A

± .040

D

± .030

K

± .045

J

± .030

F

± .030

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-2B

AW-20T

AG-20T

1.2500

1.187

1.000

4.125

2.750

1.625

1.500

.500

2.000

2.125

1 1/4-12

9.0

65,047

2.13

AW-24T

AG-24T

1.5000

1.375

1.125

5.375

3.500

2.250

2.000

.875

2.312

2.625

1 1/2-12

8.75

115,610

6.50

AW-32T

AG-32T

2.0000

1.750

1.437

8.000

5.010

3.155

2.750

2.062

2.937

4.000

2-121

7.5

280,740

15.00
