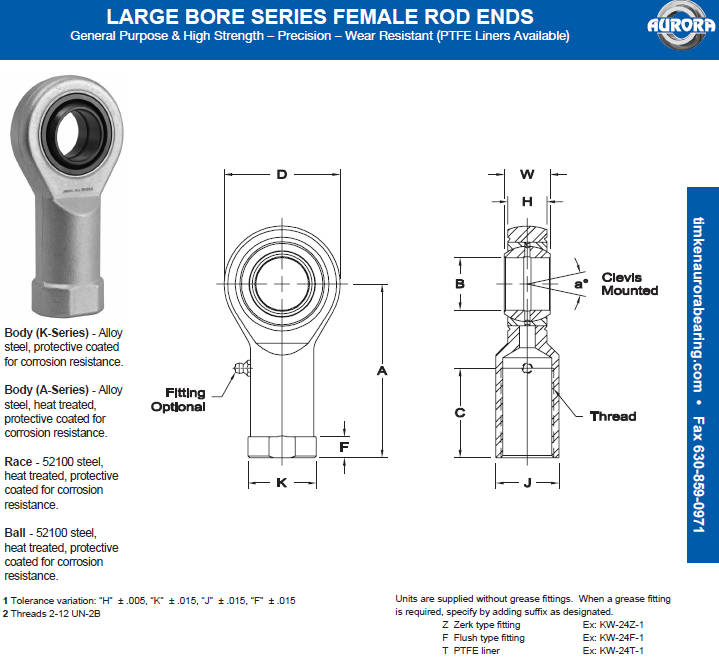

KW-20-1、KW-24-1、KW-32-1 关节

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

 Brg. Wt.

 Lbs.

Right

Hand

Left

Hand

B

+ .0000

-.0005

W

+ .000

- .005

H

± .020

A

± .040

D

± .030

K

± .045

J

± .030

F

± .030

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-2B

KW-20-1

KG-20-1

1.2500

1.093

.937

4.125

2.750

1.625

1.500

.500

1.795

2.125

1 1/4-12

7.0

44,500

2.125

KW-24-1

KG-24-1

1.5000

1.312

1.125

5.375

3.500

2.250

2.000

.875

2.155

2.625

1 1/2-12

6.5

64,770

6.50

KW-32-1

KG-32-1

2.0000

1.750

1.500

8.000

5.010

3.155

2.750

2.062

2.875

4.000

2-122

6.0

153,528

15.00

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

Angle

Ultimate

Radial

Static

Load

Capacity

Lbs.

Approx.

Brg. Wt.

 Lbs.

Right

Hand

Left

Hand

B

+ .0000

-.0005

W

+ .000

- .005

H

± .020

A

± .040

D

± .030

K

± .045

J

± .030

F

± .030

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-2B

AW-20-1

AG-20-1

1.2500

1.093

.937

4.125

2.750

1.625

1.500

.500

1.795

2.125

1 1/4-12

7.0

79,728

2.13

AW-24-1

AG-24-1

1.5000

1.312

1.125

5.375

3.500

2.250

2.000

.875

2.155

2.625

1 1/2-12

6.5

126,450

6.50

AW-32-1

AG-32-1

2.0000

1.750

1.500

8.000

5.010

3.155

2.750

2.062

2.875

4.000

2-122

6.0

225,924

15.00
