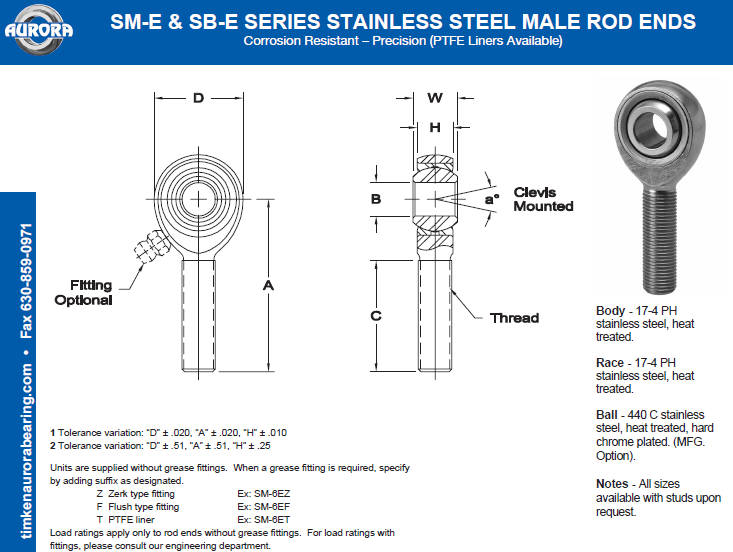

ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign
. Angle |
Ultimate
Radial
Static
Load
Capacity
Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0015
- .0005 |
W
+ .000
- .005 |
H
± .005 |
A
± .015 |
D
± .010 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
SM-3E |
SB-3E |
.1900 |
.312 |
.250 |
1.250 |
.625 |
.437 |
.750 |
10-32 |
13 |
2,199 |
.03 |
|
SM-4E |
SB-4E |
.2500 |
.375 |
.281 |
1.562 |
.750 |
.500 |
1.000 |
1/4-28 |
16 |
4,058 |
.04 |
|
SM-5E |
SB-5E |
.3125 |
.437 |
.344 |
1.875 |
.875 |
.625 |
1.250 |
5/16-24 |
14 |
5,929 |
.07 |
|
SM-6E |
SB-6E |
.3750 |
.500 |
.406 |
1.938 |
1.000 |
.719 |
1.250 |
3/8-24 |
12 |
7,363 |
.11 |
|
SM-7E |
SB-7E |
.4375 |
.562 |
.437 |
2.125 |
1.125 |
.812 |
1.375 |
7/16-20 |
14 |
7,934 |
.16 |
|
SM-8E |
SB-8E |
.5000 |
.625 |
.500 |
2.438 |
1.312 |
.937 |
1.500 |
1/2-20 |
12 |
12,527 |
.25 |
|
SM-10E |
SB-10E |
.6250 |
.750 |
.562 |
2.625 |
1.500 |
1.125 |
1.625 |
5/8-18 |
16 |
13,851 |
.38 |
|
SM-12E |
SB-12E |
.7500 |
.875 |
.687 |
2.875 |
1.750 |
1.312 |
1.750 |
3/4-16 |
14 |
21,664 |
.60 |
|
SM-16E |
SB-16E |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.875 |
2.125 |
1 1/4-12 |
17 |
72,947 |
2.41 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
a°
Misalign.
Angle |
Ultimate
Radial
Static
Load
Capacity
Newtons |
Approx.
Brg. Wt.
Grams |
|
Right
Hand |
Left
Hand |
B
+ .038
- .013 |
W
+ .00
- .13 |
H
± .13 |
A
± .38 |
D
± .25 |
Ball Dia.
Ref. |
C
+ 1.57
- .79 |
Thread
UNF-3A |
|
SM-3E |
SB-3E |
4.826 |
7.92 |
6.35 |
31.75 |
15.88 |
11.10 |
19.05 |
10-32 |
13 |
9,781 |
13 |
|
SM-4E |
SB-4E |
6.350 |
9.53 |
7.14 |
39.67 |
19.05 |
12.70 |
25.40 |
1/4-28 |
16 |
18,050 |
20 |
|
SM-5E |
SB-5E |
7.938 |
11.10 |
8.74 |
47.63 |
22.23 |
15.88 |
31.75 |
5/16-24 |
14 |
26,372 |
33 |
|
SM-6E |
SB-6E |
9.525 |
12.70 |
10.31 |
49.23 |
25.40 |
18.26 |
31.75 |
3/8-24 |
12 |
32,751 |
51 |
|
SM-7E |
SB-7E |
11.113 |
14.27 |
11.10 |
53.98 |
28.58 |
20.62 |
34.93 |
7/16-20 |
14 |
35,290 |
73 |
|
SM-8E |
SB-8E |
12.700 |
15.88 |
12.70 |
61.93 |
33.32 |
23.80 |
38.10 |
1/2-20 |
12 |
55,720 |
113 |
|
SM-10E |
SB-10E |
15.875 |
19.05 |
14.27 |
66.68 |
38.10 |
28.58 |
41.28 |
5/8-18 |
16 |
61,609 |
173 |
|
SM-12E |
SB-12E |
19.050 |
22.23 |
17.45 |
73.03 |
44.45 |
33.32 |
44.45 |
3/4-16 |
14 |
96,361 |
273 |
|
SM-16E |
SB-16E |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
47.63 |
53.98 |
1 1/4-12 |
17 |
324,468 |
1,091 |
|
