CM-5ET、CM-6ET、CM-7ET、CM-8ET、CM-10ET、CM-12ET关节轴承

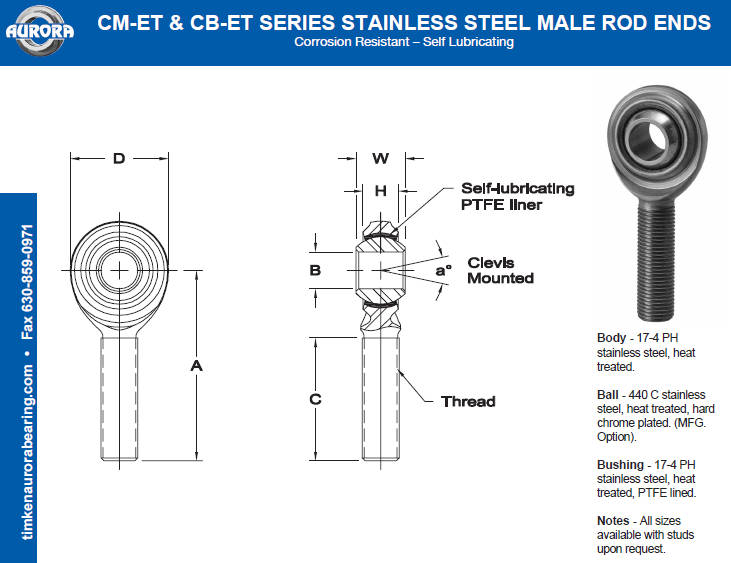

ROD END NO.		DIMENSIONS IN INCHES									a°  Misalign.  Angle	Ultimate  Radial  Static  Load  Capacity  Lbs.	Approx.  Brg. Wt.  Lbs.
Right  Hand	Left  Hand	B + .0015 - .0005	W + .000 - .005	H Ref.	A ± .015	D Ref.	Ball Dia . Ref.	C + .062 - .031		Thread  UNF-3A  (1)
CM-5ET	CB-5ET	.3125	.437	.312	1.875	.875	.593	1.250		5/16-24	18	6,451	.07
CM-6ET	CB-6ET	.3750	.500	.359	1.938	1.000	.687	1.250		3/8-24	18	8,627	.11
CM-7ET	CB-7ET	.4375	.562	.406	2.125	1.125	.781	1.375		7/16-20	17	9,370	.15
CM-8ET	CB-8ET	.5000	.625	.453	2.438	1.312	.875	1.500		1/2-20	16	15,130	.24
CM-10ET	CB-10ET	.6250	.750	.484	2.625	1.500	1.062	1.625		5/8-18	22	16,922	.36
CM-12ET	CB-12ET	.7500	.875	.593	2.875	1.750	1.250	1.750		3/4-16	20	25,549	.57
ROD END NO.		DIMENSIONS IN MILLIMETERS									a°  Misalign.  Angle	Ultimate  Radial  Static  Load  Capacity  Newtons	Approx.  Brg. Wt.  Grams
Right  Hand	Left  Hand	B + .038 - .013	W + .00 - .13	H Ref.	A + .38	D Ref.	Ball Dia . Ref.	C + 1.57 - .79	Thread  UNF-3A  (1)
CM-5ET	CB-5ET	7.938	11.10	7.92	47.63	22.23	15.06	31.75	5/16-24		18	28,693	32
CM-6ET	CB-6ET	9.525	12.70	9.12	49.23	25.40	17.45	31.75	3/8-24		18	38,371	50
CM-7ET	CB-7ET	11.113	14.27	10.31	53.98	28.58	19.84	34.93	7/16-20		17	41,676	68
CM-8ET	CB-8ET	12.700	15.88	11.50	61.93	33.32	22.23	38.10	1/2-20		16	67,299	109
CM-10ET	CB-10ET	15.875	19.05	12.29	66.68	38.10	26.97	41.28	5/8-18		22	75,271	163
CM-12ET	CB-12ET	19.050	22.23	15.06	73.03	44.45	31.75	44.45	3/4-16		20	113,642	259
