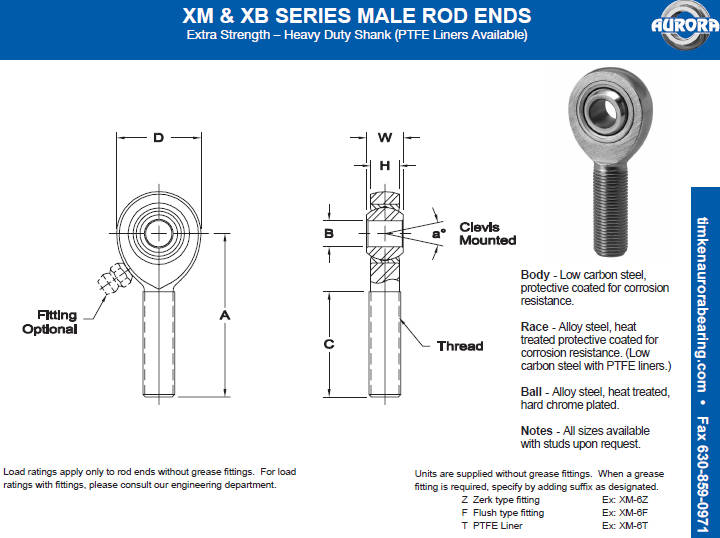

| XM-3、XM-4、XM-5、XM-6、XM-7、XM-8、XM-10、XM-12、XM-14关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-10
|
 |
|
ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate Radial
Static Load
Capacity Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand |
B
+ .0015
- .0005 |
W
+ .000
- .005 |
H
± .005 |
A
± .015 |
D
± .010 |
Ball Dia
. Ref. |
C
+ .062
- .031 |
Thread
UNF-3A |
|
XM-3 |
XB-3 |
.1900 |
.312 |
.250 |
1.562 |
.750 |
.437 |
1.000 |
1/4-28 |
10 |
2,158 |
.04 |
|
XM-4 |
XB-4 |
.2500 |
.375 |
.281 |
1.875 |
.875 |
.500 |
1.250 |
5/16-24 |
13 |
3,467 |
.07 |
|
XM-5 |
XB-5 |
.3125 |
.437 |
.344 |
1.938 |
1.000 |
.625 |
1.250 |
3/8-24 |
12 |
5,323 |
.11 |
|
XM-6 |
XB-6 |
.3750 |
.500 |
.406 |
2.125 |
1.125 |
.719 |
1.375 |
7/16-20 |
10 |
7,180 |
.16 |
|
XM-7 |
XB-7 |
.4375 |
.562 |
.437 |
2.438 |
1.312 |
.812 |
1.500 |
1/2-20 |
12 |
9,620 |
.25 |
|
XM-8 |
XB-8 |
.5000 |
.625 |
.500 |
2.625 |
1.500 |
.937 |
1.625 |
5/8-18 |
10 |
12,807 |
.38 |
|
XM-10 |
XB-10 |
.6250 |
.750 |
.562 |
2.875 |
1.750 |
1.125 |
1.750 |
3/4-16 |
13 |
16,565 |
.60 |
|
XM-12 |
XB-12 |
.7500 |
.875 |
.687 |
3.375 |
2.000 |
1.312 |
1.875 |
7/8-14 |
12 |
22,803 |
.92 |
|
XM-12-1 |
XB-12-1 |
.7500 |
.875 |
.687 |
3.375 |
2.000 |
1.312 |
1.875 |
3/4-16 |
12 |
22,803 |
.92 |
|
XM-14-1 |
XB-14-1 |
.8750 |
.875 |
.687 |
3.375 |
2.000 |
1.312 |
1.875 |
7/8-14 |
12 |
22,803 |
.92 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
a° Misalign.
Angle |
Ultimate Radial
Static Load
Capacity
Newtons |
Approx.
Brg. Wt.
Grams |
|
Right
Hand |
Left
Hand |
B
+ .038
- .013 |
W
+ .00
- .13 |
H
± .13 |
A
± .38 |
D
± .25 |
Ball Dia
. Ref. |
C
+ 1.57
- .79 |
Thread
UNF-3A |
|
XM-3 |
XB-3 |
4.826 |
7.92 |
6.35 |
39.67 |
19.05 |
11.10 |
25.40 |
1/4-28 |
10 |
9,600 |
20 |
|
XM-4 |
XB-4 |
6.350 |
9.53 |
7.14 |
47.63 |
22.23 |
12.70 |
31.75 |
5/16-24 |
13 |
15,425 |
33 |
|
XM-5 |
XB-5 |
7.938 |
11.10 |
8.74 |
49.23 |
25.40 |
15.88 |
31.75 |
3/8-24 |
12 |
23,682 |
51 |
|
XM-6 |
XB-6 |
9.525 |
12.70 |
10.31 |
53.98 |
28.58 |
18.26 |
34.93 |
7/16-20 |
10 |
31,938 |
73 |
|
XM-7 |
XB-7 |
11.113 |
14.27 |
11.10 |
61.93 |
33.32 |
20.62 |
38.10 |
1/2-20 |
12 |
42,794 |
113 |
|
XM-8 |
XB-8 |
12.700 |
15.88 |
12.70 |
66.68 |
38.10 |
23.80 |
41.28 |
5/8-18 |
10 |
56,963 |
173 |
|
XM-10 |
XB-10 |
15.875 |
19.05 |
14.27 |
73.02 |
44.45 |
28.58 |
44.45 |
3/4-16 |
13 |
73,683 |
273 |
|
XM-12 |
XB-12 |
19.050 |
22.23 |
17.45 |
85.73 |
50.80 |
33.32 |
47.63 |
7/8-14 |
12 |
101,424 |
427 |
|
XM-12-1 |
XB-12-1 |
19.050 |
22.23 |
17.45 |
85.73 |
50.80 |
33.32 |
47.63 |
3/4-16 |
12 |
101,424 |
427 |
|
XM-14-1 |
XB-14-1 |
22.225 |
22.23 |
17.45 |
85.73 |
50.80 |
33.32 |
47.63 |
7/8-14 |
12 |
101,424 |
427 |
|
XM-3、XM-4、XM-5、XM-6、XM-7、XM-8、XM-10、XM-12、XM-14关节现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
