| MW-2、MW-3、MW-4、MW-5、MW-6、MW-7、MW-8、MW-10关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-5-25
|
 |
|

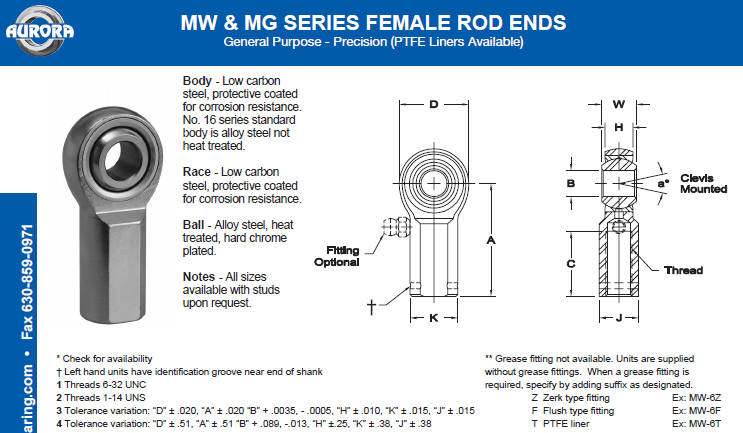

ROD END NO. |
DIMENSIONS IN INCHES |
a°
Misalign.
Angle |
Ultimate Radial
Static Load
Capacity Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand† |
B
+ .0015
-.0005 |
W
+ .000
- .005 |
H
± .005 |
A
± .015 |
D
± .010 |
K
± .010 |
J
± .010 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-2B |
|
MW-2 |
MG-2 |
.1250 |
.250 |
.187 |
.812 |
.500 |
.312 |
.250 |
.312 |
.437 |
6-321 |
16 |
1,202 |
.02 |
|
MW-3 |
MG-3 |
.1900 |
.312 |
.250 |
1.062 |
.625 |
.406 |
.312 |
.437 |
.562 |
10-32 |
13 |
1,531 |
.04 |
|
MW-4 |
MG-4 |
.2500 |
.375 |
.281 |
1.312 |
.750 |
.469 |
.375 |
.500 |
.750 |
1/4-28 |
16 |
2,539 |
.06 |
|
MW-5 |
MG-5 |
.3125 |
.437 |
.344 |
1.375 |
.875 |
.500 |
.437 |
.625 |
.750 |
5/16-24 |
14 |
3,133 |
.09 |
|
MW-6 |
MG-6 |
.3750 |
.500 |
.406 |
1.625 |
1.000 |
.687 |
.562 |
.719 |
.937 |
3/8-24 |
12 |
3,915 |
.15 |
|
MW-7 |
MG-7 |
.4375 |
.562 |
.437 |
1.812 |
1.125 |
.750 |
.625 |
.812 |
1.062 |
7/16-20 |
14 |
4,218 |
.20 |
|
MW-8 |
MG-8 |
.5000 |
.625 |
.500 |
2.125 |
1.312 |
.875 |
.750 |
.937 |
1.187 |
1/2-20 |
12 |
6,660 |
.33 |
|
MW-10 |
MG-10 |
.6250 |
.750 |
.562 |
2.500 |
1.500 |
1.000 |
.875 |
1.125 |
1.500 |
5/8-18 |
16 |
7,364 |
.48 |
|
MW-12 |
MG-12 |
.7500 |
.875 |
.687 |
2.875 |
1.750 |
1.125 |
1.000 |
1.312 |
1.750 |
3/4-16 |
14 |
11,518 |
.72 |
|
MW-14 |
MG-14 |
.8750 |
.875 |
.765 |
3.375 |
2.000 |
1.300 |
1.125 |
1.375 |
1.875 |
7/8-14 |
7 |
18,476 |
1.03 |
|
MW-14-1 |
MG-14-1 |
.8750 |
.875 |
.687 |
3.500 |
2.000 |
1.312 |
1.187 |
1.312 |
1.812 |
7/8-14 |
12 |
22,843 |
1.03 |
|
MW-16 |
MG-16 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.625 |
1.500 |
1.875 |
2.125 |
1 1/4-12 |
17 |
40,889 |
2.13 |
|
MW-16-1 |
MG-16-1 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.625 |
1.500 |
1.875 |
2.125 |
1-142 |
17 |
43,541 |
2.41 |
|
MW-16-2 |
MG-16-2 |
1.0000 |
1.375 |
1.000 |
4.125 |
2.750 |
1.625 |
1.500 |
1.875 |
2.125 |
1-12 |
17 |
43,541 |
2.41 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
a°
Misalign.
Angle |
Ultimate Radial
Static Load
Capacity
Newtons |
Approx. Brg.
Wt. Grams |
|
Right
Hand |
Left
Hand† |
B
+ .038
- .013 |
W
+ .00
- .13 |
H
± .13 |
A
± .38 |
D
± .25 |
K
± .25 |
J
± .25 |
Ball Dia
. Ref. |
C
+ 1.57
- .79 |
Thread
UNF-2B |
|
MW-2 |
MG-2 |
3.175 |
6.35 |
4.75 |
20.62 |
12.70 |
7.92 |
6.35 |
7.92 |
11.10 |
6-321 |
16 |
5,344 |
9 |
|
MW-3 |
MG-3 |
4.826 |
7.92 |
6.35 |
26.97 |
15.88 |
10.31 |
7.92 |
11.10 |
14.27 |
10-32 |
13 |
6,805 |
17 |
|
MW-4 |
MG-4 |
6.350 |
9.53 |
7.14 |
33.32 |
19.05 |
11.91 |
9.53 |
12.70 |
19.05 |
1/4-28 |
16 |
11,297 |
27 |
|
MW-5 |
MG-5 |
7.938 |
11.10 |
8.74 |
34.93 |
22.23 |
12.70 |
11.10 |
15.88 |
19.05 |
5/16-24 |
14 |
13,934 |
42 |
|
MW-6 |
MG-6 |
9.525 |
12.70 |
10.31 |
41.28 |
25.40 |
17.45 |
14.27 |
18.26 |
23.80 |
3/8-24 |
12 |
17,416 |
69 |
|
MW-7 |
MG-7 |
11.113 |
14.27 |
11.10 |
46.02 |
28.58 |
19.05 |
15.88 |
20.62 |
26.97 |
7/16-20 |
14 |
18,759 |
90 |
|
MW-8 |
MG-8 |
12.700 |
15.88 |
12.70 |
53.98 |
33.32 |
22.23 |
19.05 |
23.80 |
30.15 |
1/2-20 |
12 |
29,624 |
149 |
|
MW-10 |
MG-10 |
15.875 |
19.05 |
14.27 |
63.50 |
38.10 |
25.40 |
22.23 |
28.58 |
38.10 |
5/8-18 |
16 |
32,752 |
216 |
|
MW-12 |
MG-12 |
19.050 |
22.23 |
17.45 |
73.03 |
44.45 |
28.58 |
25.40 |
33.32 |
44.45 |
3/4-16 |
14 |
51,237 |
328 |
|
MW-14 |
MG-14 |
22.225 |
22.23 |
19.43 |
85.73 |
50.80 |
33.02 |
28.58 |
34.93 |
47.63 |
7/8-14 |
7 |
82,185 |
67 |
|
MW-14-1 |
MG-14-1 |
22.225 |
22.23 |
17.45 |
88.90 |
50.80 |
33.32 |
30.15 |
33.32 |
46.02 |
7/8-14 |
12 |
101,601 |
467 |
|
MW-16 |
MG-16 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
41.28 |
38.10 |
47.63 |
53.98 |
1 1/4-12 |
17 |
193,670 |
964 |
|
MW-16-1 |
MG-16-1 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
41.28 |
38.10 |
47.63 |
53.98 |
1-142 |
17 |
193,670 |
1,093 |
|
MW-16-2 |
MG-16-2 |
25.400 |
34.93 |
25.40 |
104.78 |
69.85 |
41.28 |
38.10 |
47.63 |
53.98 |
1-12 |
17 |
193,670 |
1,093 | |
