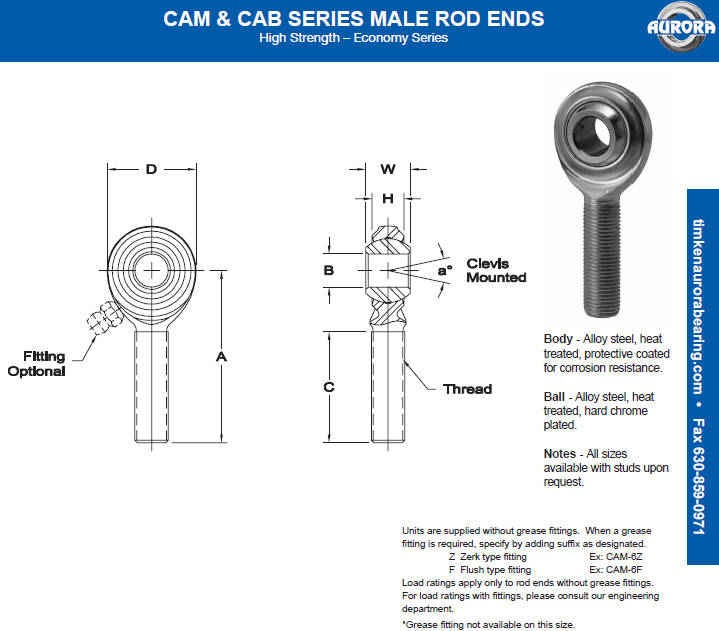

CAM-5、CAM-6、CAM-7、CAM-8、CAM-10、CAM-12关节

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

 Brg. Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0025

- .0005

W

+ .005

H

Ref.

A

± .015

D

Ref.

Ball Dia

. Ref.

C

+ .062

- .031

Thread

UNF-3A

CAM-5

CAB-5

.3125

.437

.312

1.875

.875

.625

1.250

5/16-24

22

6,684

.07

CAM-6

CAB-6

.3750

.500

.359

1.938

1.000

.719

1.250

3/8-24

22

9,088

.11

CAM-7

CAB-7

.4375

.562

.406

2.125

1.125

.812

1.375

7/16-20

21

11,445

.15

CAM-8

CAB-8

.5000

.625

.453

2.438

1.312

.937

1.500

1/2-20

20

15,479

.24

CAM-10

CAB-10

.6250

.750

.484

2.625

1.500

1.125

1.625

5/8-18

26

17,470

.36

CAM-12

CAB-12

.7500

.875

.593

2.875

1.750

1.312

1.750

3/4-16

24

24,471

.57

ROD END NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

 Angle

Ultimate Radial

Static Load

Capacity

Newtons

Approx.

Brg. Wt.

Grams

Right

Hand

Left

Hand

B

+ .064

- .013

W

+ .13

H

Ref.

A

+ .38

D

Ref.

Ball Dia

. Ref.

C

+ 1.57

- .79

Thread

UNF-3A

CAM-5

CAB-5

7.938

11.10

7.92

47.63

22.23

15.88

31.75

5/16-24

22

30,531

32

CAM-6

CAB-6

9.525

12.70

9.12

49.23

25.40

18.26

31.75

3/8-24

22

40,423

50

CAM-7

CAB-7

11.113

14.27

10.31

53.98

28.58

20.62

34.93

7/16-20

21

50,907

68

CAM-8

CAB-8

12.700

15.88

11.50

61.93

33.32

23.80

38.10

1/2-20

20

68,851

109

CAM-10

CAB-10

15.875

19.05

12.29

66.68

38.10

28.58

41.28

5/8-18

26

77,707

163

CAM-12

CAB-12

19.050

22.23

15.06

73.03

44.45

33.32

44.45

3/4-16

24

108,847

259
