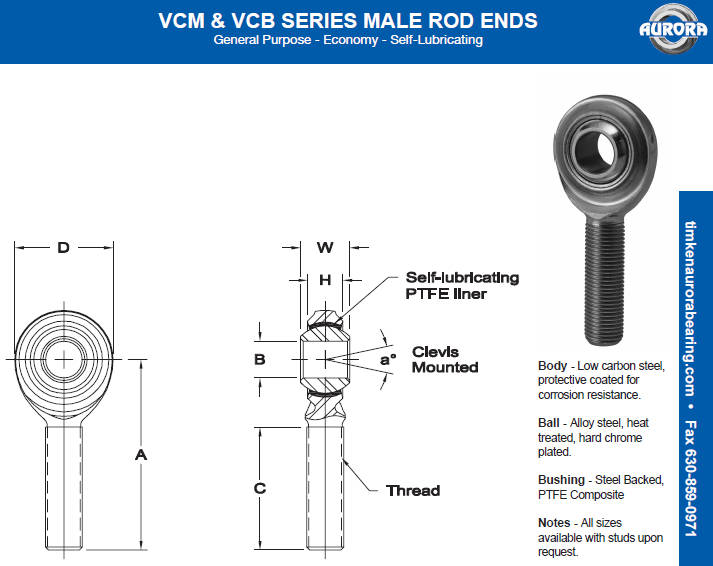

VCM-5、VCM-6、VCM-7、VCM-8、VCM-10、VCM-12关节

ROD END NO.

DIMENSIONS IN INCHES

a°

Misalign.

 Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0025

- .0005

W

± .005

H

Ref.

A

± .015

D

Ref.

Ball Dia.

 Ref.

C

+ .062

- .031

Thread

UNF-3A

VCM-5

VCB-5

.3125

.437

.312

1.875

.875

.593

1.250

5/16-24

18

2,623

.07

VCM-6

VCB-6

.3750

.500

.359

1.938

1.000

.687

1.250

3/8-24

18

3,643

.11

VCM-7

VCB-7

.4375

.562

.406

2.125

1.125

.781

1.375

7/16-20

17

4,464

.15

VCM-8

VCB-8

.5000

.625

.453

2.438

1.312

.875

1.500

1/2-20

16

7,229

.24

VCM-10

VCB-10

.6250

.750

.484

2.625

1.500

1.062

1.625

5/8-18

22

8,204

.36

VCM-12

VCB-12

.7500

.875

.593

2.875

1.750

1.250

1.750

3/4-16

20

12,280

.57

ROD END NO.

DIMENSIONS IN MILLIMETERS

a°

Misalign.

 Angle

Ultimate Radial

Static Load

Capacity

Newtons

Approx.

Brg. Wt.

Grams

Right

Hand

Left

Hand

B

+ .064

- .013

W

± .13

H

Ref.

A

± .38

D

Ref.

Ball Dia

. Ref.

C

+ 1.57

- .79

Thread

UNF-3A

VCM-5

VCB-5

7.938

11.10

7.92

47.63

22.23

15.06

31.75

5/16-24

18

11,667

32

VCM-6

VCB-6

9.525

12.70

9.12

49.23

25.40

17.45

31.75

3/8-24

18

16,204

50

VCM-7

VCB-7

11.113

14.27

10.31

53.98

28.58

19.84

34.93

7/16-20

17

19,856

68

VCM-8

VCB-8

12.700

15.88

11.50

61.93

33.32

22.23

38.10

1/2-20

16

32,155

109

VCM-10

VCB-10

15.875

19.05

12.29

66.68

38.10

26.97

41.28

5/8-18

22

36,491

163

VCM-12

VCB-12

19.050

22.23

15.06

73.03

44.45

31.75

44.45

3/4-16

20

54,621

259
