| CW-5、CW-3、CW-4、CW-6、CW-7、CW-8、CW10关节 |
|
上海川代轴承机械有限公司 新闻动态 2026-6-14
|
 |
|

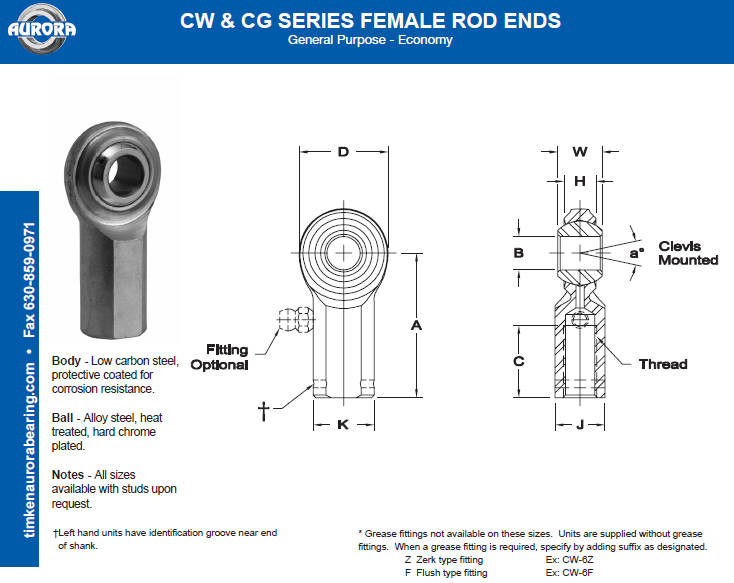

ROD END NO. |
DIMENSIONS IN INCHES |
|
a°
Misalign.
Angle |
Ultimate Radial
Static Load
Capacity Lbs. |
Approx.
Brg. Wt.
Lbs. |
|
Right
Hand |
Left
Hand† |
B
+ .0025
-.0005 |
W
± .005 |
H
Ref. |
A
± .015 |
D
Ref. |
K
± .010 |
J
± .010 |
Ball Dia.
Ref. |
C
+ .062
- .031 |
Thread
UNF-2B |
|
CW-3* |
CG-3* |
.1900 |
.312 |
.234 |
1.062 |
.625 |
.406 |
.312 |
.437 |
.500 |
10-32 |
20 |
2,079 |
.04 |
|
CW-4 |
CG-4 |
.2500 |
.375 |
.250 |
1.312 |
.750 |
.469 |
.375 |
.500 |
.687 |
1/4-28 |
27 |
3,208 |
.05 |
|
CW-5 |
CG-5 |
.3125 |
.437 |
.312 |
1.375 |
.875 |
.500 |
.437 |
.625 |
.687 |
5/16-24 |
22 |
3,824 |
.08 |
|
CW-6 |
CG-6 |
.3750 |
.500 |
.359 |
1.625 |
1.000 |
.687 |
.562 |
.719 |
.812 |
3/8-24 |
22 |
5,087 |
.13 |
|
CW-7 |
CG-7 |
.4375 |
.562 |
.406 |
1.812 |
1.125 |
.750 |
.625 |
.812 |
.937 |
7/16-20 |
21 |
6,385 |
.18 |
|
CW-8 |
CG-8 |
.5000 |
.625 |
.453 |
2.125 |
1.312 |
.875 |
.750 |
.937 |
1.062 |
1/2-20 |
20 |
9,096 |
.29 |
|
CW-10 |
CG-10 |
.6250 |
.750 |
.484 |
2.500 |
1.500 |
1.000 |
.875 |
1.125 |
1.375 |
5/8-18 |
26 |
9,713 |
.43 |
|
CW-12 |
CG-12 |
.7500 |
.875 |
.593 |
2.875 |
1.750 |
1.125 |
1.000 |
1.312 |
1.562 |
3/4-16 |
24 |
14,207 |
.65 |
|
ROD END NO. |
DIMENSIONS IN MILLIMETERS |
|
a°
Misalign
. Angle |
Ultimate Radial
Static Load
Capacity
Newtons |
Approx.
Brg.
Wt.
Grams |
|
Right
Hand |
Left
Hand† |
B
+ .064
-.013 |
W
± .13 |
H
Ref. |
A
± .38 |
D
Ref. |
K
± .25 |
J
± .25 |
Ball Dia.
Ref. |
C
+ 1.57
- .79 |
Thread
UNF-2B |
|
CW-3* |
CG-3* |
4.826 |
7.92 |
5.94 |
26.97 |
15.88 |
10.31 |
7.92 |
11.10 |
12.70 |
10-32 |
20 |
9,247 |
18 |
|
CW-4 |
CG-4 |
6.350 |
9.53 |
6.35 |
33.32 |
19.05 |
11.91 |
9.53 |
12.70 |
17.45 |
1/4-28 |
27 |
14,269 |
23 |
|
CW-5 |
CG-5 |
7.938 |
11.10 |
7.92 |
34.93 |
22.23 |
12.70 |
11.10 |
15.88 |
17.45 |
5/16-24 |
22 |
17,009 |
36 |
|
CW-6 |
CG-6 |
9.525 |
12.70 |
9.12 |
41.28 |
25.40 |
17.45 |
14.27 |
18.26 |
20.62 |
3/8-24 |
22 |
22,627 |
59 |
|
CW-7 |
CG-7 |
11.113 |
14.27 |
10.31 |
46.02 |
28.58 |
19.05 |
15.88 |
20.62 |
23.80 |
7/16-20 |
21 |
28,400 |
82 |
|
CW-8 |
CG-8 |
12.700 |
15.88 |
11.50 |
53.98 |
33.32 |
22.23 |
19.05 |
23.80 |
26.97 |
1/2-20 |
20 |
40,459 |
132 |
|
CW-10 |
CG-10 |
15.875 |
19.05 |
12.29 |
63.50 |
38.10 |
25.40 |
22.23 |
28.58 |
34.93 |
5/8-18 |
26 |
43,203 |
195 |
|
CW-12 |
CG-12 |
19.050 |
22.23 |
15.06 |
73.03 |
44.45 |
28.58 |
25.40 |
33.32 |
39.67 |
3/4-16 |
24 |
63,193 |
295 |
|
