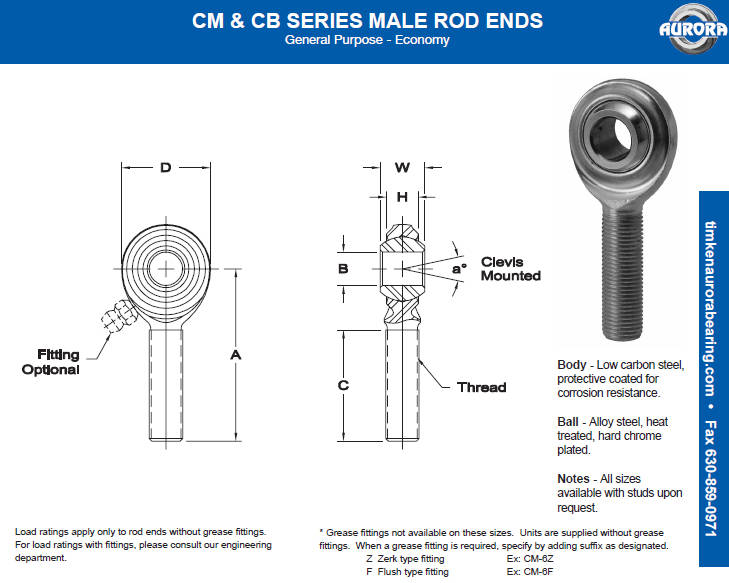

CM-6、CB-6、CM-10、CB-10、CM-4、CB-4关节轴承

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

 Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt.

Lbs.

Right

Hand

Left

Hand

B

+ .0025

-.0005

W

± .005

H

Ref.

A

± .015

D

Ref.

Ball Dia

. Ref.

C

+ .062

- .031

Thread

UNF-3A

CM-3*

CB-3*

.1900

.312

.234

1.250

.625

.437

.750

10-32

20

1,204

.03

CM-4*

CB-4*

.2500

.375

.250

1.562

.750

.500

1.000

1/4-28

27

2,212

.04

CM-5*

CB-5*

.3125

.437

.312

1.875

.875

.625

1.250

5/16-24

22

3,577

.07

CM-6

CB-6

.3750

.500

.359

1.938

1.000

.719

1.250

3/8-24

22

5,068

.11

CM-7

CB-7

.4375

.562

.406

2.125

1.125

.812

1.375

7/16-20

21

6,345

.15

CM-8

CB-8

.5000

.625

.453

2.438

1.312

.937

1.500

1/2-20

20

8,338

.24

CM-10

CB-10

.6250

.750

.484

2.625

1.500

1.125

1.625

5/8-18

26

9,713

.36

CM-12

CB-12

.7500

.875

.593

2.875

1.750

1.312

1.750

3/4-16

24

14,207

.57

ROD END NO.

DIMENSIONS IN MILLIMETERS

a° Misalign.

 Angle

Ultimate Radial

Static Load

Capacity

 Newtons

Approx.

Brg. Wt.

Grams

Right

Hand

Left

Hand

B

+ .064

-.013

W

± .13

H

Ref.

A

± .38

D

Ref.

Ball Dia.

Ref.

C

+ 1.57

- .79

Thread

UNF-3A

CM-3*

CB-3*

4.826

7.92

5.94

31.75

15.88

11.10

19.05

10-32

20

5,355

14

CM-4*

CB-4*

6.350

9.53

6.35

39.67

19.05

12.70

25.40

1/4-28

27

9,839

18

CM-5*

CB-5*

7.938

11.10

7.92

47.63

22.23

15.88

31.75

5/16-24

22

15,910

32

CM-6

CB-6

9.525

12.70

9.12

49.23

25.40

18.26

31.75

3/8-24

22

22,542

50

CM-7

CB-7

11.113

14.27

10.31

53.98

28.58

20.62

34.93

7/16-20

21

28,223

68

CM-8

CB-8

12.700

15.88

11.50

61.93

33.32

23.80

38.10

1/2-20

20

37,087

109

CM-10

CB-10

15.875

19.05

12.29

66.68

38.10

28.58

41.28

5/8-18

26

43,203

163

CM-12

CB-12

19.050

22.23

15.06

73.03

44.45

33.32

44.45

3/4-16

24

63,193

259
