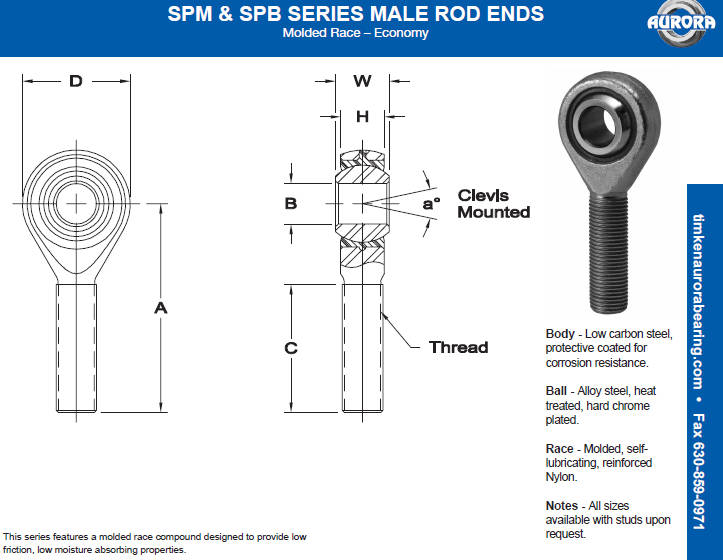

ROD END NO.

DIMENSIONS IN INCHES

a° Misalign.

Angle

Ultimate Radial

Static Load

Capacity Lbs.

Approx.

Brg. Wt.

Lbs.

Right Hand

Left Hand

B

+ .0020

-.0000

W

± .005

H

Ref.

A

+ .060

- .030

D

± .015

Ball Dia.

Ref.

C

± .062

Thread

UNF-2A

SPM-3

SPB-3

.1900

.312

.250

1.250

.625

.437

.750

10-32

13

1,210

.02

SPM-4

SPB-4

.2500

.375

.281

1.562

.750

.500

1.000

1/4-28

16

2,470

.04

SPM-5

SPB-5

.3125

.437

.344

1.875

.875

.625

1.250

5/16-24

14

2,740

.07

SPM-6

SPB-6

.3750

.500

.406

1.938

1.000

.719

1.250

3/8-24

12

4,210

.11

SPM-7

SPB-7

.4375

.562

.437

2.125

1.125

.812

1.312

7/16-20

14

5,350

.15

SPM-8

SPB-8

.5000

.625

.500

2.438

1.312

.937

1.500

1/2-20

12

6,430

.23

SPM-10

SPB-10

.6250

.750

.562

2.625

1.500

1.125

1.625

5/8-18

16

8,300

.36

SPM-12

SPB-12

.7500

.875

.687

2.875

1.750

1.312

1.750

3/4-16

14

10,900

.57

ROD END NO.

DIMENSIONS IN MILLIMETERS

a° Misalign.

 Angle

Ultimate Radial

Static Load

Capacity

Newtons

Approx.

Brg.

 Wt.

Grams

Right Hand

Left Hand

B

+ .051

-.000

W

± .13

H

Ref.

A

+ 1.52

- .76

D

± .38

Ball Dia.

Ref.

C

± 1.57

Thread

UNF-2A

SPM-3

SPB-3

4.826

7.92

6.35

31.75

15.88

11.10

19.05

10-32

13

5,382

10

SPM-4

SPB-4

6.350

9.53

7.14

39.67

19.05

12.70

25.40

1/4-28

16

10,987

18

SPM-5

SPB-5

7.938

11.10

8.74

47.63

22.23

15.88

31.75

5/16-24

14

12,188

32

SPM-6

SPB-6

9.525

12.70

10.31

49.23

25.40

18.26

31.75

3/8-24

12

18,726

49

SPM-7

SPB-7

11.113

14.27

11.10

53.98

28.58

20.62

33.33

7/16-20

14

23,797

67

SPM-8

SPB-8

12.700

15.88

12.70

61.93

33.32

23.80

38.10

1/2-20

12

28,601

105

SPM-10

SPB-10

15.875

19.05

14.27

66.68

38.10

28.58

41.28

5/8-18

16

36,918

165

SPM-12

SPB-12

19.050

22.23

17.45

73.03

44.45

33.32

44.45

3/4-16

14

48,483

258
