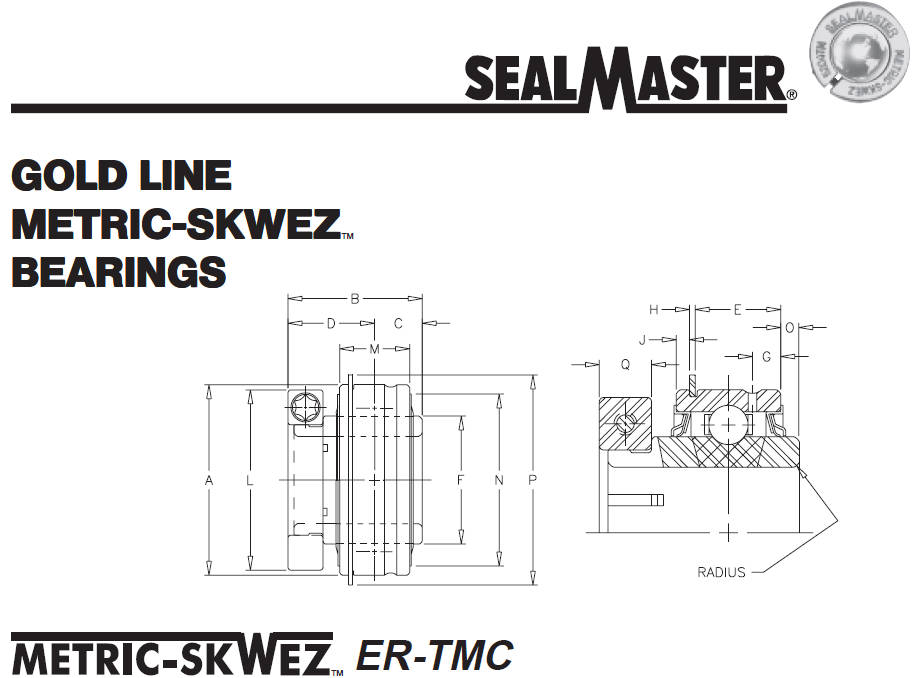

ER-207TMC、ER-205TMC、ER-208TMC、ER-210TMC

SHAFT

DIA.

BRG. NO.

Dimensions in Millimeters/Inches

Weight in Kilograms/Pounds

UNIT

WT.

A

B

C

D

E

F

G

H

J

L

M

N

RAD

O

P

Q

20MM

ER-204TMC

47MM

1.8504

33

1-9/32

13

1/2

20

25/32

12

31/64

30

1.182

4

11/64

1

3/64

2

3/32

44

1-3/4

16

5/8

41

1-5/8

1

.040

5

.188

52

2-1/16

10

3/8

0.3

.56

25MM

ER-205TMC

52MM

2.0472

37

1-7/16

14

9/16

22

7/8

15

39/64

35

1.375

5

13/64

1

3/64

2

3/32

49

1-15/16

19

3/4

47

1-55/64

1

.040

5

.188

58

2-17/64

10

3/8

0.3

.68

30MM

ER-206TMC

62MM

2.4409

40

1-9/16

16

5/8

24

15/16

17

11/16

40

1.587

6

7/32

2

1/16

3

1/8

56

2-3/16

22

7/8

55

2-5/32

1

.040

5

.188

67

2-21/32

10

3/8

0.4

.93

35MM

ER-207TMC

72MM

2.8346

44

1-3/4

17

11/16

27

1-1/16

19

3/4

47

1.852

6

7/32

2

1/16

3

1/8

65

2-9/16

24

15/16

65

2-9/16

1

.040

6

.219

78

3-5/64

11

7/16

0.6

1.37

40MM

ER-208TMC

80MM

3.1496

51

2

19

3/4

32

1-1/4

23

29/32

52

2.060

6

1/4

2

1/16

3

1/8

68

2-11/16

28

1-3/32

72

2-53/64

2

.062

5

.203

87

3-13/32

11

7/16

0.9

2.00

45MM

ER-209TMC

85MM

3.3465

51

2

19

3/4

32

1-1/4

23

29/32

58

2.296

6

1/4

2

1/16

3

1/8

75

2-15/16

28

1-3/32

78

3-1/16

2

.062

5

.203

91

3-19/32

11

7/16

1.0

2.31

50MM

ER-210TMC

90MM

3.5433

53

2-3/32

19

3/4

34

1-11/32

23

29/32

63

2.463

8

19/64

2

3/32

3

1/8

86

3-3/8

29

1-1/8

82

3-7/32

2

.062

5

.188

96

3-25/32

14

9/16

1.1

2.43

55MM

ER-211TMC

100MM

3.9370

57

2-1/4

22

7/8

35

1-3/8

25

31/32

69

2.711

8

19/64

2

3/32

3

1/8

92

3-5/8

30

1-3/16

90

3-9/16

2

.080

7

.281

106

4-3/16

14

9/16

1.4

3.00

60MM

ER-212TMC

110MM

4.3307

67

2-5/8

25

1

41

1-5/8

32

1-1/32

76

2.981

8

19/64

2

3/32

3

1/8

105

4-1/8

32

1-1/4

100

3-15/16

2

.080

10

.375

11 6

4-37/64

17

11/16

1.8

4.00
