| KP16BS、KP21BS、KP23BS、KP25BS、KP33BS、KP37BS、KP47BS、KP49BS |
|
上海川代轴承机械有限公司 新闻动态 2026-4-27
|
|
|
|

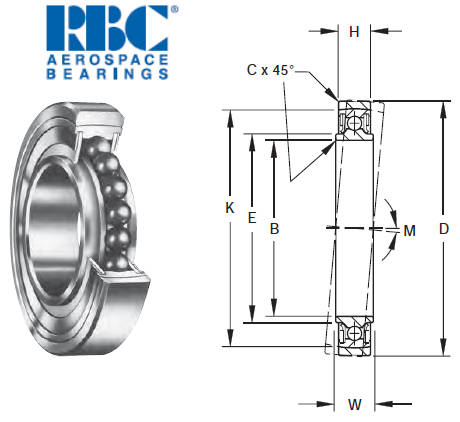

Bearing Number |
MS 27648
Dash No. |
Bore B
+0.0000, -0.0010
+0.000, -0.025 |
Outside Diameter D
+0.0000, -0.0010
+0.000, -0.025 |
Widths
W H
+0.0000, -0.005 +0.000, -0.005
+0.000, -0.13 +0.00, -0.13 |
E
Approx. |
C
+0.015, -0.000
+0.38, -0.00 |
K
To Sharp Corner
(Ref.) |
M
Mis- alignment Either Direction (Ref.) |
Wt.
Approx. |
Radial Limit Load Rating |
Thrust Limit Load Rating |
|
|
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
in. |
mm |
|
lbs. |
kg |
lbf. |
N |
lbf. |
N |
|
KP16BS |
-16 |
1.0000(1) |
25.400(1) |
1.9375 |
49.213 |
0.437 |
11.10 |
0.375 |
9.53 |
1.150 |
29.21 |
0.024 |
0.61 |
1.709 |
43.41 |
7°25’ |
0.18 |
0.082 |
8085 |
36000 |
1600 |
7100 |
|
KP21BS |
-21 |
1.3130 |
33.350 |
2.2500 |
57.150 |
0.437 |
11.10 |
0.375 |
9.53 |
1.465 |
37.21 |
0.024 |
0.61 |
2.028 |
51.51 |
6°30’ |
0.20 |
0.091 |
9840 |
43800 |
2000 |
9000 |
|
KP23BS |
-23 |
1.4380 |
36.525 |
2.3750 |
60.325 |
0.437 |
11.10 |
0.375 |
9.53 |
1.585 |
40.26 |
0.024 |
0.61 |
2.155 |
54.74 |
6° |
0.22 |
0.100 |
10500 |
46700 |
2200 |
9800 |
|
KP25BS |
-25 |
1.5630 |
39.700 |
2.5000 |
63.500 |
0.437 |
11.10 |
0.375 |
9.53 |
1.700 |
43.18 |
0.024 |
0.61 |
2.282 |
57.96 |
5°45’ |
0.25 |
0.113 |
11300 |
50300 |
2300 |
10200 |
|
KP29BS |
-29 |
1.8130 |
46.050 |
2.7500 |
69.850 |
0.437 |
11.10 |
0.375 |
9.53 |
1.940 |
49.28 |
0.024 |
0.61 |
2.535 |
64.39 |
5° |
0.27 |
0.122 |
12700 |
56500 |
2600 |
11600 |
|
KP33BS |
-33 |
2.0630 |
52.400 |
3.0000 |
76.200 |
0.437 |
11.10 |
0.375 |
9.53 |
2.234 |
56.74 |
0.024 |
0.61 |
2.787 |
70.79 |
5° |
0.30 |
0.136 |
14400 |
64000 |
2900 |
12900 |
|
KP37BS |
-37 |
2.3130 |
58.750 |
3.2500 |
82.550 |
0.437 |
11.10 |
0.375 |
9.53 |
2.475 |
62.87 |
0.024 |
0.61 |
3.039 |
77.19 |
4°30’ |
0.33 |
0.150 |
15800 |
70300 |
3200 |
14300 |
|
KP47BS |
-47 |
2.9380 |
74.625 |
4.1250 |
104.775 |
0.531 |
13.49 |
0.469 |
11.91 |
3.105 |
78.87 |
0.039 |
0.99 |
3.846 |
97.69 |
4°30’ |
0.64 |
0.290 |
24700 |
110000 |
5000 |
22300 |
|
*KP48BS |
-48 |
3.0000 |
76.200 |
4.2500 |
107.950 |
0.531 |
13.49 |
0.469 |
11.91 |
3.230 |
82.04 |
0.039 |
0.99 |
3.972 |
100.89 |
4° |
0.69 |
0.313 |
27500 |
122000 |
5500 |
24500 |
|
KP49BS |
-49 |
3.0625 |
77.788 |
4.2500 |
107.950 |
0.531 |
13.49 |
0.469 |
11.91 |
3.230 |
82.04 |
0.039 |
0.99 |
3.972 |
100.89 |
4° |
0.69 |
0.313 |
27500 |
122000 |
5500 |
24500 |
|
KP16BS、KP21BS、KP23BS、KP25BS、KP33BS、KP37BS、KP47BS、KP49BS现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
