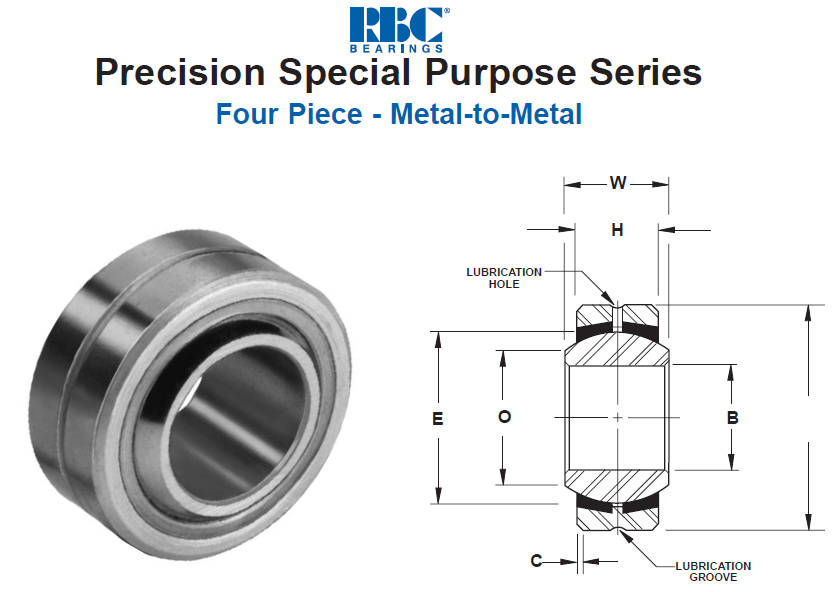

LS24、LS19、LS30、LS10、LS12关节轴承

SPHERICAL

BEARING

NUMBER

DIMENSIONS IN INCHES

MAXIMUM

STATIC

RADIAL LOAD

APPROX WEIGHT

BORE

OUTSIDE DIAMETER

BALL WIDTH

HOUSING WIDTH

CHAMFER

BALL DIAMETER

BALL FLAT DIAMETER

B

D

W

H

C

E

O

LBF

LBS

+.0000

- .0005

+.0000

- .0005

+.000

- .005

+.000

- .005

+.015

- .000

REF

REF

LS3

LS4

LS5

LS6

.1900

.2500

.3125

.3750

.6250

.7500

.8750

1.0000

.281

.375

.437

.500

.187

.281

.313

.375

.016

.016

.016

.016

.406

.515

.625

.718

.293

.354

.447

.517

2,960

5,245

6,550

8,605

.02

.04

.05

.08

LS7

LS8

LS10

LS12

.4375

.5000

.6250

.7500

1.1875

1.3125

1.5625

2.2500

.562

.687

.875

1.250

.437

.531

.687

.937

.032

.044

.044

.044

.812

.937

1.187

1.625

.586

.637

.802

1.038

11,100

15,600

25,700

47,600

.12

.18

.33

.97

LS16

LS19

LS24

LS30

1.0000

1.1875

1.5000

1.8750

2.3750

2.6250

3.2500

4.0000

1.125

1.250

1.500

1.625

.875

1.000

1.250

1.313

.062

.085

.085

.125

1.750

2.000

2.500

3.000

1.345

1.562

2.000

2.521

48,200

63,000

98,000

123,500

.94

1.27

2.38

3.75
