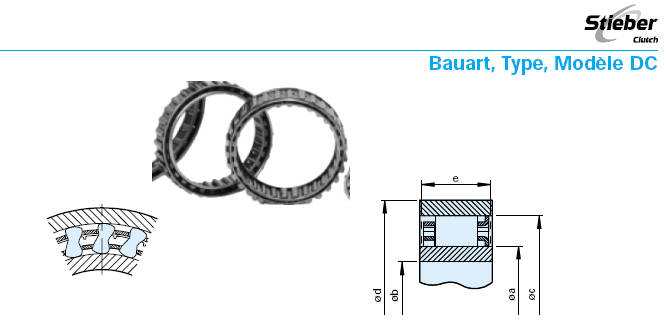

Bauform Type Modèle |
Leerlaufdrehzahlen Overrunningspeeds Vitessesenrouelibre |
Klemmspalt- höhe Sprag space Espace radial |
Bremsbügel
Anzahl Number
of clips Nombre
declips |
Klemmkörper Anzahl
Number
of sprags
Nombre
decames |
Gewicht Weight Masse |
|
TKN1) [Nm] |
nimax2) [min-1] |
namax3) [min-1] |
øa+0,008
[mm] |
øc ±0,013
[mm] |
[mm] |
e [mm] |
ød [mm] |
øb [mm] |
|
|
[kg] |
|
DC2222G |
63 |
8600 |
4300 |
22,225 |
38,885 |
8,33±0,1 |
10,0 |
50 |
15 |
– |
12 |
0,030 |
|
DC2776 |
119 |
6900 |
3400 |
27,762 |
44,422 |
8,33±0,1 |
13,5 |
58 |
18 |
– |
14 |
0,055 |
|
DC3034 |
124 |
6300 |
3100 |
30,340 |
47,000 |
8,33±0,1 |
13,5 |
62 |
20 |
– |
14 |
0,060 |
|
DC3175(3C) |
159 |
6000 |
3000 |
31,750 |
48,410 |
8,33±0,1 |
13,5 |
63 |
21 |
3 |
16 |
0,060 |
|
DC3809A |
275 |
5000 |
2500 |
38,092 |
54,752 |
8,33±0,1 |
16,0 |
71 |
25 |
– |
18 |
0,085 |
|
DC4127(3C) |
224 |
4600 |
2300 |
41,275 |
57,935 |
8,33±0,1 |
13,5 |
75 |
27 |
3 |
18 |
0,090 |
|
DC4445A |
363 |
4300 |
2100 |
44,450 |
61,110 |
8,33±0,1 |
16,0 |
79 |
29 |
– |
20 |
0,095 |
|
DC4972(4C) |
306 |
3800 |
1900 |
49,721 |
66,381 |
8,33±0,1 |
13,5 |
86 |
33 |
4 |
22 |
0,100 |
|
DC5476A |
525 |
3500 |
1700 |
54,765 |
71,425 |
8,33±0,1 |
16,0 |
92 |
36 |
– |
24 |
0,110 |
|
DC5476A(4C) |
525 |
3500 |
1700 |
54,765 |
71,425 |
8,33±0,1 |
16,0 |
92 |
36 |
4 |
24 |
0,130 |
|
DC5476B(4C) |
769 |
3500 |
1700 |
54,765 |
71,425 |
8,33±0,1 |
21,0 |
92 |
36 |
4 |
24 |
0,180 |
|
DC5476C(4C) |
990 |
3500 |
1700 |
54,765 |
71,425 |
8,33±0,1 |
25,4 |
92 |
36 |
4 |
24 |
0,200 |
|
DC5776A |
604 |
3300 |
1600 |
57,760 |
74,420 |
8,33±0,1 |
16,0 |
98 |
38 |
– |
26 |
0,110 |
|
DC6334B |
806 |
3000 |
1500 |
63,340 |
80,000 |
8,33±0,1 |
21,0 |
104 |
42 |
– |
26 |
0,175 |
|
DC7221(5C) |
675 |
2600 |
1300 |
72,217 |
88,877 |
8,33±0,1 |
13,5 |
115 |
48 |
5 |
30 |
0,140 |
|
DC7221B |
1279 |
2600 |
1300 |
72,217 |
88,877 |
8,33±0,1 |
21,0 |
115 |
48 |
– |
30 |
0,185 |
|
DC7221B(5C) |
1279 |
2600 |
1300 |
72,217 |
88,877 |
8,33±0,1 |
21,0 |
115 |
48 |
5 |
30 |
0,210 |
|
DC7969C(5C) |
2038 |
2400 |
1200 |
79,698 |
96,358 |
8,33±0,1 |
25,4 |
124 |
53 |
5 |
34 |
0,280 |
|
DC8334C |
2055 |
2300 |
1100 |
83,340 |
100,000 |
8,33±0,1 |
25,4 |
132 |
55 |
– |
34 |
0,270 |
|
DC8729A |
1250 |
2200 |
1100 |
87,290 |
103,960 |
8,33±0,1 |
16,0 |
134 |
58 |
– |
34 |
0,165 |
|
DC10323A(3C)* |
1612 |
1800 |
900 |
103,231** |
119,891 |
8,33±0,1 |
16,0 |
155 |
68 |
3 |
40 |
0,205 |
|
DC12334C* |
4800 |
1500 |
750 |
123,340** |
140,000 |
8,33±0,1 |
25,4 |
184 |
80 |
– |
50 |
0,400 |
|
DC12388C(11C) |
4875 |
1500 |
750 |
123,881 |
142,880 |
9,50±0,10 |
25,4 |
186 |
80 |
11 |
44 |
0,400 | |
