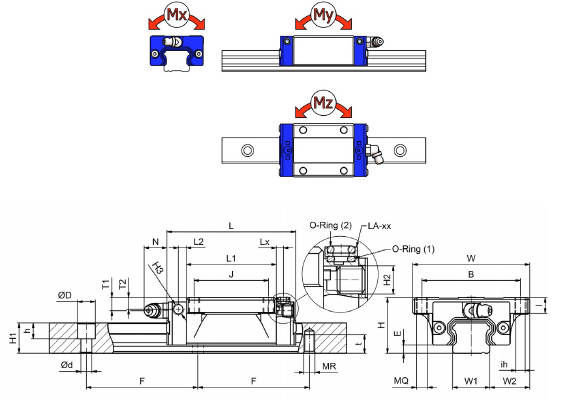

型号 |
H |
W |
System
mm
W2 |
E |
L
|
B |
J |
MQ |
ih |
I |
L1 |
Carriage
mm
H2 |
T1 |
N |
T2 |
L2 |
H3 |
Lx |
|
LGBCH15 |
FN |
24 |
47 |
16,0 |
3,4 |
58,6 |
38 |
30 |
M 5 |
4,4 |
7,5 |
40,2 |
M 3 x 0,5 |
5,5 |
2,5 |
4,5 |
4,20 |
M 3 x 0,5 |
3,0 |
|
LGBCH15 |
FL |
24 |
47 |
16,0 |
3,4 |
66,1 |
38 |
30 |
M 5 |
4,4 |
7,5 |
47,7 |
M 3 x 0,5 |
5,5 |
2,5 |
4,5 |
4,20 |
M 3 x 0,5 |
3,0 |
|
LGBCH20 |
FN |
30 |
63 |
21,5 |
4,5 |
70,1 |
53 |
40 |
M 6 |
5,4 |
9,0 |
48,5 |
M 6 x 1,0 |
7,1 |
12,3 |
6,3 |
4,25 |
M 6 x 1,0 |
3,8 |
|
LGBCH20 |
FL |
30 |
63 |
21,5 |
4,5 |
82,9 |
53 |
40 |
M 6 |
5,4 |
9,0 |
61,3 |
M 6 x 1,0 |
7,1 |
12,3 |
6,3 |
4,25 |
M 6 x 1,0 |
3,8 |
|
LGBCH20 |
FE |
30 |
63 |
21,5 |
4,5 |
98,1 |
53 |
40 |
M 6 |
5,4 |
9,0 |
76,5 |
M 6 x 1,0 |
7,1 |
12,3 |
6,3 |
4,25 |
M 6 x 1,0 |
3,8 |
|
LGBCH25 |
FN |
36 |
70 |
23,5 |
5,8 |
79,2 |
57 |
45 |
M 8 |
6,8 |
10,1 |
57,5 |
M 6 x 1,0 |
10,2 |
12,2 |
9,4 |
4,65 |
M 6 x 1,0 |
5,0 |
|
LGBCH25 |
FL |
36 |
70 |
23,5 |
5,8 |
93,9 |
57 |
45 |
M 8 |
6,8 |
10,1 |
72,2 |
M 6 x 1,0 |
10,2 |
12,2 |
9,4 |
4,65 |
M 6 x 1,0 |
5,0 |
|
LGBCH25 |
FE |
36 |
70 |
23,5 |
5,8 |
108,6 |
57 |
45 |
M 8 |
6,8 |
10,1 |
86,9 |
M 6 x 1,0 |
10,2 |
12,2 |
9,4 |
4,65 |
M 6 x 1,0 |
5,0 |
|
LGBCH30 |
FS |
42 |
90 |
31,0 |
7,0 |
64,2 |
72 |
-- |
M 10 |
8,6 |
12,0 |
37,2 |
M 6 x 1,0 |
10,0 |
11,7 |
5,5 |
6,00 |
M 6 x 1,0 |
5,0 |
|
LGBCH30 |
FN |
42 |
90 |
31,0 |
7,0 |
94,8 |
72 |
52 |
M 10 |
8,6 |
12,0 |
67,8 |
M 6 x 1,0 |
10,0 |
11,7 |
5,5 |
6,00 |
M 6 x 1,0 |
5,0 |
|
LGBCH30 |
FL |
42 |
90 |
31,0 |
7,0 |
105,0 |
72 |
52 |
M 10 |
8,6 |
12,0 |
78,0 |
M 6 x 1,0 |
10,0 |
11,7 |
5,5 |
6,00 |
M 6 x 1,0 |
5,0 |
|
LGBCH30 |
FE |
42 |
90 |
31,0 |
7,0 |
130,5 |
72 |
52 |
M 10 |
8,6 |
12,0 |
103,5 |
M 6 x 1,0 |
10,0 |
11,7 |
5,5 |
6,00 |
M 6 x 1,0 |
5,0 |
|
LGBCH35 |
FS |
48 |
100 |
33,0 |
7,5 |
75,5 |
82 |
-- |
M 10 |
8,6 |
14,0 |
44,5 |
M 6 x 1,0 |
11,5 |
11,5 |
10,5 |
7,25 |
M 6 x 1,0 |
5,0 |
|
LGBCH35 |
FN |
48 |
100 |
33,0 |
7,5 |
111,5 |
82 |
62 |
M 10 |
8,6 |
14,0 |
80,5 |
M 6 x 1,0 |
11,5 |
11,5 |
10,5 |
7,25 |
M 6 x 1,0 |
5,0 |
|
LGBCH35 |
FL |
48 |
100 |
33,0 |
7,5 |
123,5 |
82 |
62 |
M 10 |
8,6 |
14,0 |
92,5 |
M 6 x 1,0 |
11,5 |
11,5 |
10,5 |
7,25 |
M 6 x 1,0 |
5,0 |
|
LGBCH35 |
FE |
48 |
100 |
33,0 |
7,5 |
153,5 |
82 |
62 |
M 10 |
8,6 |
14,0 |
122,5 |
M 6 x 1,0 |
11,5 |
11,5 |
10,5 |
7,25 |
M 6 x 1,0 |
5,0 |
|
LGBCH45 |
FN |
60 |
120 |
37,5 |
8,9 |
129,0 |
100 |
80 |
M 12 |
10,6 |
16,0 |
94,0 |
M 8 x 1,25 |
14,4 |
10,8 |
14,5 |
8,00 |
M 8 x 1,25 |
7,5 |
|
LGBCH45 |
FL |
60 |
120 |
37,5 |
8,9 |
145,0 |
100 |
80 |
M 12 |
10,6 |
16,0 |
110,0 |
M 8 x 1,25 |
14,4 |
10,8 |
14,5 |
8,00 |
M 8 x 1,25 |
7,5 |
|
LGBCH45 |
FE |
60 |
120 |
37,5 |
8,9 |
174,0 |
100 |
80 |
M 12 |
10,6 |
16,0 |
139,0 |
M 8 x 1,25 |
14,4 |
10,8 |
14,5 |
8,00 |
M 8 x 1,25 |
7,5 |
|
LGBCH55 |
FN |
70 |
140 |
43,5 |
12,7 |
155,0 |
116 |
95 |
M 14 |
12,6 |
19,0 |
116,0 |
M 8 x 1,25 |
14,0 |
10,8 |
14,5 |
10,00 |
M 8 x 1,25 |
7,5 |
|
LGBCH55 |
FL |
70 |
140 |
43,5 |
12,7 |
193,0 |
116 |
95 |
M 14 |
12,6 |
19,0 |
154,0 |
M 8 x 1,25 |
14,0 |
10,8 |
14,5 |
10,00 |
M 8 x 1,25 |
7,5 |
|
LGBCH55 |
FE |
70 |
140 |
43,5 |
12,7 |
210,0 |
116 |
95 |
M 14 |
12,6 |
19,0 |
171,0 |
M 8 x 1,25 |
14,0 |
10,8 |
14,5 |
10,00 |
M 8 x 1,25 |
7, 5 |
|
W1 |
H1 |
F |
Rail [mm]
Version L
d |
D |
h |
Version
C MR
t |
|
Load rating
kN
C |
C0 |
MX |
kNm
MY |
MZ |
Mass
kg
Carriage l |
kg/ m
Rai |
型号 |
|
15 |
13 |
60 |
4,5 |
7,5 |
5,5 |
M 5 |
8,0 |
11,67 |
19,90 |
0,137 |
0,120 |
0,120 |
0,21 |
1,28 |
LGBCH15 |
FN |
|
15 |
13 |
60 |
4,5 |
7,5 |
5,5 |
M 5 |
8,0 |
14,12 |
24,05 |
0,166 |
0,171 |
0,171 |
0,23 |
1,28 |
LGBCH15 |
FL |
|
20 |
16,3 |
60 |
6,0 |
9,5 |
8,7 |
M 6 |
10,0 |
17,98 |
30,96 |
0,289 |
0,224 |
0,224 |
0,40 |
2,15 |
LGBCH20 |
FN |
|
20 |
16,3 |
60 |
6,0 |
9,5 |
8,7 |
M 6 |
10,0 |
23,30 |
40,11 |
0,376 |
0,366 |
0,366 |
0,46 |
2,15 |
LGBCH20 |
FL |
|
20 |
16,3 |
60 |
6,0 |
9,5 |
8,7 |
M 6 |
10,0 |
27,85 |
49,61 |
0,464 |
0,565 |
0,565 |
0,61 |
2,15 |
LGBCH20 |
FE |
|
23 |
19,2 |
60 |
7,0 |
11,0 |
9,2 |
M 6 |
12,0 |
25,25 |
41,73 |
0,447 |
0,358 |
0,358 |
0,57 |
2,88 |
LGBCH25 |
FN |
|
23 |
19,2 |
60 |
7,0 |
11,0 |
9,2 |
M 6 |
12,0 |
32,44 |
53,63 |
0,576 |
0,577 |
0,577 |
0,72 |
2,88 |
LGBCH25 |
FL |
|
23 |
19,2 |
60 |
7,0 |
11,0 |
9,2 |
M 6 |
12,0 |
36,58 |
64,30 |
0,691 |
0,833 |
0,833 |
0,89 |
2,88 |
LGBCH25 |
FE |
|
28 |
22,8 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
15,0 |
18,50 |
27,51 |
0,356 |
0,153 |
0,153 |
0,80 |
4,45 |
LGBCH30 |
FS |
|
28 |
22,8 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
15,0 |
37,33 |
55,50 |
0,719 |
0,560 |
0,560 |
1,10 |
4,45 |
LGBCH30 |
FN |
|
28 |
22,8 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
15,0 |
48,35 |
71,88 |
0,931 |
0,836 |
0,836 |
1,34 |
4,45 |
LGBCH30 |
FL |
|
28 |
22,8 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
15,0 |
53,83 |
88,18 |
1,142 |
1,361 |
1,361 |
1,66 |
4,45 |
LGBCH30 |
FE |
|
34 |
26,0 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
17,0 |
26,72 |
41,43 |
0,655 |
0,275 |
0,275 |
1,00 |
6,25 |
LGBCH35 |
FS |
|
34 |
26,0 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
17,0 |
53,31 |
82,66 |
1,307 |
0,991 |
0,991 |
1,50 |
6,25 |
LGBCH35 |
FN |
|
34 |
26,0 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
17,0 |
66,61 |
103,29 |
1,633 |
1,424 |
1,424 |
1,90 |
6,25 |
LGBCH35 |
FL |
|
34 |
26,0 |
80 |
9,0 |
14,0 |
12,2 |
M 8 |
17,0 |
73,29 |
127,68 |
2,020 |
2,330 |
2,330 |
2,54 |
6,25 |
LGBCH35 |
FE |
|
45 |
31,1 |
105 |
14,0 |
20,0 |
17,0 |
M 12 |
20,0 |
73,14 |
111,30 |
2,353 |
1,559 |
1,559 |
2,27 |
9,60 |
LGBCH45 |
FN |
|
45 |
31,1 |
105 |
14,0 |
20,0 |
17,0 |
M 12 |
20,0 |
86,99 |
132,39 |
2,798 |
2,170 |
2,170 |
2,68 |
9,60 |
LGBCH45 |
FL |
|
45 |
31,1 |
105 |
14,0 |
20,0 |
17,0 |
M 12 |
20,0 |
100,52 |
166,87 |
3,527 |
3,455 |
3,455 |
3,42 |
9,60 |
LGBCH45 |
FE |
|
53 |
38,0 |
120 |
16,0 |
23,0 |
20,0 |
M 14 |
24,0 |
88,26 |
136,62 |
3,385 |
2,361 |
2,361 |
3,44 |
13,80 |
LGBCH55 |
FN |
|
53 |
38,0 |
120 |
16,0 |
23,0 |
20,0 |
M 14 |
24,0 |
119,10 |
183,14 |
4,538 |
4,202 |
4,202 |
4,63 |
13,80 |
LGBCH55 |
FL |
|
53 |
38,0 |
120 |
16,0 |
23,0 |
20,0 |
M 14 |
24,0 |
161,43 |
259,71 |
6,430 |
6,617 |
6,617 |
5,16 |
13,80 |
LGBCH55 |
FE |
|
