座心INS-LT7-30M、INS-LT10-203

Series	Shaft Size	700 Series			1000 Series
		Part No.	LT700 Series Description	Wt.	Part No.		LT1000 Series Description	Wt.
204	3/4 20mm	033585 034454	INS-LT7-012 INS-LT7-20M	0.30 0.14	033610 034455		INS-LT10-012 INS-LT10-20M	0.30 0.14
205	7/8	033586	INS-LT7-014	0.50	033611		INS-LT10-014	0.50
	15/16	033587	INS-LT7-015	0.40	033612		INS-LT10-015	0.40
	1	033588	INS-LT7-100	0.30	033613		INS-LT10-100	0.30
	25mm	034456	INS-LT7-25M	0.14	034457		INS-LT10-25M	0.14
206	1-1/8	033589	INS-LT7-102	0.70	033614		INS-LT10-102	0.70
	1-3/16	033590	INS-LT7-103	0.60	033615		INS-LT10-103	0.60
	30mm	034458	INS-LT7-30M	0.32	034459		INS-LT10-30M	0.32
207	1-1/4	033591	INS-LT7-104	1.20	033616		INS-LT10-104	1.20
	1-3/8	033592	INS-LT7-106	1.00	033617		INS-LT10-106	1.00
	1-7/16	033593	INS-LT7-107	0.90	033618		INS-LT10-107	0.90
	1-1/2	033594	INS-LT7-108	0.80	033619		INS-LT10-108	0.80
	35mm	034460	INS-LT7-35M	0.45	034461		INS-LT10-35M	0.45
209	1-11/16	033595	INS-LT7-111	1.60	033620		INS-LT10-111	1.60
	1-3/4	033596	INS-LT7-112	1.40	033621		INS-LT10-112	1.40
	40mm	034462	INS-LT7-40M	0.73	034463		INS-LT10-40M	0.73
	45mm	034464	INS-LT7-45M	0.64	034465		INS-LT10-45M	0.64
210	1-15/16	033597	INS-LT7-115	1.80	033622		INS-LT10-115	1.80
	2	033598	INS-LT7-200	1.60	033623		INS-LT10-200	1.60
	50mm	034466	INS-LT7-50M	0.73	034467		INS-LT10-50M	0.73
211	2-3/16	033599	INS-LT7-203	2.30	033624		INS-LT10-203	2.30
212	2-7/16	033600	INS-LT7-207	3.20	033625		INS-LT10-207	3.20
	2-1/2	033601	INS-LT7-208	3.00	033626		INS-LT10-208	3.00
	60mm	034468	INS-LT7-60M	1.45	034469		INS-LT10-60M	1.45
215	2-15/16	033602	INS-LT7-215	5.80	033627		INS-LT10-215	5.80
	3	034117	INS-LT7-300	5.50	034525		INS-LT10-300	5.50
	70mm 75mm	034470 034472	INS-LT7-70M INS-LT7-75M	2.50	034471 034473		INS-LT10-70M INS-LT10-75M	2.50

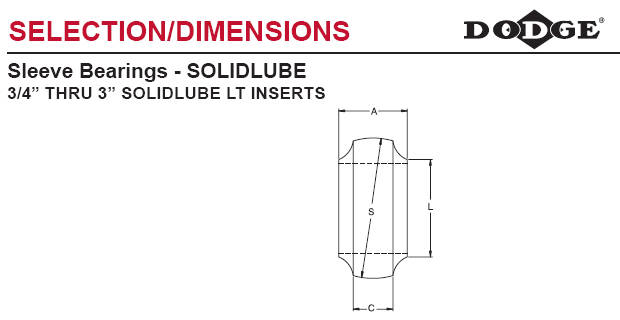

Series	Shaft Size	A	C	L		S
204	3/4 20mm	1 25.4	5/8 15.9	1-3/8 34.9		1.8445/1.8425 46.850 / 46.800
205	7/8	1-1/16	5/8	1-9/16		2.0415/2.0395
	15/16 1
	25mm	27.0	15.9	39.7		51.854 / 51.803
206	1-1/8 1-3/16	1-3/16	11/16	1-13/16		2.435/2.433
	30mm	30.2	17.5	46.0		61.849 / 61.798
207	1-1/4	1-5/16	13/16	2-1/8		2.829/2.827
	1-3/8 1-7/16
	1-1/2
	35mm	33.3	20.6	54.0		71.857 / 71.806
209	1-11/16 1-3/4 40mm 45mm	1-9/16 39.7	13/16 20.6	2-9/16 65.1		3.3415/3.3395 84.874 / 84.823
210	1-15/16 2	1-5/8	7/8	2-13/16		3.5375/3.5355
	50mm	41.3	22.2	71.4		89.853 / 89.802
211	2-3/16	1-3/4	15/16	3-1/8		3.932/3.930
212	2-7/16 2-1/2	1-13/16	1-1/16	3-1/2		4.326/4.324
	60mm	46.0	27.0	88.9		109.880 / 109.830
215	2-15/16 3 70mm 75mm	2-23/32 69.1	1-3/16 30.2	3-15/16 100.0		5.1135/5.1115 129.883 / 129.832
