TP-GLT7-300、TP-GLT7-208

Shaft Size	700 Series					1000 Series				Frame Size
	Part No.		Description			Part No.		Description	Wt.
1-15/16 2	033739 033740		TP-GLT7-115 TP-GLT7-200			033750 033751		TP-GLT10-115 TP-GLT10-200	10.1	TP10
2-3/16	033741		TP-GLT7-203			033752		TP-GLT10-203	11.8	TP20
2-7/16 2-1/2	033742 033743		TP-GLT7-207 TP-GLT7-208			033753 033754		TP-GLT10-207 TP-GLT10-208	14.1	TP30
2-15/16 3	033744 033745		TP-GLT7-215 TP-GLT7-300			033755 033756		TP-GLT10-215 TP-GLT10-300	17.0	TP40

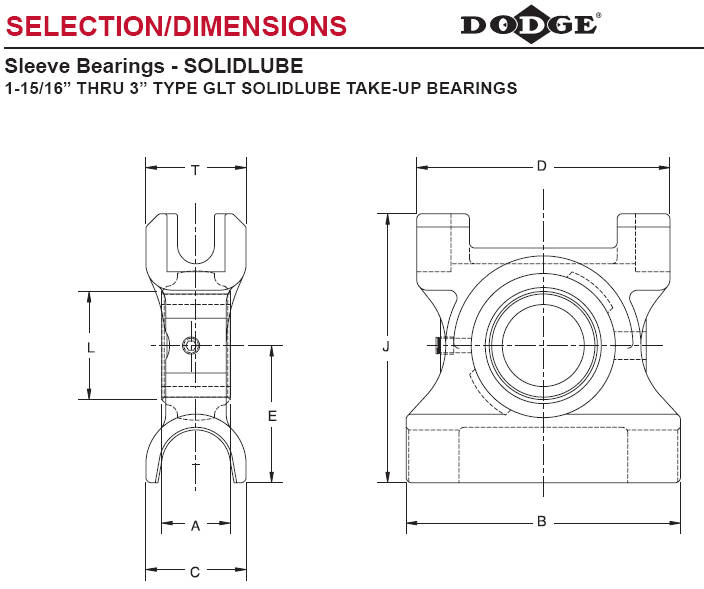

Shaft Size	A	B		C	D	E	J	L	T
1-15/16 2	1-5/8	6-1/2		2-3/8	6	3-1/4	6-3/8	2-13/16	2-3/8
2-3/16	1-3/4	7		2-1/2	6-3/4	3-3/8	6-7/8	3-1/8	2-3/8
2-7/16 2-1/2	1-13/16	7-1/2		2-3/4	7	3-1/2	7-7/16	3-1/2	2-3/4
2-15/16 3	2-23/32	8-1/2		2-1/2	8	4	8-5/16	3-15/16	2-3/4
