四孔座 F4B-MM7-308、F4B-MM7-407

Shaft Size

700 Series

1000 Series

Wt.

Part No.

Description

Part No.

Description

3-7/16

033323

F4B-MM7-307

033868

F4B-MM10-307

17.00

3-1/2

033321

F4B-MM7-308

033931

F4B-MM10-308

18.00

3-15/16 4

032923 032937

F4B-MM7-315  F4B-MM7-400

033899 033932

F4B-MM10-315  F4B-MM10-400

26.00

4-7/16 4-1/2

033862 033863

F4B-MM7-407  F4B-MM7-408

033933 033934

F4B-MM10-407  F4B-MM10-408

42.00

4-15/16 5

033929 033930

F4B-MM7-415  F4B-MM7-500

033869 033867

F4B-MM10-415  F4B-MM10-500

62.00

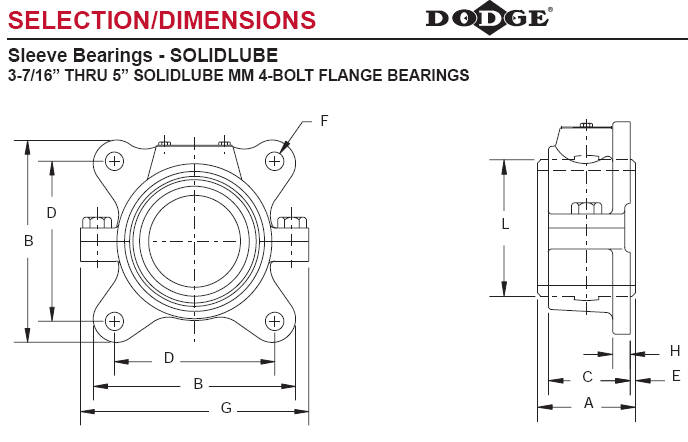

Shaft Size

A

B

C

D

E

F

G

H

L

3-7/16 3-1/2

3-1/2

7-5/8

2-59/64

6

3/16

5/8

8-9/16

5/8

4- 7/8

3-15/16 4

4

8-7/8

3-11/32

6-7/8

1/4

3/4

9-1/2

11/16

5- 5/8

4-7/16 4-1/2

4-1/2

10-1/4

3-23/32

8-1/8

1/4

7/8

11-3/8

3/4

6-15/16

4-15/16 5

5

11-7/16

4- 5/8

9-3/16

1/8

1

12-7/8

13/16

7- 9/16
