| P2B-LT7-30M、P2B-LT7-107、P2B-LT7-103 |
|
上海川代轴承机械有限公司 新闻动态 2025-11-30
|
 |
|
Series |
Shaft
Size |
700 SERIES |
1000 SERIES |
Used on
Frame |
|
Part Number |
Description |
Wt. |
Part Number |
Description |
Wt. |
|
204 |
3/4
20mm |
033667
034225 |
P2B-LT7-012
P2B-LT7-20M |
1.70
0.77 |
033977
034234 |
P2B-LT10-012
P2B-LT10-20M |
1.70
0.77 |
LD-10
LD-10 |
|
205 |
7/8 |
033668 |
P2B-LT7-014 |
1.60 |
033978 |
P2B-LT10-014 |
1.60 |
LD-10 |
|
15/16 |
033669 |
P2B-LT7-015 |
1.50 |
033979 |
P2B-LT10-015 |
1.50 |
|
1 |
033670 |
P2B-LT7-100 |
1.40 |
033980 |
P2B-LT10-100 |
1.40 |
|
25mm |
034226 |
P2B-LT7-25M |
0.64 |
034235 |
P2B-LT10-25M |
0.64 |
LD-10 |
|
206 |
1-1/8
1-3/16 |
033672
033673 |
P2B-LT7-102
P2B-LT7-103 |
2.80
2.70 |
033982
033983 |
P2B-LT10-102
P2B-LT10-103 |
2.80
2.70 |
LD-20 |
|
30mm |
034227 |
P2B-LT7-30M |
1.22 |
034236 |
P2B-LT10-30M |
1.22 |
LD-20 |
|
207 |
1-1/4 |
033674 |
P2B-LT7-104 |
4.20 |
033984 |
P2B-LT10-104 |
4.20 |
LD-20 |
|
1-3/8 |
033676 |
P2B-LT7-106 |
3.90 |
033986 |
P2B-LT10-106 |
3.90 |
|
1-7/16 |
033677 |
P2B-LT7-107 |
3.80 |
033987 |
P2B-LT10-107 |
3.80 |
|
1-1/2 |
033678 |
P2B-LT7-108 |
3.70 |
033988 |
P2B-LT10-108 |
3.70 |
|
|
35mm |
034228 |
P2B-LT7-35M |
1.77 |
034237 |
P2B-LT10-35M |
1.77 |
LD-20 |
|
209 |
1-11/16
1-3/4
40mm
45mm |
033680
033681
034229
034230 |
P2B-LT7-111
P2B-LT7-112
P2B-LT7-40M
P2B-LT7-45M |
6.00
5.80
2.72
2.63 |
033990
033991
034238
034239 |
P2B-LT10-111
P2B-LT10-112
P2B-LT10-40M
P2B-LT10-45M |
6.00
5.80
2.72
2.63 |
LD-20
LD-20 |
|
210 |
1-15/16
2 |
033682
033683 |
P2B-LT7-115
P2B-LT7-200 |
6.80
6.60 |
033992
033993 |
P2B-LT10-115
P2B-LT10-200 |
6.80
6.60 |
LD-30 |
|
50mm |
034231 |
P2B-LT7-50M |
3.08 |
034240 |
P2B-LT10-50M |
3.08 |
LD-30 |
|
211 |
2-3/16 |
033684 |
P2B-LT7-203 |
8.00 |
033994 |
P2B-LT10-203 |
8.00 |
LD-40 |
|
212 |
2-7/16
2-1/2 |
033686
033687 |
P2B-LT7-207
P2B-LT7-208 |
10.10
9.80 |
033996
033997 |
P2B-LT10-207
P2B-LT10-208 |
10.10
9.80 |
LD-40 |
|
60mm |
034221 |
P2B-LT7-60M |
4.58 |
034241 |
P2B-LT10-60M |
4.58 |
LD-40 |
|
215 |
2-15/16
3
70mm
75mm |
033688
033077
034232
034233 |
P2B-LT7-215
P2B-LT7-300
P2B-LT7-70M
P2B-LT7-75M |
21.20
20.90
9.98
9.62 |
033998
033974
034242
034243 |
P2B-LT10-215
P2B-LT10-300
P2B-LT10-70M
P2B-LT10-75M |
21.20
20.90
9.98
9.62 |
LD-45
LD-45 |
|

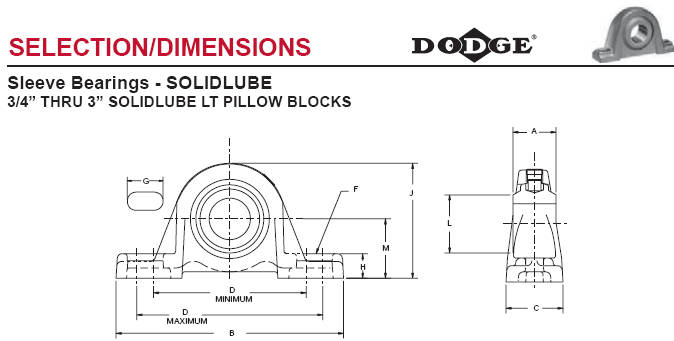

Series
Size |
Shaft |
A |
B |
C |
D |
F
Bolt Dia. |
G |
H |
J |
L |
M |
|
Min. |
Max. |
|
204 |
3/4
20mm |
1
25.4 |
5-1/4
133.4 |
1-11/32
34.1 |
3-3/8
85.7 |
4-3/16
106.4 |
3/8
10 |
27/32
21.4 |
15/32
11.9 |
2-1/2
63.5 |
1-3/8
34.9 |
1-1/4
31.8 |
|
205 |
7/8 |
1-1/16 |
5-1/2 |
1-13/32 |
3-11/16 |
4-1/2 |
3/8 |
27/32 |
15/32 |
2-21/32 |
1-9/16 |
1-5/16 |
|
15/16
1 |
|
25mm |
27.0 |
139.7 |
35.7 |
93.7 |
114.3 |
10 |
21.4 |
11.9 |
67.5 |
39.7 |
33.3 |
|
206 |
1-1/8
1-3/16 |
1-3/16 |
6-1/4 |
1-3/4 |
4-1/4 |
5 |
1/2 |
15/16 |
5/8 |
3-3/16 |
1-13/16 |
1-9/16 |
|
30mm |
30.2 |
158.8 |
44.5 |
108.0 |
127.0 |
12 |
23.8 |
15.9 |
81.0 |
46.0 |
39.7 |
|
207 |
1-1/4 |
1-5/16 |
6-1/2 |
1-3/4 |
4-11/16 |
5-7/16 |
1/2 |
15/16 |
21/32 |
3-11/16 |
2-1/8 |
1-13/16 |
|
1-3/8
1-7/16 |
|
1-1/2 |
|
|
|
|
|
|
|
|
|
|
|
|
35mm |
33.3 |
165.1 |
44.5 |
119.1 |
138.1 |
12 |
23.8 |
16.7 |
93.7 |
54.0 |
46.0 |
|
209 |
1-11/16
1-3/4
40mm
45mm |
1-9/16
39.7 |
7-7/16
188.9 |
2
50.8 |
5-1/2
139.7 |
6-3/16
157.2 |
1/2
12 |
29/32
23.0 |
11/16
17.5 |
4-7/32
107.2 |
2-9/16
65.1 |
2-1/16
52.4 |
|
210 |
1-15/16
2 |
1-5/8 |
8-1/8 |
2-1/4 |
6 |
6-11/16 |
5/8 |
1-1/32 |
11/16 |
4-15/32 |
2-13/16 |
2-3/16 |
|
50mm |
41.3 |
206.4 |
57.1 |
152.4 |
170.0 |
16 |
26.2 |
17.5 |
113.5 |
71.4 |
55.6 |
|
211 |
2-3/16 |
1-3/4 |
8-7/8 |
2-5/16 |
6-3/8 |
7-7/16 |
5/8 |
1-7/32 |
13/16 |
4-29/32 |
3-1/8 |
2-7/16 |
|
212 |
2-7/16
2-1/2 |
1-13/16 |
9-1/2 |
2-3/8 |
6-7/8 |
7-15/16 |
5/8 |
1-7/32 |
13/16 |
5-11/32 |
3-1/2 |
2-11/16 |
|
60mm |
46.0 |
241.3 |
60.3 |
174.6 |
201.6 |
16 |
31.0 |
20.6 |
135.7 |
88.9 |
68.3 |
|
215 |
2-15/16
3
70mm
75mm |
2-23/32
69.1 |
11-3/4
298.5 |
2-7/8
73.0 |
8-1/2
215.9 |
9-1/2
241.3 |
7/8
22 |
1-7/16
36.5 |
1-1/16
. . . . |
6-9/16
. . . . |
3-15/16
100.0 |
3-5/16
. . . . | |
P2B-LT7-30M、P2B-LT7-107、P2B-LT7-103现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
