INS-IP-207R、INS-IP-215R

Bearing Series	Shaft Size		TRIDENT Seal			Labyrinth Seal
			Part Number		Part Name	Part Number	Part Name
22213	2-1/4		071592		INS-IPE-204R	071595	INS-IPE-204L
	2-3/8		070894		INS-IP-206R	070926	INS-IP-206L
	2-7/16		070895		INS-IP-207R	070927	INS-IP-207L
	2-1/2		070896		INS-IP-208R	070928	INS-IP-208L
22215	2-11/16		070897		INS-IP-211R	070929	INS-IP-211L
	2-3/4		070898		INS-IP-212R	070930	INS-IP-212L
	2-15/16		070899		INS-IP-215R	070931	INS-IP-215L
	3		070900		INS-IP-300R	070932	INS-IP-300L
22218	3-3/16		070901		INS-IP-303R	070933	INS-IP-303L
	3-1/4		070902		INS-IP-304R	070934	INS-IP-304L
	3-7/16		070903		INS-IP-307R	070935	INS-IP-307L
	3-1/2		070904		INS-IP-308R	070936	INS-IP-308L
22220	3-11/16		070905		INS-IP-311R	070937	INS-IP-311L
	3-15/16		070906		INS-IP-315R	070938	INS-IP-315L
	4		070907		INS-IP-400R	070939	INS-IP-400L
22222	4-7/16 4-1/2		070908 070909		INS-IP-407R INS-IP-408R	070940 070941	INS-IP-407L INS-IP-408L
22226	4-15/16 5		070910 070911		INS-IP-415R INS-IP-500R	070942 070943	INS-IP-415L INS-IP-500L

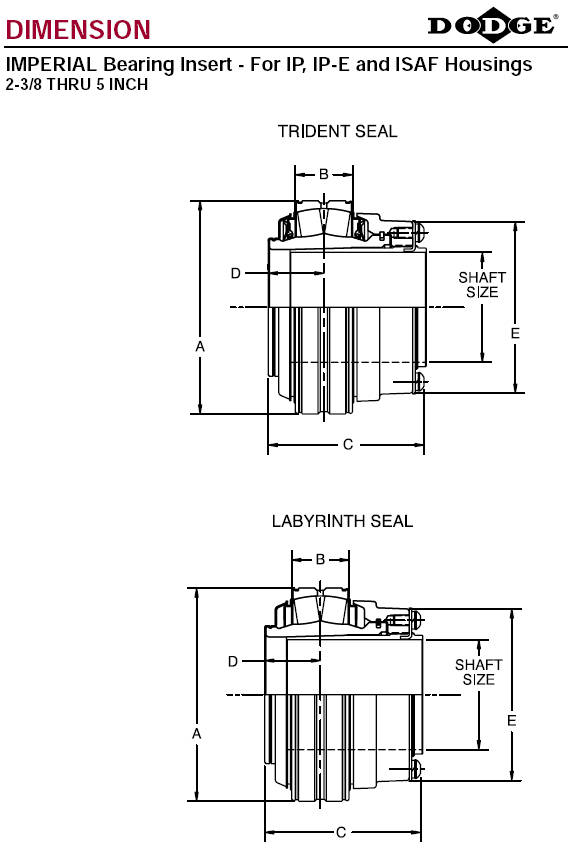

SHAFT SIZE	A	B	C	D	E
2-1/4 * 2-3/8 2-7/16 2-1/2	4.7241	1-9/32	3-27/64	1.208	3-7/8
2-11/16 2-3/4 2-15/16 3	5.1181	1-9/32	3-1/2	1.219	4-9/32
3-3/16 3-1/4 3-7/16 3-1/2	6.2992	1-5/8	4-11/64	1.483	5
3-11/16 3-15/16 4	7.0866	1-7/8	4-45/64	1.646	5-9/16
4-7/16 4-1/2	7.8740	2-5/32	5-15/64	1.935	6-7/16
4-15/16 5	9.0551	2-19/32	5-63/64	2.107	7-5/8
