INS-IP-103R、INS-IP-107R座心

Bearing Series	Shaft Size - Inch	TRIDENT Seal				Labyrinth Seal
		Part Number		Part Name		Part Number	Part Name
22208	1-1/8	070880		INS-IP-102R		070912	INS-IP-102L
	1-3/16	070881		INS-IP-103R		070913	INS-IP-103L
	1-1/4	070882		INS-IP-104R		070914	INS-IP-104L
	1-3/8	070883		INS-IP-106R		070915	INS-IP-106L
	1-7/16	070884		INS-IP-107R		070916	INS-IP-107L
	1-1/2	070885		INS-IP-108R		070917	INS-IP-108L
22209	1-1/2 *	071590		INS-IPE-108R		071593	INS-IPE-108L
	1-5/8	070886		INS-IP-110R		070918	INS-IP-110L
	1-11/16	070887		INS-IP-111R		070919	INS-IP-111L
	1-3/4	070888		INS-IP-112R		070920	INS-IP-112L
22210	1-3/4 *	071591		INS-IPE-112R		071594	INS-IPE-112L
	1-7/8	070889		INS-IP-114R		070921	INS-IP-114L
	1-15/16	070890		INS-IP-115R		070922	INS-IP-115L
	2	070891		INS-IP-200R		070923	INS-IP-200L
22211	2-3/16 2-1/4	070892 070893		INS-IP-203R INS-IP-204R		070924 070925	INS-IP-203L INS-IP-204L

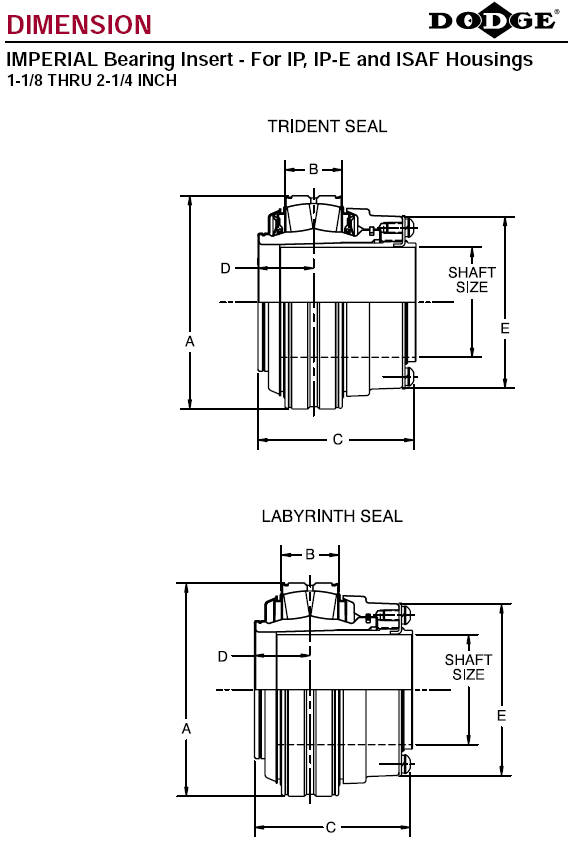

SHAFT SIZE	A	B	C		D	E
1-1/8 1-3/16 1-1/4 1-3/8 1-7/16 1-1/2	3.1496	61/64	2-5/8		0.97	2-23/32
1-1/2 * 1-5/8 1-11/16 1-3/4	3.3465	61/64	2-13/16		0.954	3
1-3/4 * 1-7/8 1-15/16 2	3.5433	61/64	2-55/64		0.977	3-9/32
2-3/16 2-1/4	3.937	1-3/64	3-1/32		1.05	3-1/2
