Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal Non-Expansion

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22213

2-7/16

070058

P4B515-ISAF-207R

070068

P4B515-ISAF-207RE

070078

P4B515-ISAF-207L

070088

P4B515-ISAF-207LE

22215

2-11/16

070094

P4B516-ISAF-211R

070095

P4B516-ISAF-211RE

070096

P4B516-ISAF-211L

070097

P4B516-ISAF-211LE

22215

2-15/16

070059

P4B517-ISAF-215R

070069

P4B517-ISAF-215RE

070079

P4B517-ISAF-215L

070089

P4B517-ISAF-215LE

22218

3-7/16

070060

P4B520-ISAF-307R

070070

P4B520-ISAF-307RE

070080

P4B520-ISAF-307L

070090

P4B520-ISAF-307LE

22220

3-15/16

070061

P4B522-ISAF-315R

070071

P4B522-ISAF-315RE

070081

P4B522-ISAF-315L

070091

P4B522-ISAF-315LE

22222

4-7/16

070062

P4B526-ISAF-407R

070072

P4B526-ISAF-407RE

070082

P4B526-ISAF-407L

070092

P4B526-ISAF-407LE

22226

4-15/16

070063

P4B528-ISAF-415R

070073

P4B528-ISAF-415RE

070083

P4B528-ISAF-415L

070093

P4B528-ISAF-415LE

22228

5-7/16 5-1/2

037850 037903

P4B532-ISAF-507R P4B532-ISAF-508R

037854 037904

P4B532-ISAF-507RE P4B532-ISAF-508RE

037901 037905

P4B532-ISAF-507L P4B532-ISAF-508L

037902 037906

P4B532-ISAF-507LE P4B532-ISAF-508LE

22232

5-15/16 6

037851 037909

P4B534-ISAF-515R P4B534-ISAF-600R

037855 037910

P4B534-ISAF-515RE P4B534-ISAF-600RE

037907 037911

P4B534-ISAF-515L P4B534-ISAF-600L

037908 037912

P4B534-ISAF-515LE P4B534-ISAF-600LE

22236

6-7/16 6-1/2

037852 037915

P4B536-ISAF-607R P4B536-ISAF-608R

037856 037916

P4B536-ISAF-607RE P4B536-ISAF-608RE

037913 037917

P4B536-ISAF-607L P4B536-ISAF-608L

037914 037918

P4B536-ISAF-607LE P4B536-ISAF-608LE

22236

6-15/16 7

037853 037921

P4B538-ISAF-615R P4B538-ISAF-700R

037857 037922

P4B538-ISAF-615RE P4B538-ISAF-700RE

037919 037923

P4B538-ISAF-615L P4B538-ISAF-700L

037920 037924

P4B538-ISAF-615LE P4B538-ISAF-700LE

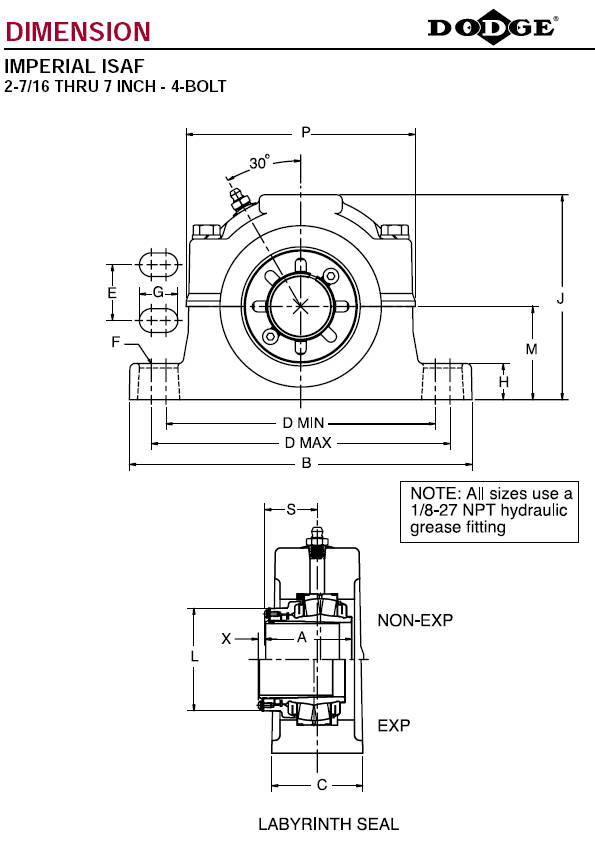

Shaft Size

SAF Series

A

B

C

D Min                Max

E

F Bolts

G

2-7/16

515

3-27/64

11-1/8

3-1/8

8-5/8

9-5/8

1-7/8

1/2

1-1/8

2-11/16

516

3-1/2

12-19/32

3-1/2

9-7/8

11

2-1/8

5/8

1-5/16

2-15/16

517

3-1/2

12-19/32

3-1/2

9-7/8

11

2-1/8

5/8

1-5/16

3-7/16

520

4-5/32

15-23/64

4-11/32

11-13/16

13-1/8

2-3/8

3/4

1-5/8

3-15/16

522

4-45/64

16-1/2

4-3/4

12-19/32

14-1/2

2-3/4

3/4

1-53/64

4-7/16

526

5-15/64

18-3/8

5-1/8

14-1/2

16

3-1/4

7/8

1-3/4

4-15/16

528

5-63/64

19-45/64

5-7/8

15-5/8

17-3/8

3-3/8

1

2

5-7/16 5-1/2

532

6-11/64

21-21/32

6-1/4

17-3/8

19-1/4

3-3/4

1

2-1/16

5-15/16 6

534

7-5/64

24-3/4

6-3/4

19-3/8

21-5/8

4-1/4

1

2-1/4

6-7/16 6-1/2

536

7-25/64

26-3/4

7-1/8

20-7/8

23-5/8

4-5/8

1

2-1/2

6-15/16 7

538

7-25/64

28

7-1/2

21-5/8

24-3/8

4-1/2

1-1/4

2-3/4

Shaft Size

SAF Series

H

J

L

M

P

S

X Expansion

2-7/16

515

1-1/4

6-55/64

3-7/8

3-1/4

7-27/64

2-1/16

5/16

2-11/16

516

1

7-1/2

4-9/32

3-1/2

8-5/16

2-5/32

15/64

2-15/16

517

1-1/4

7-3/4

4-9/32

3-3/4

8-5/16

2-5/32

15/64

3-7/16

520

1-21/32

9-1/4

5

4-1/2

10-1/8

2-31/64

3/8

3-15/16

522

1-25/32

10-3/16

5-9/16

4-15/16

10-23/32

2-55/64

3/8

4-7/16

526

2-1/16

11-21/32

6-7/16

6

12-15/32

3-3/32

3/8

4-15/16

528

2-1/16

12-13/32

7-5/8

6

13-3/8

3-11/16

3/8

5-7/16 5-1/2

532

2-11/32

12-1/2

8-3/4

6-11/16

13-3/8

3-41/64

3/8

5-15/16 6

534

2-7/8

13-11/16

10-1/4

7-1/16

15-3/32

4-7/64

3/8

6-7/16 6-1/2

536

3

15-1/8

11-13/32

7-1/2

17-3/8

4-11/32

3/8

6-15/16 7

538

3-1/8

15-1/2

11-13/32

7-7/8

17-3/8

4-11/32

3/8
