重力座P2B509-ISAF-107R、P2B511-ISAF-115R

Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22208

1-7/16

070054

P2B509-ISAF-107R

070064

P2B509-ISAF-107RE

070074

P2B509-ISAF-107L

070084

P2B509-ISAF-107LE

22209

1-11/16

070055

P2B510-ISAF-111R

070065

P2B510-ISAF-111RE

070075

P2B510-ISAF-111L

070085

P2B510-ISAF-111LE

22210

1-15/16

070056

P2B511-ISAF-115R

070066

P2B511-ISAF-115RE

070076

P2B511-ISAF-115L

070086

P2B511-ISAF-115LE

22211

2-3/16

070057

P2B513-ISAF-203R

070067

P2B513-ISAF-203RE

070077

P2B513-ISAF-203L

070087

P2B513-ISAF-203LE

22213

2-7/16

070951

P2B515-ISAF-207R

070955

P2B515-ISAF-207RE

070959

P2B515-ISAF-207L

070963

P2B515-ISAF-207LE

22215

2-11/16

070952

P2B516-ISAF-211R

070956

P2B516-ISAF-211RE

070960

P2B516-ISAF-211L

070964

P2B516-ISAF-211LE

22215

2-15/16

070953

P2B517-ISAF-215R

070957

P2B517-ISAF-215RE

070961

P2B517-ISAF-215L

070965

P2B517-ISAF-215LE

22218

3-7/16

070954

P2B520-ISAF-307R

070958

P2B520-ISAF-307RE

070962

P2B520-ISAF-307L

070966

P2B520-ISAF-307LE

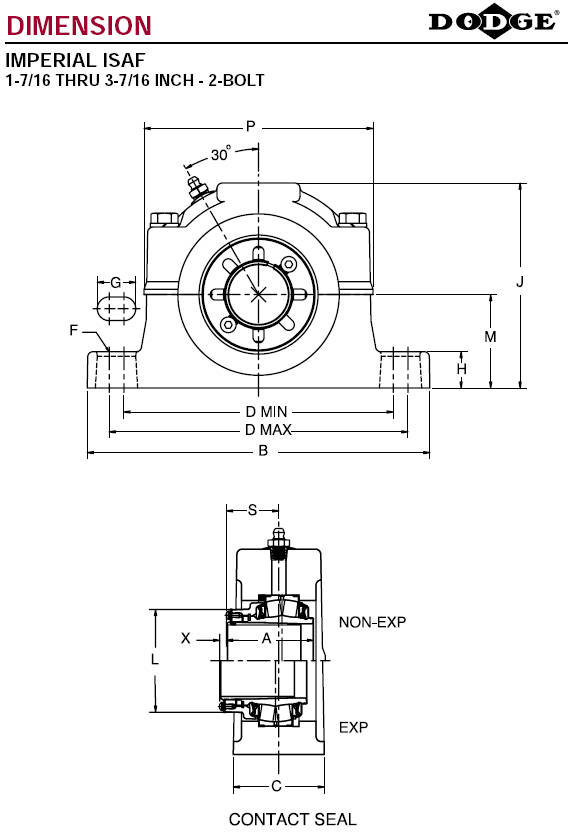

Shaft Size

SAF Series

A

B

C

D Min                  Max

F Bolts

G

1-7/16

509

2-5/8

8-1/4

2-3/16

6-1/4

7

1/2

15/16

1-11/16

510

2-13/16

8-1/4

2-3/8

6-1/2

7

1/2

7/8

1-15/16

511

2-55/64

9-5/8

2-3/4

7-3/8

8-1/4

5/8

1-13/64

2-3/16

513

3-1/32

11

3-1/4

8-21/32

9-1/2

5/8

1-5/32

2-7/16

515

3-27/64

11-1/8

3-1/8

8-5/8

9-5/8

5/8

1-1/8

2-11/16

516

3-1/2

12-19/32

3-1/2

9-7/8

11

3/4

1-5/16

2-15/16

517

3-1/2

12-19/32

3-1/2

9-7/8

11

3/4

1-5/16

3-7/16

520

4-5/32

15-23/64

4-11/32

11-13/16

13-1/8

7/8

1-5/8

Shaft Size

SAF Series

H

J

L

M

P

S

X Expansion

1-7/16

509

7/8

4-15/16

2-23/32

2-1/4

5-33/64

1-17/32

7/32

1-11/16

510

1-1/32

5-29/64

3

2-1/2

5-13/16

1-47/64

7/32

1-15/16

511

1-1/32

5-31/32

3-9/32

2-3/4

6-3/8

1-47/64

17/64

2-3/16

513

1-1/32

6-11/32

3-1/2

3

6-31/32

1-7/8

7/32

2-7/16

515

1-1/4

6-55/64

3-7/8

3-1/4

7-27/64

2-1/16

5/16

2-11/16

516

1

7-1/2

4-9/32

3-1/2

8-5/16

2-5/32

15/64

2-15/16

517

1-1/4

7-3/4

4-9/32

3-3/4

8-5/16

2-5/32

15/64

3-7/16

520

1-21/32

9-1/4

5

4-1/2

10-1/8

2-31/64

3/8
