拉力座WSTU-IP-206R、WSTU-IP-211R

Bearing

Shaft Size Inch

Take-Up  Frame

TRIDENT Seal

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

22213

2 - 3/8

CP-502

069354

WSTU-IP-206R

069382

WSTU-IP-206RE

2 - 7/16

069355

WSTU-IP-207R

069383

WSTU-IP-207RE

2 - 1/2

069356

WSTU-IP-208R

069384

WSTU-IP-208RE

22215

2 -11/16

CP-515

069357

WSTU-IP-211R

069385

WSTU-IP-211RE

2 - 3/4

069358

WSTU-IP-212R

069386

WSTU-IP-212RE

2 - 15/16

069359

WSTU-IP-215R

069387

WSTU-IP-215RE

3

069360

WSTU-IP-300R

069388

WSTU-IP-300RE

22218

3 - 3/16

CP-613

069361

WSTU-IP-303R

069389

WSTU-IP-303RE

3 - 1/4

069362

WSTU-IP-304R

069390

WSTU-IP-304RE

3 - 7/16

069363

WSTU-IP-307R

069391

WSTU-IP-307RE

3 - 1/2

069364

WSTU-IP-308R

069392

WSTU-IP-308RE

22220

3 - 11/16

CP-810

069365

WSTU-IP-311R

069393

WSTU-IP-311RE

3 - 15/16

069366

WSTU-IP-315R

069394

WSTU-IP-315RE

4

069367

WSTU-IP-400R

069395

WSTU-IP-400RE

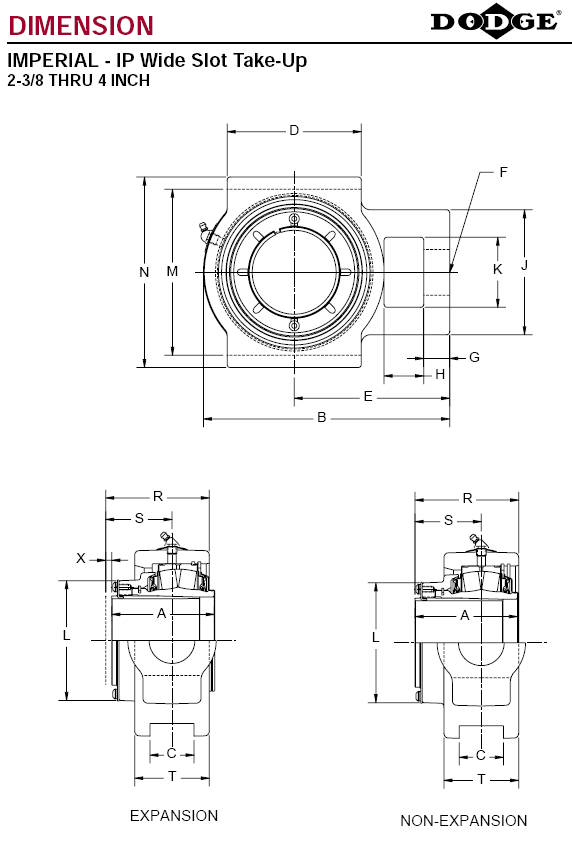

SHAFT SIZE

A

B

C

D

E

F

G

H

J

K

L

M

N

R

S

T

X TOTAL EXP

2 - 3/8 2 - 7/16 2 - 1/2

3 - 27/64

7 - 11/16

1 - 1/16

4 - 3/8

5

1 - 3/8

1 - 1/16

1 - 1/4

4 - 1/4

2 - 1/2

3 - 7/8

5 - 1/8

5 - 7/8

3 - 7/16

2 - 7/32

2 - 7/16

1/4

2 -11/16 2 - 3/4 2 - 15/16 3

3 - 1/2

8 - 7/8

1 - 13/16

4 - 1/2

5 - 3/4

1 - 5/8

1 - 1/8

1 - 1/2

4 - 7/8

2 - 3/4

4 - 9/32

5 - 15/16

6 - 11/16

3 - 43/64

2 - 9/32

2 - 11/16

1/4

3 - 3/16 3 - 1/4 3 - 7/16 3 - 1/2

4 - 5/32

10 - 1/16

1 - 13/16

5 - 1/2

6 - 3/8

1 - 7/8

1 - 1/16

1 - 5/8

5 - 1/8

2 - 7/8

5

6 - 13/16

7 - 13/16

4 - 7/32

2 - 11/16

3 - 1/16

1/4

3 - 11/16 3 - 15/16 4

4 - 45/64

12 - 9/16

2 - 1/16

7

8 - 3/8

2 - 1/8

2 - 1/16

2 - 1/8

6

3 - 3/8

5 - 9/16

8 - 5/8

9 - 7/16

4 - 51/64

3 - 3/64

3 - 7/16

5/16
