Bearing

Shaft Size  Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22208

1 - 1/8

069805

FC-IP-102R

069837

FC-IP-102RE

069869

FC-IP-102L

069901

FC-IP-102LE

1 - 3/16

069806

FC-IP-103R

069838

FC-IP-103RE

069870

FC-IP-103L

069902

FC-IP-103LE

1 - 1/4

069807

FC-IP-104R

069839

FC-IP-104RE

069871

FC-IP-104L

069903

FC-IP-104LE

1 - 3/8

069808

FC-IP-106R

069840

FC-IP-106RE

069872

FC-IP-106L

069904

FC-IP-106LE

1 - 7/16

069809

FC-IP-107R

069841

FC-IP-107RE

069873

FC-IP-107L

069905

FC-IP-107LE

1 - 1/2

069810

FC-IP-108R

069842

FC-IP-108RE

069874

FC-IP-108L

069906

FC-IP-108LE

22209

1 - 5/8

069811

FC-IP-110R

069843

FC-IP-110RE

069875

FC-IP-110L

069907

FC-IP-110LE

1 - 11/16

069812

FC-IP-111R

069844

FC-IP-111RE

069876

FC-IP-111L

069908

FC-IP-111LE

1 - 3/4

069813

FC-IP-112R

069845

FC-IP-112RE

069877

FC-IP-112L

069909

FC-IP-112LE

22210

1 - 7/8

069814

FC-IP-114R

069846

FC-IP-114RE

069878

FC-IP-114L

069910

FC-IP-114LE

1 - 15/16

069815

FC-IP-115R

069847

FC-IP-115RE

069879

FC-IP-115L

069911

FC-IP-115LE

2

069816

FC-IP-200R

069848

FC-IP-200RE

069880

FC-IP-200L

069912

FC-IP-200LE

22211

2 - 3/16 2 - 1/4

069817 069818

FC-IP-203R FC-IP-204R

069849 069850

FC-IP-203RE FC-IP-204RE

069881 069882

FC-IP-203L FC-IP-204L

069913 069914

FC-IP-203LE FC-IP-204LE

22213

2 - 3/8

069819

FC-IP-206R

069851

FC-IP-206RE

069883

FC-IP-206L

069915

FC-IP-206LE

2 - 7/16

069820

FC-IP-207R

069852

FC-IP-207RE

069884

FC-IP-207L

069916

FC-IP-207LE

2 - 1/2

069821

FC-IP-208R

069853

FC-IP-208RE

069885

FC-IP-208L

069917

FC-IP-208LE

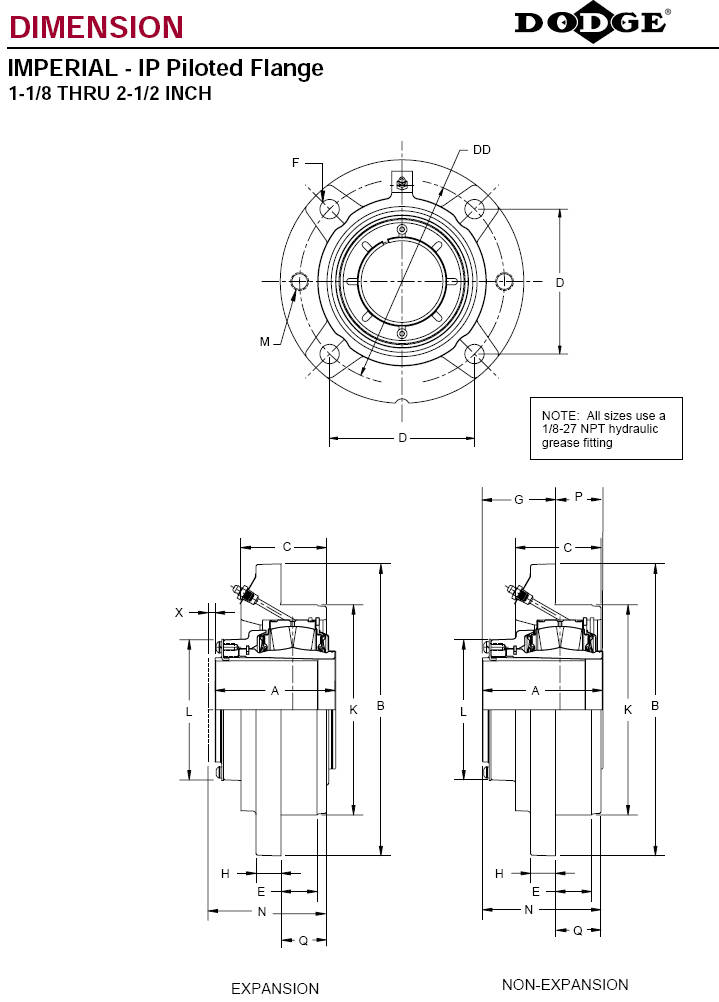

SHAFT SIZE

A

B

C

D

DD

E

F BOLT DIA.

G

H

K*

L

M

N

P

Q

X TOTAL EXP

1 - 1/8 1 - 3/16 1 - 1/4 1 - 3/8 1 - 7/16 1 - 1/2

2-5/8

5-1/4

1-27/32

3-3/32

4-3/8

3/4

3/8

1-25/64

1/2

3. 625

2-23/32

3/8-16

2-39/64

1-15/64

1-7/32

3/16

1 - 5/8 1 - 11/16 1 - 3/4

2-13/16

6-1/8

1-29/32

3-5/8

5-1/8

7/8

7/16

1-39/64

1/2

4.250

3

7/16-14

2-55/64

1-13/64

1-17/64

1/4

1 - 7/8 1 - 15/16 2

2-55/64

6 3/8

2

3-51/64

5-3/8

7/8

7/16

1-19/32

9/16

4.500

3-9/32

7/16-14

2-55/64

1-17/64

1-17/64

1/4

2 - 3/16 2 - 1/4

3-1/32

7-1/8

2-3/16

4-1/4

6

1

1/2

1-21/32

9/16

5.000

3-1/2

1/2-13

3-5/64

1-3/8

1-27/64

1/4

2 - 3/8 2 - 7/16 2 - 1/2

3-27/64

7 5/8

2-1/2

4-19/32

6-1/2

1

1/2

1-7/8

5/8

5.500

3-7/8

1/2-13

3-7/16

1-35/64

1-9/16

1/4
