EF4B-IP-107R、EF4B-IP-111R

Bearing Series	Shaft  Size*	TRIDENT SEAL											Labyrinth Seal
		Non Expansion					Expansion						Non Expansion			Expansion
		Part No.		Part Name			Part No.		Part Name				Part No.		Part Name	Part No.	Part Name
22208	1-3/8 1-7/16	071288 071289		EF4B-IP-106R EF4B-IP-107R			071313 071314		EF4B-IP-106RE EF4B-IP-107RE				071338 071339		EF4B-IP-106L EF4B-IP-107L	071364 071365	EF4B-IP-106LE EF4B-IP-107LE
22209	1-1/2	071290		EF4B-IP-108R			071315		EF4B-IP-108RE				071340		EF4B-IP-108L	071366	EF4B-IP-108LE
	1-5/8	071291		EF4B-IP-110R			071316		EF4B-IP-110RE				071341		EF4B-IP-110L	071367	EF4B-IP-110LE
	1-11/16	071292		EF4B-IP-111R			071317		EF4B-IP-111RE				071342		EF4B-IP-111L	071368	EF4B-IP-111LE
22210	1-3/4	071293		EF4B-IP-112R			071318		EF4B-IP-112RE				071343		EF4B-IP-112L	071369	EF4B-IP-112LE
	1-7/8	071294		EF4B-IP-114R			071319		EF4B-IP-114RE				071344		EF4B-IP-114L	071370	EF4B-IP-114LE
	1-15/16	071295		EF4B-IP-115R			071320		EF4B-IP-115RE				071345		EF4B-IP-115L	071371	EF4B-IP-115LE
	2	071296		EF4B-IP-200R			071321		EF4B-IP-200RE				071346		EF4B-IP-200L	071372	EF4B-IP-200LE
22211	2-3/16	071297		EF4B-IP-203R			071322		EF4B-IP-203RE				071347		EF4B-IP-203L	071373	EF4B-IP-203LE

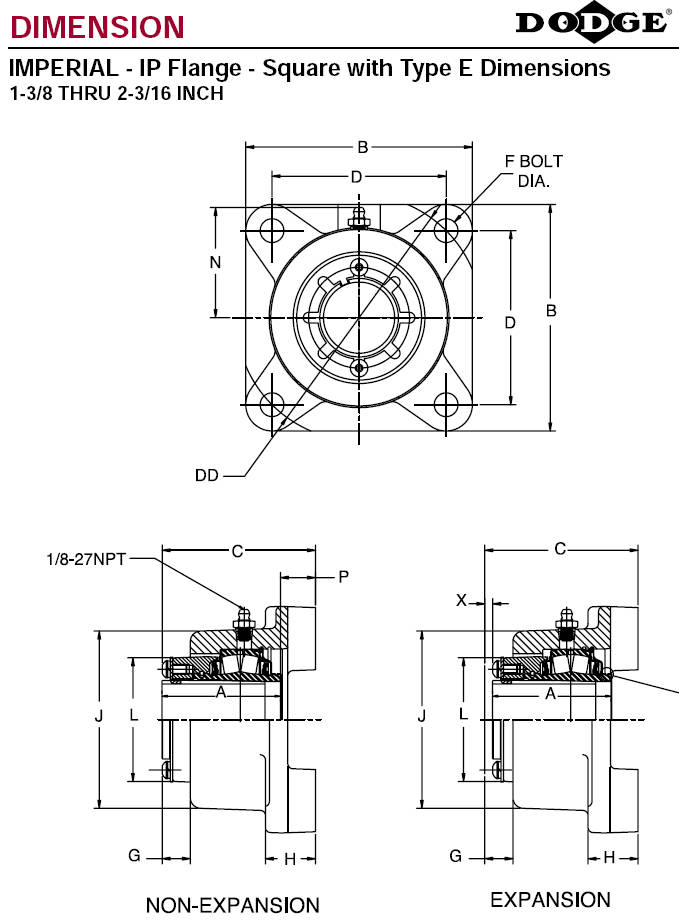

SHAFT SIZE	A	B#	C#		D	DD	BOLT DIA.	G	H#	J#	L	N		P	X TOTAL EXP.	Y	Z
1-3/8 1-7/16	2.63	4.63	3.15		3.50	4.950	1/2	0.66	1.06	3.88	2.72	2.34		0.53	0.16	0.020	1.80
1-1/2 1-5/8 1-11/16	2.81	5.38	3.64		4.13	5.834	1/2	0.67	1.19	4.18	3.00	2.50		0.83	0.19	0.020	2.08
1-3/4 1-7/8 1-15/16 2	2.86	5.63	3.64		4.38	6.188	1/2	0.65	1.18	4.36	3.28	2.60		0.79	0.22	0.020	2.30
2-3/16	3.03	6.25	3.96		4.88	6.894	5/8	0.68	1.38	4.88	3.50	2.88		0.94	0.25	0.020	2.60
