Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non- Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22213

2 - 3/8

069707

F4S-IP-206R

069735

F4S-IP-206RE

069763

F4S-IP-206L

069791

F4S-IP-206LE

2 - 7/16

069708

F4S-IP-207R

069736

F4S-IP-207RE

069764

F4S-IP-207L

069792

F4S-IP-207LE

2 - 1/2

069709

F4S-IP-208R

069737

F4S-IP-208RE

069765

F4S-IP-208L

069793

F4S-IP-208LE

22215

2 - 11/16

069710

F4S-IP-211R

069738

F4S-IP-211RE

069766

F4S-IP-211L

069794

F4S-IP-211LE

2 - 3/4

069711

F4S-IP-212R

069739

F4S-IP-212RE

069767

F4S-IP-212L

069795

F4S-IP-212LE

2 - 15/16

069712

F4S-IP-215R

069740

F4S-IP-215RE

069768

F4S-IP-215L

069796

F4S-IP-215LE

3

069713

F4S-IP-300R

069741

F4S-IP-300RE

069769

F4S-IP-300L

069797

F4S-IP-300LE

22218

3 - 3/16

069714

F4S-IP-303R

069742

F4S-IP-303RE

069770

F4S-IP-303L

069798

F4S-IP-303LE

3 - 1/4

069715

F4S-IP-304R

069743

F4S-IP-304RE

069771

F4S-IP-304L

069799

F4S-IP-304LE

3 - 7/16

069716

F4S-IP-307R

069744

F4S-IP-307RE

069772

F4S-IP-307L

069800

F4S-IP-307LE

3 - 1/2

069717

F4S-IP-308R

069745

F4S-IP-308RE

069773

F4S-IP-308L

069801

F4S-IP-308LE

22220

3 - 11/16

069718

F4S-IP-311R

069746

F4S-IP-311RE

069774

F4S-IP-311L

069802

F4S-IP-311LE

3 - 15/16

069719

F4S-IP-315R

069747

F4S-IP-315RE

069775

F4S-IP-315L

069803

F4S-IP-315LE

4

069720

F4S-IP-400R

069748

F4S-IP-400RE

069776

F4S-IP-400L

069804

F4S-IP-400LE

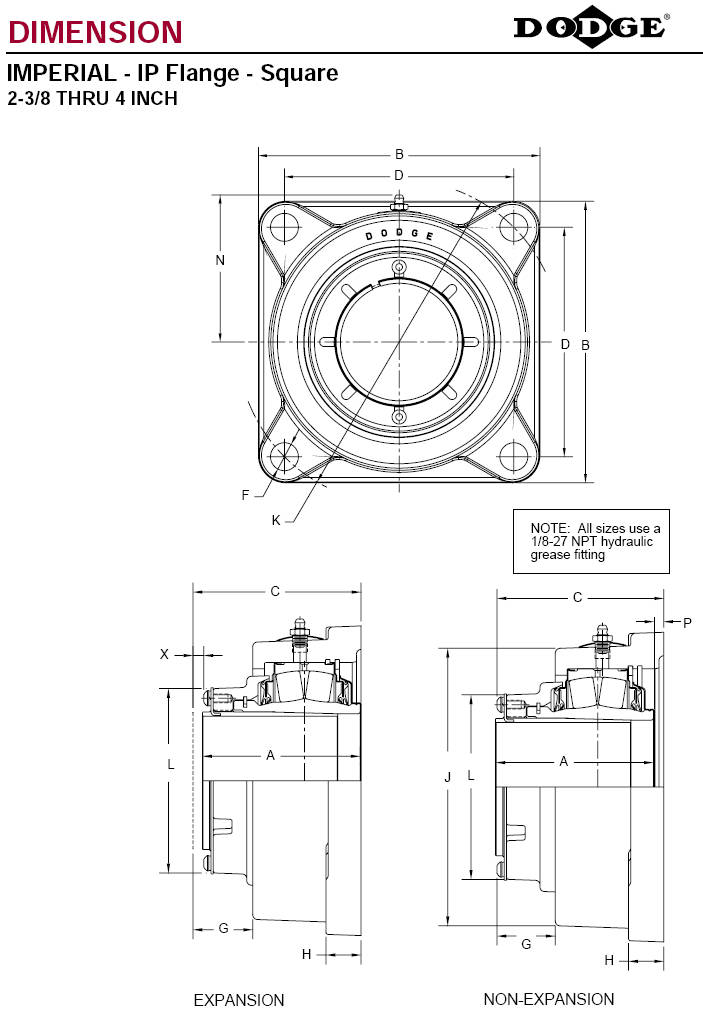

SHAFT SIZE

A

B

C

D

F BOLT DIA.

G

H

J

K

L

N

P

X TOTAL EXP.

2 - 3/8 2 - 7/16 2 - 1/2

3 - 27/64

6 - 1/8

3 - 47/64

4 - 25/32

5/8

1 - 23/64

41/64

5 - 5/8

6 - 3/4

3 - 7/8

3 - 13/32

5/16

1/4

2 - 11/16 2 - 3/4 2 - 15/16 3

3 - 1/2

7 - 3/16

3 - 13/16

5 - 9/16

3/4

1 - 27/64

3/4

6 - 1/2

7 - 7/8

4 - 9/32

3 - 27/32

5/16

1/4

3 - 3/16 3 - 1/4 3 - 7/16 3 - 1/2

4 - 11/64

8 - 1/4

4 - 31/64

6 - 23/32

3/4

1 - 19/32

15/16

7 - 31/64

9 - 1/2

5

4 - 21/64

5/16

1/4

3 - 11/16 3 - 15/16 4

4 - 45/64

9 - 1/4

5 - 5/64

7 - 39/64

7/8

1 - 25/32

1 - 1/16

8 - 7/32

10 - 3/4

5 - 9/16

4 - 45/64

3/8

5/16
