F4R-IP-206R、F4R-IP-211R

Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22211

2 - 3/16 2 - 1/4

069604 069605

F4R-IP-203R F4R-IP-204R

069642 069643

F4R-IP-203RE F4R-IP-204RE

069663 069664

F4R-IP-203L F4R-IP-204L

069684 069685

F4R-IP-203LE F4R-IP-204LE

22213

2 - 3/8

069606

F4R-IP-206R

069644

F4R-IP-206RE

069665

F4R-IP-206L

069686

F4R-IP-206LE

2 - 7/16

069607

F4R-IP-207R

069645

F4R-IP-207RE

069666

F4R-IP-207L

069687

F4R-IP-207LE

2 - 1/2

069608

F4R-IP-208R

069646

F4R-IP-208RE

069667

F4R-IP-208L

069688

F4R-IP-208LE

22215

2 - 11/16

069609

F4R-IP-211R

069647

F4R-IP-211RE

069668

F4R-IP-211L

069689

F4R-IP-211LE

2 - 3/4

069610

F4R-IP-212R

069648

F4R-IP-212RE

069669

F4R-IP-212L

069690

F4R-IP-212LE

2 - 15/16

069611

F4R-IP-215R

069649

F4R-IP-215RE

069670

F4R-IP-215L

069691

F4R-IP-215LE

3

069612

F4R-IP-300R

069650

F4R-IP-300RE

069671

F4R-IP-300L

069692

F4R-IP-300LE

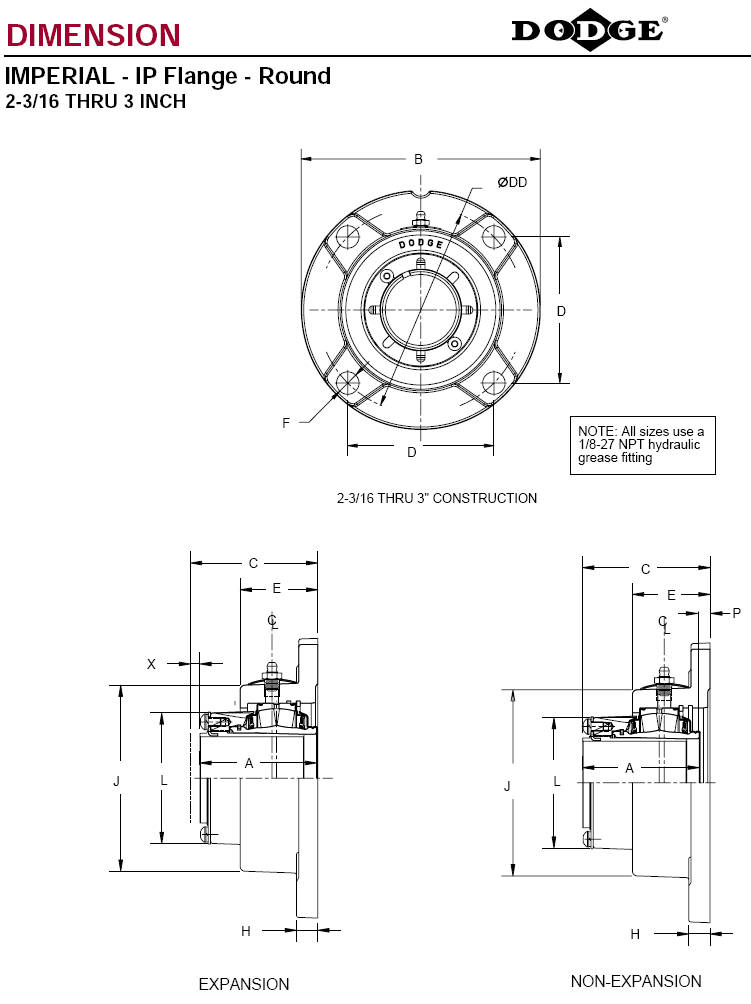

SHAFT SIZE

A

B

C

D

DD

E

F BOLT DIA.

H

J

L

P

X EXP

2 - 3/16 2 - 1/4

3 - 1/32

7 - 3/8

3 - 11/32

4 -1/2

6 - 3/8

2 - 3/64

5/8

9/16

4 - 7/8

3 - 1/2

5/16

1/4

2 - 3/8 2 - 7/16 2 - 1/2

3 - 27/64

7 - 3/4

3 - 47/64

4 - 49/64

6 - 3/4

2 - 3/8

5/8

41/64

5 - 3/8

3 - 7/8

5/16

1/4

2 - 11/16 2 - 3/4 2 - 15/16 3

3 - 1/2

9 - 1/4

3 - 13/16

5 - 9/16

7 - 7/8

2 - 25/64

3/4

3/4

6 - 1/4

4 - 9/32

5/16

1/4
