F3R-IP-103R、F3R-IP-108R

Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22208

1 - 1/8

069592

F3R-IP-102R

069630

F3R-IP-102RE

069651

F3R-IP-102L

069672

F3R-IP-102LE

1 - 3/16

069593

F3R-IP-103R

069631

F3R-IP-103RE

069652

F3R-IP-103L

069673

F3R-IP-103LE

1 -1/4

069594

F3R-IP-104R

069632

F3R-IP-104RE

069653

F3R-IP-104L

069674

F3R-IP-104LE

1 -3/8

069595

F3R-IP-106R

069633

F3R-IP-106RE

069654

F3R-IP-106L

069675

F3R-IP-106LE

1 -7/16

069596

F3R-IP-107R

069634

F3R-IP-107RE

069655

F3R-IP-107L

069676

F3R-IP-107LE

1 - 1/2

069597

F3R-IP-108R

069635

F3R-IP-108RE

069656

F3R-IP-108L

069677

F3R-IP-108LE

22209

1 - 5/8

069598

F4R-IP-110R

069636

F4R-IP-110RE

069657

F4R-IP-110L

069678

F4R-IP-110LE

1 -11/16

069599

F4R-IP-111R

069637

F4R-IP-111RE

069658

F4R-IP-111L

069679

F4R-IP-111LE

1 - 3/4

069600

F4R-IP-112R

069638

F4R-IP-112RE

069659

F4R-IP-112L

069680

F4R-IP-112LE

22210

1 -7/8

069601

F4R-IP-114R

069639

F4R-IP-114RE

069660

F4R-IP-114L

069681

F4R-IP-114LE

1 - 15/16

069602

F4R-IP-115R

069640

F4R-IP-115RE

069661

F4R-IP-115L

069682

F4R-IP-115LE

2

069603

F4R-IP-200R

069641

F4R-IP-200RE

069662

F4R-IP-200L

069683

F4R-IP-200LE

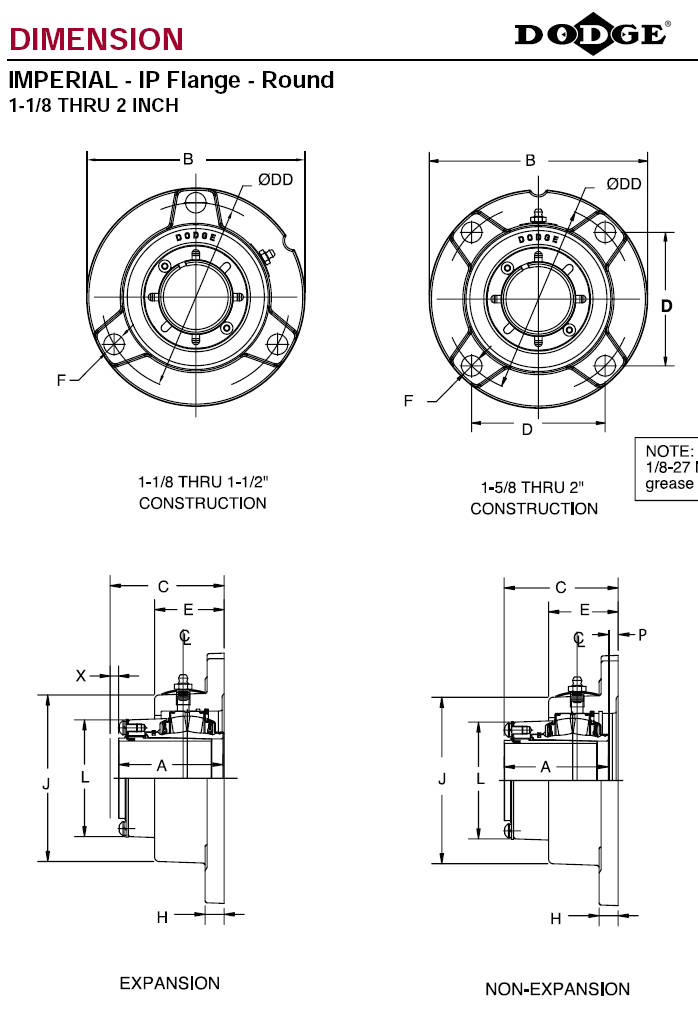

SHAFT SIZE

A

B

C

D

DD

E

F BOLT DIA.

H

J

L

P

X TOTAL EXP

1 - 1/8 1 - 3/16 1 -1/4 1 -3/8 1 -7/16 1 - 1/2

2 - 5/8

5 - 7/8

2 - 55/64

3 - 17/32

5

1 - 51/64

* 1/2

1/2

3 - 3/4

2 - 23/32

15/64

3/16

1 - 5/8 1 -11/16 1 - 3/4

2 - 13/16

6 - 3/8

3 - 7/64

3 - 57/64

5 - 1/2

1 - 57/64

*1/2

1/2

4 - 1/4

3

19/64

1/4

1 -7/8 1 - 15/16 2

2 - 55/64

6 - 11/16

3 - 5/32

4 - 1/16

5 -3/4

1 - 59/64

** 1/2

9/16

4 - 1/2

3 - 9/32

19/64

1/4
