P4B-IP-311R、P4B-IP-408R

Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

 Part Name

Part No.

 Part Name

Part No.

 Part Name

Part No.

 Part Name

22220

3 - 11/16

069531

P4B-IP-311R

069549

P4B-IP-311RE

069567

P4B-IP-311L

069585

P4B-IP-311LE

3 - 15/16

069532

P4B-IP-315R

069550

P4B-IP-315RE

069568

P4B-IP-315L

069586

P4B-IP-315LE

4

069533

P4B-IP-400R

069551

P4B-IP-400RE

069569

P4B-IP-400L

069587

P4B-IP-400LE

22222

4 - 7/16

4 - 1/2

069534

069535

P4B-IP-407R

P4B-IP-408R

069552

069553

P4B-IP-407RE

P4B-IP-408RE

069570

069571

P4B-IP-407L

P4B-IP-408L

069588

069589

P4B-IP-407LE

P4B-IP-408LE

22226

4 - 15/16

5

069536

069537

P4B-IP-415R

P4B-IP-500R

069554

069555

P4B-IP-415RE

P4B-IP-500RE

069572

069573

P4B-IP-415L

P4B-IP-500L

069590

069591

P4B-IP-415LE

P4B-IP-500LE

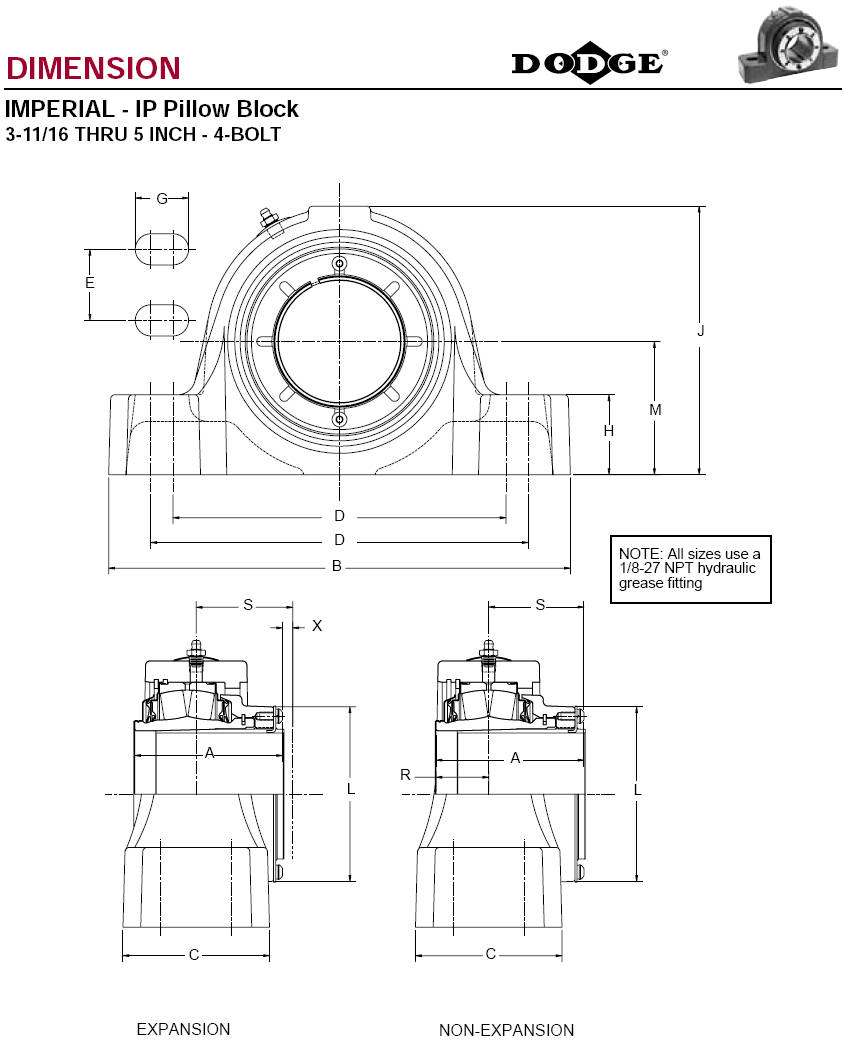

SHAFT SIZE

A

B

C

D

E

F

BOLT

DIA.

G

H

J

L

M

R

S

X

TOTAL

EXP.

MIN

 MAX

3 - 11/16

3 - 15/16

4

4 - 45/64

15 - 1/4

4 - 1/2

12 - 1/8

12 - 7/8

2 - 1/4

3/4

1 - 1/4

2 - 7/16

8 - 7/16

5 - 9/16

4 - 1/4

1 - 41/64

3 - 1/16

5/16

4 - 7/16

4 - 1/2

5 - 15/64

16 - 1/2

4 - 3/4

13

14

2 - 1/2

3/4

1 - 3/8

2 - 3/4

9 - 5/8

6 - 7/16

4 - 3/4

1 - 3/4

3 - 31/64

3/8

4 - 15/16

5

5 - 63/64

18 - 5/8

5 - 3/8

15

16

2 - 3/4

7/8

1 - 1/2

3

11 - 1/8

7 - 5/8

5 - 1/2

1 - 29/32

4 - 5/64

3/8
