Bearing	Shaft Size Δ			NON-EXPANSION*								EXPANSION	Approx. Wt. Kgs.
				PART NO.		PART NAME					PART NO.	PART NAME
22209	40 mm 45 mm			048202 048203		F4B-UN2-040M  F4B-UN2-045M					048216 048217	F4B-UN2-040ME  F4B-UN2-045ME	3.1 3.1
22210	50 mm			048204		F4B-UN2-050M					048218	F4B-UN2-050ME	3
22211	55 mm			048205		F4B-UN2-055M					048219	F4B-UN2-055ME	3.8
22213	60 mm 65 mm			048206 048207		F4B-UN2-060M  F4B-UN2-065M					048220 048221	F4B-UN2-060ME  F4B-UN2-065ME	4.8 4.6
22215	70 mm			048208		F4B-UN2-070M					048222	F4B-UN2-070ME	8.2
22218	80 mm			048210		F4B-UN2-080M					048224	F4B-UN2-080ME	11.2

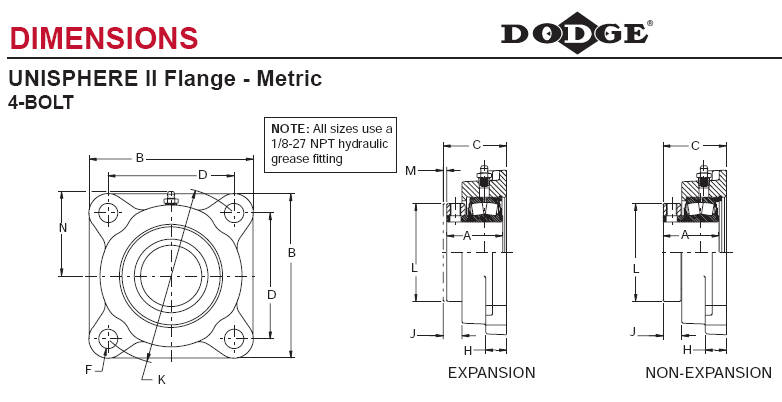

Shaft Size	A	B	C		D	F Bolt Dia.	H	J	K	L	M Total Exp.	N
40 mm 45 mm	48	130	55		99	12	19	18	140	76	3.9	70
50 mm	48	135	55		103	12	18	18	146	82	3.9	73
55 mm	51	149	58		114	16	19	17	162	89	3.9	78
60 mm 65 mm	56	156	62		121	16	25	16	171	103	3.9	86
70 mm	62	183	66		141	20	24	20	200	120	4.7	97
80 mm	73	212	78		171	20	30	22	241	140	4.7	109
