INS-S2-111R、INS-S2-203R

Bearing

SHAFT SIZE

TRIDENT SEAL

LABYRINTH SEAL

PART

NUMBER

PART

NAME

PART

NUMBER

PART NAME

22208

1-3/8

070000

INS-S2-106R

070016

INS-S2-106L

1-7/16

070001

INS-S2-107R

070017

INS-S2-107L

1-1/2

070002

INS-S2-108R

070018

INS-S2-108L

22209

1-11/16

1-3/4

070003

070004

INS-S2-111R

INS-S2-112R

070019

070020

INS-S2-111L

INS-S2-112L

22210

1-15/16

2

070005

070006

INS-S2-115R

INS-S2-200R

070021

070022

INS-S2-115L

INS-S2-200L

22211

2-3/16

070007

INS-S2-203R

070023

INS-S2-203L

22213

2-7/16

070008

INS-S2-207R

070024

INS-S2-207L

22215

2-11/16

070009

INS-S2-211R

070025

INS-S2-211L

2-15/16

070010

INS-S2-215R

070026

INS-S2-215L

3

070011

INS-S2-300R

070027

INS-S2-300L

22218

3-7/16

070012

INS-S2-307R

070028

INS-S2-307L

22220

3-15/16

070013

INS-S2-315R

070029

INS-S2-315L

22222

4-7/16

070014

INS-S2-407R

070030

INS-S2-407L

22226

4-15/16

070015

INS-S2-415R

070031

INS-S2-415L

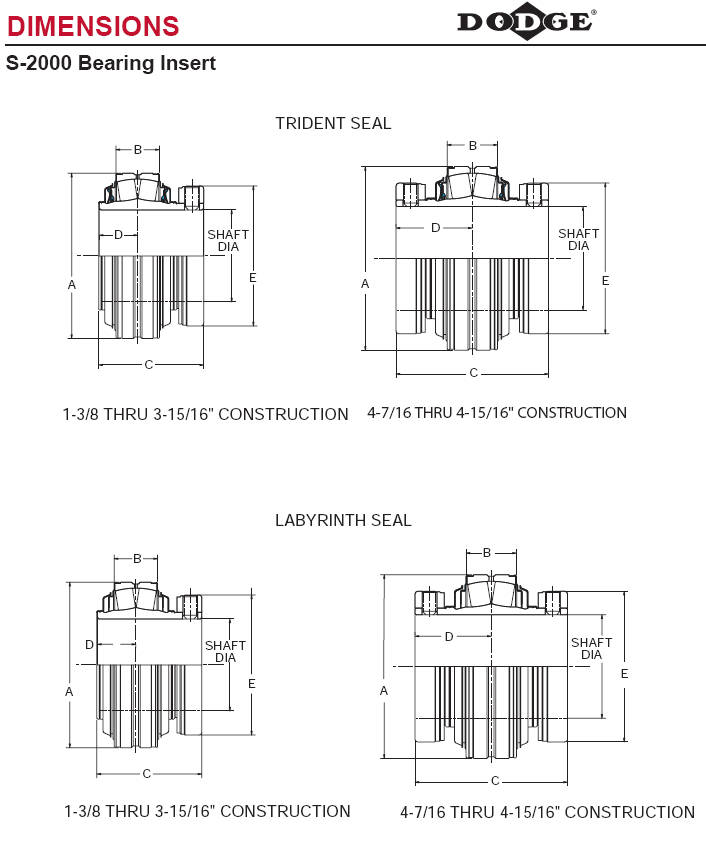

SHAFT SIZE

A

B

C

D

E

1-3/8

1-7/16

1-1/2

3.150

61/64

2-17/32

0.970

2-21/32

1-11/16

1-3/4

3.346

61/64

2-21/32

0.954

3-3/32

1-15/16

2

3.543

61/64

2-27/32

0.977

3-11/32

2-3/16

3.937

1-3/64

2-15/16

1.050

3-21/32

2-7/16

4.724

1-9/32

3-13/64

1.208

3-31/32

2-11/16

2-15/16

3

5.118

1-9/32

3-19/32

1.219

4-5/8

3-7/16

6.299

1-5/8

4

1.483

5-1/2

3-15/16

7.087

1-7/8

4-31/64

1.646

6

4-7/16

7.874

2-5/32

6-17/32

3.266

6-29/64

4-15/16

9.055

2-19/32

6-29/32

3.453

7-29/64
