F4S-S2-112R、F4S-S2-203R

Bearing

Shaft Size Inch

TRIDENT Seal

Labyrinth Seal

Non-Expansion

Expansion

Non-Expansion

Expansion

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

Part No.

Part Name

22208

1-3/8

070541

F4S-S2-106R

070564

F4S-S2-106RE

070600

F4S-S2-106L

070853

F4S-S2-106LE

1-7/16

070542

F4S-S2-107R

070565

F4S-S2-107RE

070601

F4S-S2-107L

070854

F4S-S2-107LE

1-1/2

070543

F4S-S2-108R

070566

F4S-S2-108RE

070602

F4S-S2-108L

070855

F4S-S2-108LE

22209

1-11/16 1-3/4

070545 070546

F4S-S2-111R  F4S-S2-112R

070568 070569

F4S-S2-111RE  F4S-S2-112RE

070604 070605

F4S-S2-111L  F4S-S2-112L

070857 070858

F4S-S2-111LE  F4S-S2-112LE

22210

1-15/16 2

070547 070548

F4S-S2-115R  F4S-S2-200R

070570 070571

F4S-S2-115RE  F4S-S2-200RE

070606 070607

F4S-S2-115L  F4S-S2-200L

070859 070860

F4S-S2-115LE  F4S-S2-200LE

22211

2-3/16

070549

F4S-S2-203R

070572

F4S-S2-203RE

070608

F4S-S2-203L

070861

F4S-S2-203LE

22213

2-7/16

070551

F4S-S2-207R

070574

F4S-S2-207RE

070610

F4S-S2-207L

070863

F4S-S2-207LE

22215

2-11/16

070553

F4S-S2-211R

070576

F4S-S2-211RE

070612

F4S-S2-211L

070865

F4S-S2-211LE

2-15/16

070554

F4S-S2-215R

070577

F4S-S2-215RE

070613

F4S-S2-215L

070866

F4S-S2-215LE

3

070555

F4S-S2-300R

070578

F4S-S2-300RE

070614

F4S-S2-300L

070867

F4S-S2-300LE

22218

3-7/16

070557

F4S-S2-307R

070580

F4S-S2-307RE

070616

F4S-S2-307L

070869

F4S-S2-307LE

22220

3-15/16

070559

F4S-S2-315R

070582

F4S-S2-315RE

070618

F4S-S2-315L

070871

F4S-S2-315LE

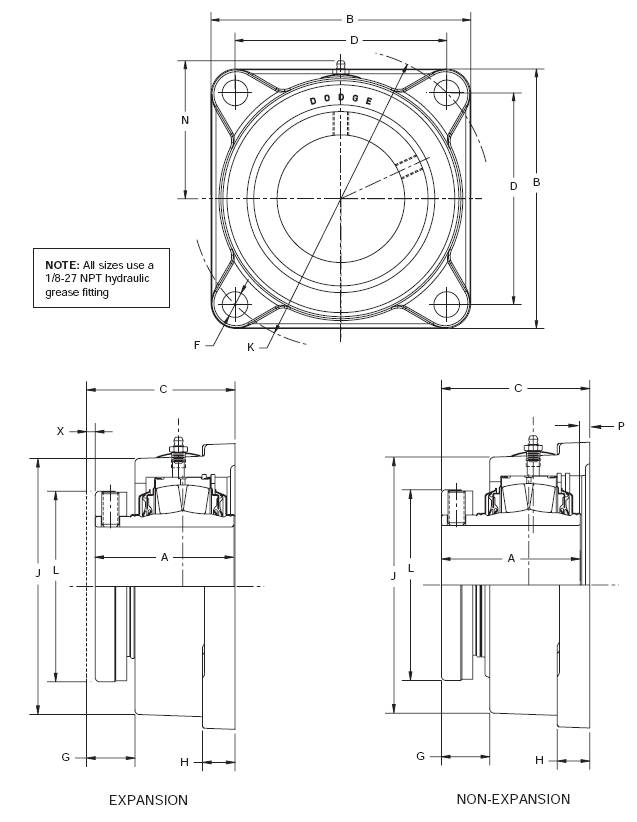

SHAFT SIZE

A

B

C

D

F BOLT DIA

G

H

J

K

L

N

P

X TOTAL EXP.

1-3/8 1-7/16 1-1/2

2-17/32

4-3/4

2-49/64

3-17/32

1/2

63/64

1/2

3-13/16

5

2-3/4

2-31/64

15/64

3/16

1-11/16 1-3/4

2-43/64

5-1/8

2-31/32

3-57/64

1/2

1-5/64

1/2

4-13/32

5-1/2

3-3/16

2-25/32

19/64

1/4

1-15/16 2

2-27/32

5-19/64

3-5/32

4-1/16

1/2

1-15/64

9/16

4-31/32

5-3/4

3-7/16

2-29/32

5/16

1/4

2-3/16

2-15/16

5-7/8

3-1/4

4-33/64

5/8

1-13/64

9/16

5-1/64

6-3/8

3-3/4

3-3/32

5/16

1/4

2-7/16

3-13/64

6-1/8

3-33/64

4-25/32

5/8

1-9/64

41/64

5-5/8

6-3/4

4-1/16

3-13/32

5/16

1/4

2-11/16 2-15/16 3

3-19/32

7-3/16

3-29/32

5-9/16

3/4

1-33/64

3/4

6-1/2

7-7/8

4-45/64

3-27/32

5/16

1/4

3-7/16

4

8-1/4

4-5/16

6-23/32

3/4

1-7/16

15/16

7-31/64

9-1/2

5-1/2

4-21/64

5/16

1/4

3-15/16

4-15/32

9-1/4

4-27/32

7-39/64

7/8

1-35/64

1-1/16

8-7/32

10-3/4

6

4-45/64

3/8

5/16
