EP2B-S2-111R、EP2B-S2-107RE

Bearing Series	Shaft Size*	TRIDENT Seal												Labyrinth Seal
		Non Expansion					Expansion							Non Expansion			Expansion
		Part No.		Part Name			Part No.		Part Name					Part No.	Part Name		Part No.	Part Name
22208	1-3/8 1-7/16	071389 071390		EP2B-S2-106R EP2B-S2-107R			071400 071401		EP2B-S2-106RE  EP2B-S2-107RE					071411 071412	EP2B-S2-106L  EP2B-S2-107L		071422 071423	EP2B-S2-106LE EP2B-S2-107LE
22209	1-11/16	071391		EP2B-S2-111R			071402		EP2B-S2-111RE					071413	EP2B-S2-111L		071424	EP2B-S2-111LE
22210	1-15/16 2	071392 071393		EP2B-S2-115R  EP2B-S2-200R			071403 071404		EP2B-S2-115RE  EP2B-S2-200RE					071414 071415	EP2B-S2-115L  EP2B-S2-200L		071425 071426	EP2B-S2-115LE EP2B-S2-200LE
22211	2-3/16	071394		EP2B-S2-203R			071405		EP2B-S2-203RE					071416	EP2B-S2-203L		071427	EP2B-S2-203LE
22213	2-7/16	071395		EP2B-S2-207R			071406		EP2B-S2-207RE					071417	EP2B-S2-207L		071428	EP2B-S2-207LE
22215	2-11/16	071396		EP2B-S2-211R			071407		EP2B-S2-211RE					071418	EP2B-S2-211L		071429	EP2B-S2-211LE
	2-15/16	071397		EP2B-S2-215R			071408		EP2B-S2-215RE					071419	EP2B-S2-215L		071430	EP2B-S2-215LE
	3	071398		EP2B-S2-300R			071409		EP2B-S2-300RE					071420	EP2B-S2-300L		071431	EP2B-S2-300LE
22218	3-7/16	071399		EP2B-S2-307R			071410		EP2B-S2-307RE					071421	EP2B-S2-307L		071432	EP2B-S2-307LE

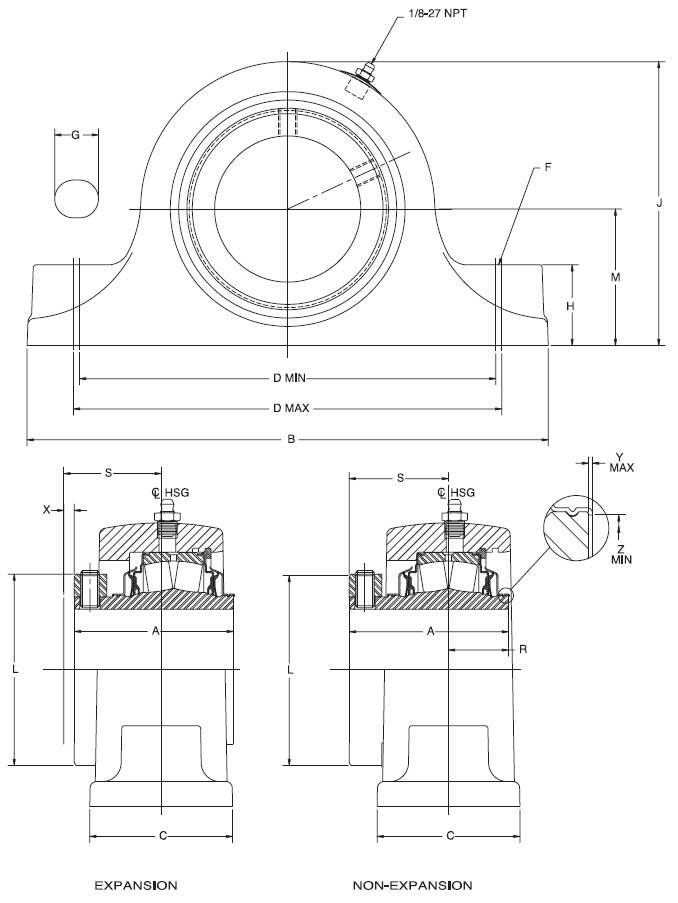

SHAFT SIZE	A	B#	C#	D		F BOLT DIA.	G#	H#	J#	L	M	R	S	X TOTAL EXP.	Y	Z	SET  SCREW  SIZE	S/S  TORQUE  IN/LBS
				MIN	MAX
1-3/8 1-7/16	2.53	7.37	2.12	5.63	5.88	1/2	0.75	1.13	3.85	2.55	1.875	1.03	1.50	0.16	0.020	1.80	5/16-18	165
1-11/16	2.67	7.88	2.38	6.13	6.38	1/2	0.75	1.25	4.25	3.01	2.125	0.98	1.69	0.19	0.020	2.08	5/16-18	165
1-15/16 2	2.84	8.87	2.49	6.88	7.12	5/8	0.88	1.31	4.47	3.44	2.250	1.08	1.76	0.22	0.020	2.30	3/8-16	290
2-3/16	2.94	9.62	2.56	7.63	7.88	5/8	0.88	1.50	5.00	3.50	2.500	1.06	1.88	0.25	0.025	2.60	3/8-16	290
2-7/16	3.20	10.50	2.87	8.38	8.62	5/8	0.88	1.63	5.71	4.06	2.750	1.20	2.00	0.25	0.025	2.95	3/8-16	290
2-11/16 2-15/16 3	3.59	12.00	2.99	9.31	9.69	3/4	1.07	1.88	6.32	4.61	3.125	1.34	2.25	0.25	0.025	3.47	1/2-13	620
3-7/16	4.01	14.00	3.49	10.81	11.19	7/8	1.19	2.25	7.69	5.50	3.750	1.51	2.50	0.25	0.025	4.05	1/2-13	620
