F4B-SD-115E、F4B-SD-200E

SHAFT SIZE

INCHES #

PART

 NUMBER

PART

NAME

WEIGHT

LBS (APPROX)

1-3/8

104195

F4B-SD-106E

21

1-7/16

104030

F4B-SD-107E

21

1-1/2

104196

F4B-SD-108E

21

1-11/16

104031

F4B-SD-115E

30

1-3/4

104197

F4B-SD-112E

30

1-15/16

104032

F4B-SD-115E

37

2

104199

F4B-SD-200E

37

2-3/16

104033

F4B-SD-203E

46

2-3/8

104204

F4B-SD-206E

62

2-7/16

104034

F4B-SD-207E

62

2-1/2

104205

F4B-SD-208E

62

2-11/16

104207

F4B-SD-211E

85

2-3/4

104208

F4B-SD-212E

83

2-15/16

104035

F4B-SD-215E

81

3

104211

F4B-SD-300E

81

3-3/16

104212

F4B-SD-303E

141

3-7/16

104036

F4B-SD-307E

139

3-1/2

104216

F4B-SD-308E

138

3-15/16

104037

F4B-SD-315E

230

4

104003

F4B-SD-400E

229

4-7/16

104038

F4B-SD-407E

325

4-15/16

104039

F4B-SD-415E

430

5

104006

F4B-SD-500E

428

5-15/16

104017

F4B-SD-515E

560

6

104019

F4B-SD-600E

560

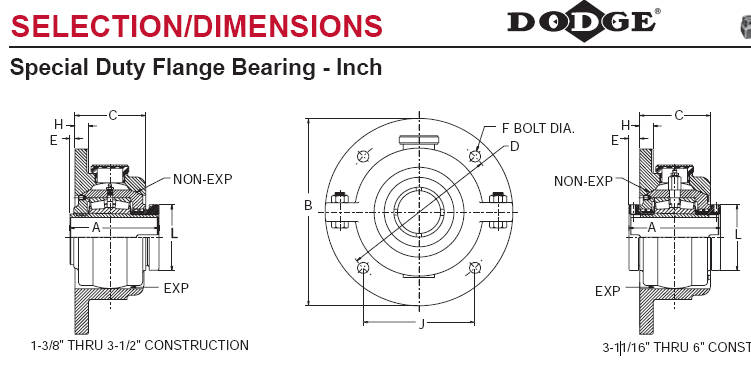

SHAFT SIZE

INCHES

A

B

C

D

E

F

BOLT

DIA.

H

J

L

EXP*

1-3/8

1-7/16

1-1/2

4

8-1/4

3

7

5/16

1/2

5/8

4.950

2-7/16

3/16

1-11/16

1-3/4

4-1/8

9

3-3/8

7-5/8

3/16

1/2

11/16

5.392

2-13/16

1/4

1-15/16

2

4-1/4

10

3-1/2

8-3/8

3/16

5/8

3/4

5.922

3-1/16

1/4

2-3/16

4-9/16

10-3/4

4

9-1/8

1/16

5/8

13/16

6.452

3-7/16

1/4

2-3/8

2-7/16

2-1/2

5-1/16

12

4-1/4

10-1/4

3/16

3/4

7/8

7.248

3-13/16

1/4

2-11/16

2-3/4

2-15/16

3

5-3/4

13

4-5/8

11-1/4

5/16

3/4

1

7.955

4-7/16

5/8

3-3/16

3-7/16

3-1/2

6-3/8

14-1/2

5-3/8

12-1/2

1/4

7/8

1-1/8

8.839

5-1/16

1/4

3-15/16

4

8-1/2

18

6-3/4

15-3/4

7/8

1

1-1/4

11.137

6-1/4

1/4

4-7/16

9-1/2

19-1/2

7-1/4

17

1-1/8

1-1/8

1-3/8

12.021

7-1/4

5/8

4-15/16

5

10-1/2

21-1/2

8-1/4

19

1

1-1/8

1-3/4

13.435

8

5/8

5-15/16

6

12

25-1/2

9

22-1/2

1-1/2

1-1/4

1-3/4

15.910

9-1/2

5/8
