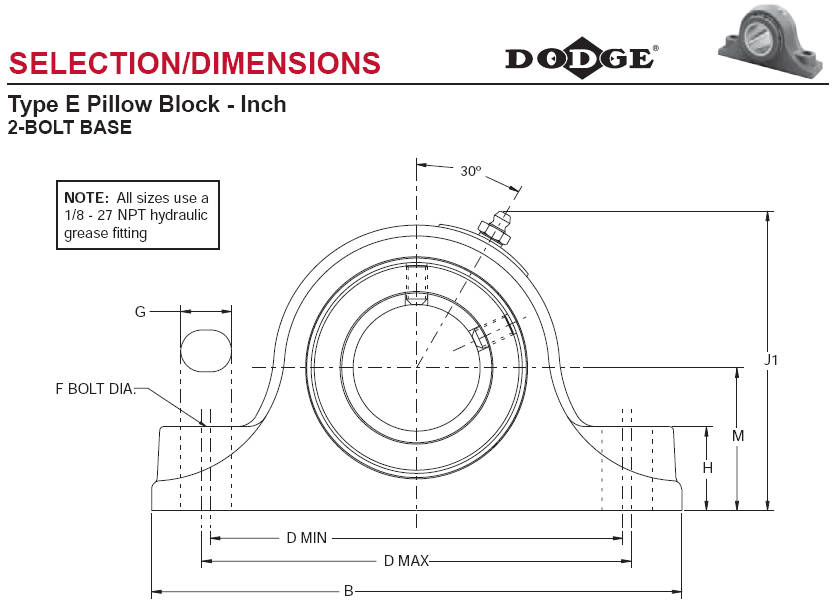

SP2B-E-114R、SP2B-E-200R

型号

SHAFT SIZE

(Inches)

A

B

C

D

F BOLT

 DIA

G

H

J

J1

L

M

MIN

   MAX

SP2B-E-103R

1-3/16

2-3/4

6

1-7/8

4-3/4

4-13/16

1/2

19/32

7/8

3

3-9/32

2-1/4

1-1/2

SP2B-E-104R

1-1/4

SP2B-E-106R

1-3/8

3

7-3/8

2-1/8

5-5/8

5-7/8

1/2

3/4

1-1/8

3-3/4

4

2-3/4

1-7/8

SP2B-E-107R

1-7/16

SP2B-E-108R

1-1/2

3-3/8

7-7/8

2-3/8

6-1/8

6-3/8

1/2

3/4

1-1/4

4-1/4

4-15/32

3-3/16

2-1/8

SP2B-E-110R

1-5/8

SP2B-E-111R

1-11/16

SP2B-E-112R

1-3/4

3-1/2

8-7/8

2-1/2

6-7/8

7-1/8

5/8

7/8

1-5/16

4-1/2

4-11/16

3-7/16

2-1/4

SP2B-E-114R

1-7/8

SP2B-E-115R

1-15/16

SP2B-E-200R

2

SP2B-E-203R

2-3/16

3-3/4

9-5/8

2-5/8

7-5/8

7-7/8

5/8

7/8

1-1/2

5

5-11/64

3-3/4

2-1/2

SP2B-E-204R

2-1/4

4

10-1/2

2-7/8

8-3/8

8-5/8

5/8

7/8

1-5/8

5-1/2

5-5/8

4-1/16

2-3/4

SP2B-E-207R

2-7/16

SP2B-E-208R

2-1/2

SP2B-E-211R

2-11/16

4-1/2

12

3

9-5/16

9-11/16

3/4

1

1-7/8

6-1/4

6-11/32

4-23/32

3-1/8

SP2B-E-212R

2-3/4

SP2B-E-215R

2-15/16

SP2B-E-300R

3

SP2B-E-303R

3-3/16

5

14

3-1/2

10-13/16

11-3/16

7/8

1-3/16

2-1/4

7-1/2

7-1/2

5-1/2

3-3/4

SP2B-E-304R

3-1/4

SP2B-E-307R

3-7/16

SP2B-E-308R

3-1/2
