INS-DLM-203、INS-DLM-211

Series

Shaft Size

Standard Insert

Part No.

Description

206

1

128668

INS-DLM-100

207

1-3/16

1-1/4

128669

128652

INS-DLM-103

INS-DL-104

208

1-7/16

128670

INS-DLM-107

1-1/2 *

128665

INS-DL-108

35mm

126644

INS-DLM-35M

209

1-1/2

1-5/8

128671

128656

INS-DLM-108

INS-DL-110L

210

1-11/16

1-3/4

128672

128673

INS-DLM-111

INS-DLM-112

211

1-15/16

2

128674

128661

INS-DLM-115

INS-DLM-200

212

2-3/16

2-1/4

128675

128664

INS-DLM-203

INS-DLM-204

214

2-7/16

128676

INS-DLM-207

2-1/2

128677

INS-DLM-208

65mm

126645

INS-DLM-65M

215

2.6875

065551

INS-DLM-211

216

2-15/16

@

INS-DLM-215

218

3-7/16

064535

INS-DLM-307

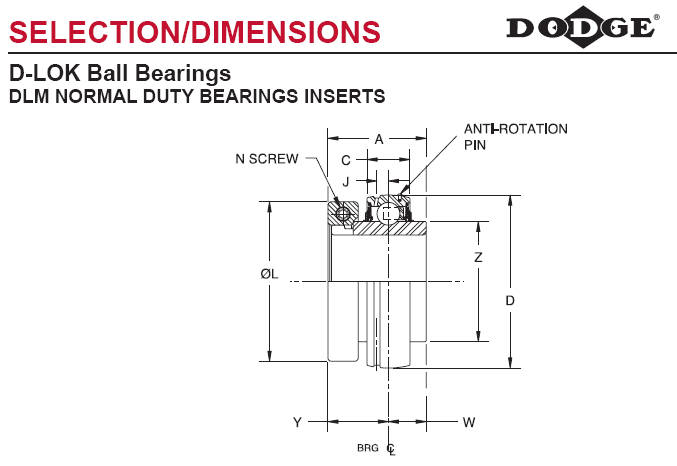

Series

Shaft Size

Weight

lbs. kg

A

C

D

J

L

N

Screw

(UNF)

W

Y

Z

206

1

1.8

1-9/16

0.7087

2.4409

0.190

2-7/32

No. 10

5/8

15/16

1-37/64

207

1-3/16

1-1/4

2.2

1.7

1-3/4

0.7480

2.8346

0.202

2-11/16

1/4

11/16

1-1/16

1-27/32

208

1-7/16

2.5

2

0.8661

3.1496

0.224

2-47/64

1/4

3/4

1-1/4

2-3/64

1-1/2

2.2

35mm

1.0

50.8

22.0

80.0

5.7

69.5

M6

19.1

31.8

52.0

209

1-1/2

1-5/8

3.0

2.5

2

0.8661

3.3465

0.248

2-63/64

1/4

3/4

1-1/4

2-7/32

210

1-11/16

1-3/4

3.0

3.0

2-3/32

0.8661

3.5433

0.248

3-15/64

1/4

3/4

1-11/32

2-7/16

211

1-15/16

2

3.4

3.3

2-1/4

0.9449

3.9370

0.267

3-11/16

5/16

7/8

1-3/8

2-23/32

212

2-3/16

2-1/4

4.9

4.8

2-5/8

1.0240

4.3307

0.250

4-7/64

5/16

1

1-5/8

2-31/32

214

2-7/16

5.5

2-13/16

1.1020

4.9213

0.265

4-3/8

5/16

1-1/16

1-3/4

3-5/16

2-1/2

5.4

65mm

2.5

71.4

28.0

125.0

6.7

111.1

M8

27.0

44.5

84.1

215

2-11/16

5.9

2-21/64

1.4200

5.1181

0.265

4-11/16

5/16

53/64

1-1/2

3-5/8

216

2-15/16

6.9

2-31/64

1.1420

5.5118

0.285

5

3/8

27/32

1-41/64

3-53/64

218

3-7/16

8.8

2-21/32

1.3400

6.2992

0.300

5-1/2

3/8

59/64

1-47/64

4-23/64
