F4B-DL-115、F4B-DL-203

Series

Shaft Size

Standard

No Lube/Sealed for Life (-NL)

Part No.

Description

Part No.

Description

209

1-5/8

128786

F4B-DL-110L

@

F4B-DL-110L-NL

1-11/16

1-3/4

128787

128788

F4B-DL-111

F4B-DL-112

056970

@

F4B-DL-111-NL

F4B-DL-112-NL

45mm

126624

F4B-DL-45M

@

F4B-DL-45M-NL

210

1-15/16

128789

F4B-DL-115

056968

F4B-DL-115-NL

2

128790

F4B-DL-200

@

F4B-DL-200-NL

50mm

126625

F4B-DL-50M

@

F4B-DL-50M-NL

211

2

128850

F4B-DLM-200

@

F4B-DLM-200-NL

2-3/16

128792

F4B-DL-203

@

F4B-DL-203-NL

55mm

126626

F4B-DL-55M

@

F4B-DL-55M-NL

212

2-1/4

128852

F4B-DLM-204

@

F4B-DLM-204-NL

2-7/16

128794

F4B-DL-207

@

F4B-DL-207-NL

60mm

126627

F4B-DL-60M

@

F4B-DL-60M-NL

214

2-1/2

128854

F4B-DLM-208

@

F4B-DLM-208-NL

2-11/16

128795

F4B-DL-211

@

F4B-DL-211-NL

70mm

126628

F4B-DL-70M

@

F4B-DL-70M-NL

215

2-15/16

062152

F4B-DL-215

@

F4B-DL-215-NL

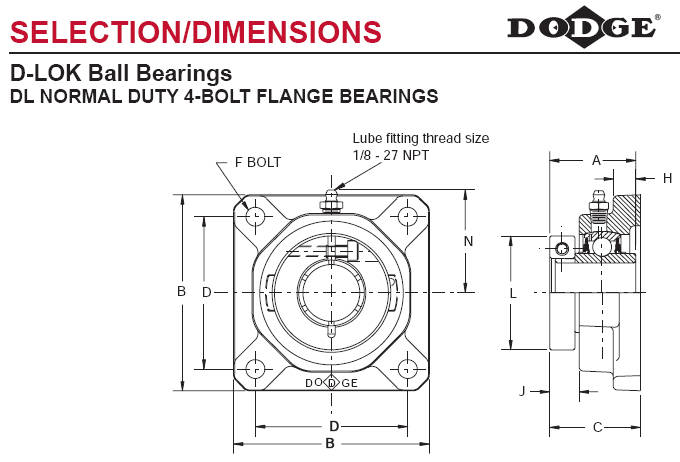

Series

Shaft Size

Weight

Lbs kg

A

B

C

D

F

Bolt Dia.

H

J

L

N

209

1-5/8

6.0

2

5-3/8

2-7/64

4-1/8

9/16

9/16

21/32

2-63/64

2-45/64

1-11/16

1-3/4

6.0

5.9

45mm

2.7

50.8

136.5

53.6

104.8

M14

14.3

16.7

75.8

68.7

210

1-15/16

7.0

2-3/32

5-5/8

2-7/32

4-3/8

9/16

35/64

11/16

3-15/64

2-51/64

2

6.9

50mm

3.1

53.2

142.9

56.4

111.1

M14

13.9

17.5

82.1

71.0

211

2

11.0

2-1/4

6-3/8

2-3/8

5-1/8

5/8

19/32

11/16

3-11/16

3-9/64

2-3/16

11.0

55mm

5.0

57.2

161.9

60.3

130.2

M16

15.1

17.5

93.7

79.8

212

2-1/4

13.3

2-5/8

6-7/8

2-3/4

5-5/8

5/8

19/32

7/8

4-7/64

3-15/64

2-7/16

13.0

60mm

5.9

66.7

174.6

69.9

142.9

M16

15.1

22.2

104.4

82.2

214

2-1/2

14.6

2-13/16

7-3/8

3-1/16

5-7/8

5/8

11/16

57/64

4-3/8

3-9/16

2-11/16

14.6

70mm

6.6

71.4

187.3

77.8

149.2

M16

17.5

22.6

111.1

90.5

215

2-15/16

18.8

2-21/64

7-3/4

2-57/64

6

3/4

1

41/64

4-11/16

3-7/8
