| F4B-SXV-010、F4B-SXV-012 |
|
上海川代轴承机械有限公司 新闻动态 2025-5-9
|
 |
|
Series |
Shaft Size |
Standard |
|
Part No. |
Description |
|
203 |
1/2 |
130332 |
F4B-SXV-008 |
|
5/8 |
130333 |
F4B-SXV-010 |
|
17mm |
125720 |
F4B-SXV-17M |
|
204 |
3/4
20mm |
131377
125721 |
F4B-SXV-012
F4B-SXV-20M |
|
205 |
7/8 |
131378 |
F4B-SXV-014 |
|
15/16
1 |
131379
131380 |
F4B-SXV-015
F4B-SXV-100 |
|
25mm |
125722 |
F4B-SXV-25M |
|
206 |
1-1/16 |
131381 |
F4B-SXV-101 |
|
1-1/8 |
131382 |
F4B-SXV-102 |
|
1-3/16 |
131383 |
F4B-SXV-103 |
|
1-1/4 |
131384 |
F4B-SXV-104S |
|
30mm |
125723 |
F4B-SXV-30M |
|
207 |
1-1/4 |
131385 |
F4B-SXV-104 |
|
1-5/16 |
131386 |
F4B-SXV-105 |
|
1-3/8 |
131387 |
F4B-SXV-106 |
|
1-7/16 |
131388 |
F4B-SXV-107 |
|
35mm |
125724 |
F4B-SXV-35M |
|
208 |
1-1/2
40mm |
131389
125725 |
F4B-SXV-108
F4B-SXV-40M |
|
209 |
1-11/16 |
130334 |
F4B-SXV-111 |
|
1-3/4 |
130335 |
F4B-SXV-112 |
|
45mm |
125726 |
F4B-SXV-45M |
|
210 |
1-15/16 |
130336 |
F4B-SXV-115 |
|
2 |
130337 |
F4B-SXV-200 |
|
50mm |
125727 |
F4B-SXV-50M |
|
211 |
2 |
130338 |
F4B-SXV-200L |
|
2-3/16 |
130339 |
F4B-SXV-203 |
|
55mm |
125728 |
F4B-SXV-55M |
|

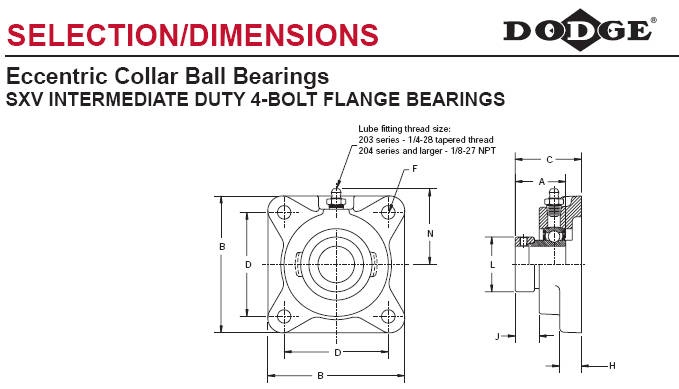

Series |
Shaft Size |
Weight
Lbs kg |
A |
B |
C |
D |
F
Bolt Dia. |
H |
J |
L |
N |
|
203 |
1/2 |
1.1 |
1-1/8 |
3 |
1-3/16 |
2-1/8 |
3/8 |
7/16 |
9/16 |
1-1/8 |
1-11/16 |
|
5/8 |
1.0 |
|
|
|
|
|
|
|
|
|
|
17mm |
0.5 |
28.6 |
76.2 |
30.2 |
54.0 |
M10 |
11.1 |
14.3 |
28.6 |
43.3 |
|
204 |
3/4
20mm |
1.7
0.7 |
1-7/32
31.0 |
3-3/8
85.7 |
1-3/8
34.9 |
2-1/2
63.5 |
3/8
M10 |
7/16
11.1 |
37/64
14.7 |
1-5/16
33.3 |
1-15/16
49.7 |
|
205 |
7/8 |
2.3 |
1-7/32 |
3-3/4 |
1-23/64 |
2-3/4 |
7/16 |
1/2 |
35/64 |
1-1/2 |
2-1/16 |
|
15/16
1 |
2.2
2.0 |
|
|
|
|
|
|
|
|
|
|
25mm |
0.9 |
31.0 |
95.3 |
34.5 |
69.9 |
M10 |
12.7 |
13.9 |
38.1 |
52.4 |
|
206 |
1-1/16 |
3.4 |
1-13/32 |
4-1/4 |
1-17/32 |
3-1/4 |
7/16 |
1/2 |
39/64 |
1-3/4 |
2-3/16 |
|
1-1/8 |
3.3 |
|
|
|
|
|
|
|
|
|
|
1-3/16 |
3.2 |
|
|
|
|
|
|
|
|
|
|
1-1/4 |
3.0 |
|
|
|
|
|
|
|
|
|
|
30mm |
1.4 |
35.7 |
108.0 |
38.9 |
82.6 |
M10 |
12.7 |
15.5 |
44.5 |
55.6 |
|
207 |
1-1/4 |
4.6 |
1-17/32 |
4-3/4 |
1-7/8 |
3-5/8 |
1/2 |
9/16 |
21/32 |
2-1/8 |
2-7/16 |
|
1-5/16 |
4.5 |
|
|
|
|
|
|
|
|
|
|
1-3/8 |
4.3 |
|
|
|
|
|
|
|
|
|
|
1-7/16 |
4.2 |
|
|
|
|
|
|
|
|
|
|
35mm |
1.9 |
38.9 |
120.7 |
47.6 |
92.1 |
M12 |
14.3 |
16.7 |
54.0 |
61.9 |
|
208 |
1-1/2
40mm |
5.0
2.2 |
1-23/32
43.7 |
5-1/8
130.2 |
2-1/16
52.4 |
4
101.6 |
1/2
M12 |
9/16
14.3 |
23/32
18.3 |
2-3/8
60.3 |
2-3/8
60.9 |
|
209 |
1-11/16 |
6.2 |
1-23/32 |
5-3/8 |
2-1/8 |
4-1/8 |
1/2 |
5/8 |
11/16 |
2-1/2 |
2-3/4 |
|
1-3/4 |
6.0 |
|
|
|
|
|
|
|
|
|
|
45mm |
2.7 |
43.7 |
136.5 |
53.9 |
104.8 |
M14 |
15.9 |
17.5 |
63.5 |
70.5 |
|
210 |
1-15/16 |
7.0 |
1-23/32 |
5-5/8 |
2-1/8 |
4-3/8 |
1/2 |
5/8 |
21/32 |
2-3/4 |
2-7/8 |
|
2 |
6.8 |
|
|
|
|
|
|
|
|
|
|
50mm |
3.0 |
43.7 |
142.9 |
53.9 |
111.1 |
M16 |
15.9 |
16.7 |
69.9 |
73.7 |
|
211 |
2 |
10.0 |
1-29/32 |
6-1/2 |
2-5/32 |
5-1/8 |
5/8 |
11/16 |
25/32 |
3 |
3-1/4 |
|
2-3/16 |
9.7 |
|
|
|
|
|
|
|
|
|
|
55mm |
4.3 |
48.4 |
165.1 |
54.8 |
130.2 |
M16 |
17.5 |
19.8 |
76.2 |
83.3 |
|
F4B-SXV-010、F4B-SXV-012现货供应，如有需要请及时联系我们。上海川代轴承机械有限公司同时销售
