WSTU-SCM-30M、WSTU-SCM-112

Series	Shaft Size	Part No.	Description
206	1 25mm	135117 125989	WSTU-SCM-100 WSTU-SCM-25M
207	1-3/16	135118	WSTU-SCM-103
	1-1/4	125360	WSTU-SC-104
	30mm	125990	WSTU-SCM-30M
208	1-7/16 35mm	135116 125991	WSTU-SCM-107 WSTU-SCM-35M
209	1-1/2 40mm	135120 125992	WSTU-SCM-108 WSTU-SCM-40M
210	1-11/16	135121	WSTU-SCM-111
	1-3/4	135182	WSTU-SCM-112
	45mm	125993	WSTU-SCM-45MK

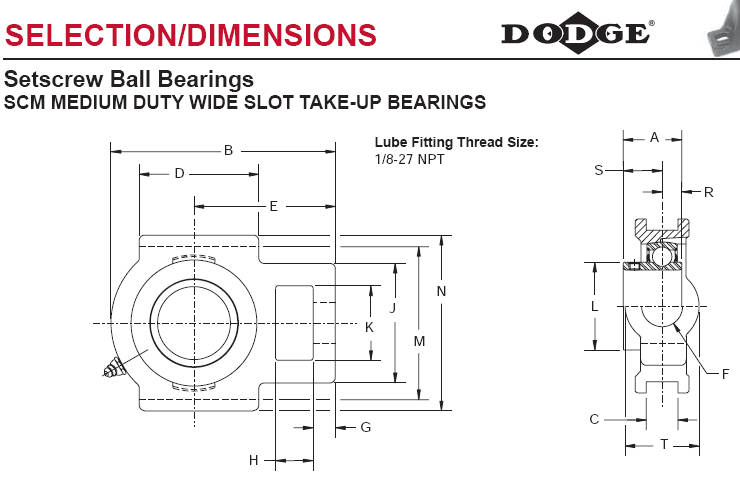

Series	Shaft Size	Weight lbs.kgs.	Take-Up Frame No. Ref.	A	B	C*	D	E	F Screw Dia.	G
206	1 25mm	2.9 1.4	WS308	1-25/64 35.3	4-3/8 111.1	17/32 13.5	2-1/4 57.2	2-3/4 69.9	3/4 19.1	3/8 9.5
207	1-3/16	3.9	WS308	1-17/32	4-7/8	17/32	2-1/2	3-1/16	3/4	1/2
	1-1/4	3.8
	30mm	1.7		38.9	123.8	13.5	63.5	77.8	19.1	12.7
208	1-7/16 35mm	6.1 2.9	WS400	1-11/16 42.9	5-11/16 144.5	11/16 17.5	3-1/4 82.6	3-1/2 88.9	1 25.40	5/8 15.9
209	1-1/2 40mm	6.0 2.8	WS400	1-23/32 43.7	5-5/8 142.9	11/16 17.5	3-1/4 82.6	3-7/16 87.3	1 25.40	5/8 15.9
210	1-11/16	6.5	WS400	1-3/4	5-13/16	11/16	3-3/8	3-9/16	1	5/8
	1-3/4	6.4
	45mm	3.0		44.5	147.6	17.5	85.7	90.5	25.40	15.9
