| WSTU-SC-110L、WSTU-SC-113 |
|
上海川代轴承机械有限公司 新闻动态 2025-8-2
|
 |
|
Series |
Shaft
Size |
Standard |
No Lube/Sealed for Life (-NL) |
|
Part No. |
Description |
Part No. |
Description |
|
209 |
1-5/8 |
125151 |
WSTU-SC-110L |
@ |
WSTU-SC-110L-NL |
|
1-11/16 |
125115 |
WSTU-SC-111 |
@ |
WSTU-SC-111-NL |
|
1-3/4 |
125362 |
WSTU-SC-112 |
@ |
WSTU-SC-112-NL |
|
1-13/16 |
125121 |
WSTU-SC-113 |
@ |
WSTU-SC-113-NL |
|
45mm |
125915 |
WSTU-SC-45M |
@ |
WSTU-SC-45M-NL |
|
210 |
1-15/16 |
125116 |
WSTU-SC-115 |
125071 |
WSTU-SC-115-NL |
|
2 |
125363 |
WSTU-SC-200 |
062691 |
WSTU-SC-200-NL |
|
50mm |
125916 |
WSTU-SC-50M |
068374 |
WSTU-SC-50M-NL |
|
211 |
2 |
135183 |
WSTU-SCM-200 |
058705 |
WSTU-SCM-200-NL |
|
2-3/16
2-1/4 |
125117
125364 |
WSTU-SC-203
WSTU-SC-204 |
@
@ |
WSTU-SC-203-NL
WSTU-SC-204-NL |
|
55mm |
125917 |
WSTU-SC-55M |
@ |
WSTU-SC-55M-NL |
|
212 |
2-1/4 |
135184 |
WSTU-SCM-204 |
@ |
WSTU-SCM-204-NL |
|
2-7/16 |
125118 |
WSTU-SC-207 |
@ |
WSTU-SC-207-NL |
|
60mm |
125918 |
WSTU-SC-60M |
@ |
WSTU-SC-60M-NL |
|
214 |
2-1/2 |
135185 |
WSTU-SCM-208 |
@ |
WSTU-SCM-208-NL |
|
2-11/16 |
064704 |
WSTU-SC-211 |
@ |
WSTU-SC-211-NL |
|
70mm |
062975 |
WSTU-SC-70M |
@ |
WSTU-SC-70M-NL |
|
215 |
2-15/16
75mm |
125119
125919 |
WSTU-SC-215
WSTU-SC-75M |
@
@ |
WSTU-SC-215-NL
WSTU-SC-75M-NL |
|

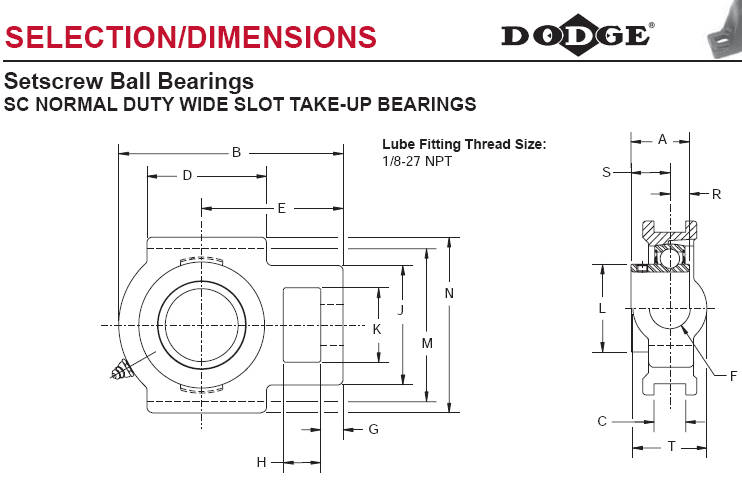

Series |
Shaft Size |
Weight
Lbs kg |
Take-Up
Frame Size |
A |
B |
C* |
D |
E |
F
Screw Dia. |
G |
|
209 |
1-5/8 |
6.1 |
WS400 |
1-23/32 |
5-5/8 |
11/16 |
3-1/4 |
3-7/16 |
1 |
5/8 |
|
1-11/16 |
6.0 |
|
|
|
|
|
|
|
|
1-3/4 |
5.9 |
|
|
|
|
|
|
|
|
1-13/16 |
5.8 |
|
|
|
|
|
|
|
|
45mm |
2.7 |
43.7 |
142.9 |
17.5 |
82.6 |
87.3 |
25.4 |
15.9 |
|
210 |
1-15/16 |
6.4 |
WS400 |
1-3/4 |
5-13/16 |
11/16 |
3-3/8 |
3-9/16 |
1 |
5/8 |
|
2 |
6.2 |
|
|
|
|
|
|
|
|
50mm |
2.9 |
44.5 |
147.6 |
17.5 |
85.7 |
90.5 |
25.4 |
15.9 |
|
211 |
2 |
10.1 |
WS502 |
1-27/32 |
6-11/16 |
1-1/16 |
3-3/4 |
4-3/16 |
1-1/4 |
3/4 |
|
2-3/16
2-1/4 |
10.0
9.8 |
|
|
|
|
|
|
|
|
55mm |
4.5 |
46.8 |
169.9 |
27.0 |
95.3 |
106.4 |
31.8 |
19.1 |
|
212 |
2-1/4 |
11.2 |
WS502 |
1-63/64 |
7-1/2 |
1-1/16 |
4 |
4-11/16 |
1-1/4 |
3/4 |
|
2-7/16 |
10.8 |
|
|
|
|
|
|
|
|
60mm |
4.9 |
50.4 |
190.5 |
27.0 |
101.6 |
119.1 |
31.8 |
19.1 |
|
214 |
2-1/2 |
18.0 |
WS515 |
2-15/64 |
8 -9/16 |
1-1/16 |
4-3/4 |
5 -3/8 |
1-1/2 |
13/16 |
|
2-11/16 |
17.8 |
|
|
|
|
|
|
|
|
70mm |
8.0 |
56.8 |
217.5 |
27.0 |
120.7 |
136.5 |
38.1 |
20.6 |
|
215 |
2-15/16
75mm |
18.9
8.6 |
WS515 |
2-9/32
57.9 |
9-1/8
231.8 |
1-1/16
27.0 |
4-3/4
120.7 |
5-1/2
139.7 |
1-1/2
38.1 |
13/16
20.6 |
|
